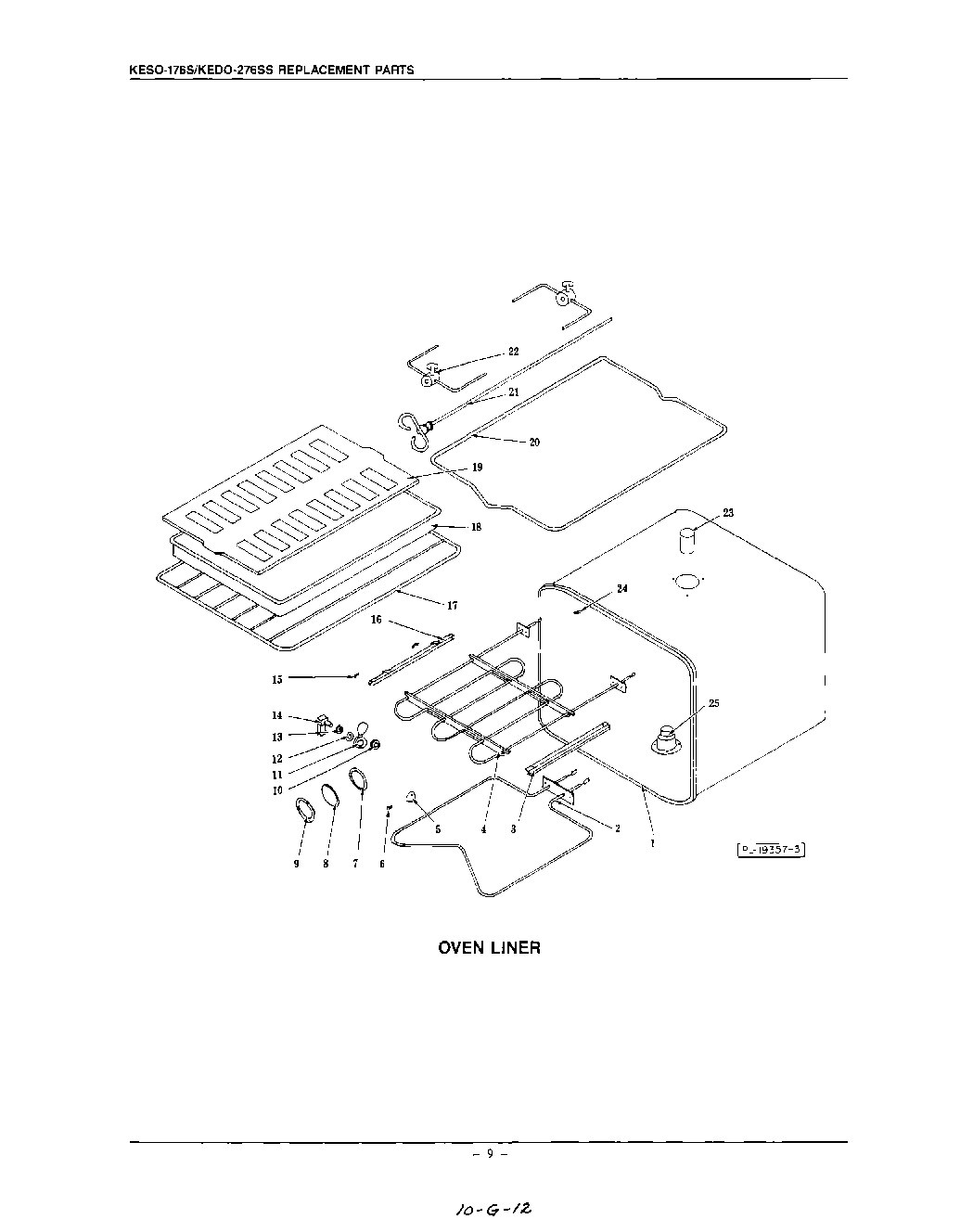

KEDO276SS 07 – OVEN LINER

Products

Position	Product
1	Oven Liner, Single or Upper Oven KESO-175, KEDO-275
2	Bake Element
3	Broiler Element Support - Right
4	Broiler Element
5	Rotisserie Cover KESO-145/175, KEDO-245/275
6	Shoulder Screw KESO-145/175, KEDO-245/275
7	Light Lens Gasket
8	Light Lens
9	Light Lens Retainer
10	Nut, Meat Probe KESO-145/175, KEDO-245/275
11	Probe Jack Cover KESO-145/175, KEDO-245/275
12	Washer KESO-145/175, KEDO-245/275
13	Nut, Hex Jam KESO-145/175, KEDO-245/275
14	Meat Probe Jack KESO-145/175, KEDO-245/275
15	Thermostat Bulb Clip
16	Broiler Element Support - Left
17	Oven Rack KESO-170/175, KEDO-270/275
18	Broiler Pan
19	Broiler Pan Grid
20	Rotisserie Rack KESO-175, KEDO-275
21	Rotisserie Spear KESO-145/175, KEDO-245/275
22	Rotisserie Skewer KESO-14
23	WPL CC31859
24	WPL CC32104
25	Gasket
25	WPL CC70857
