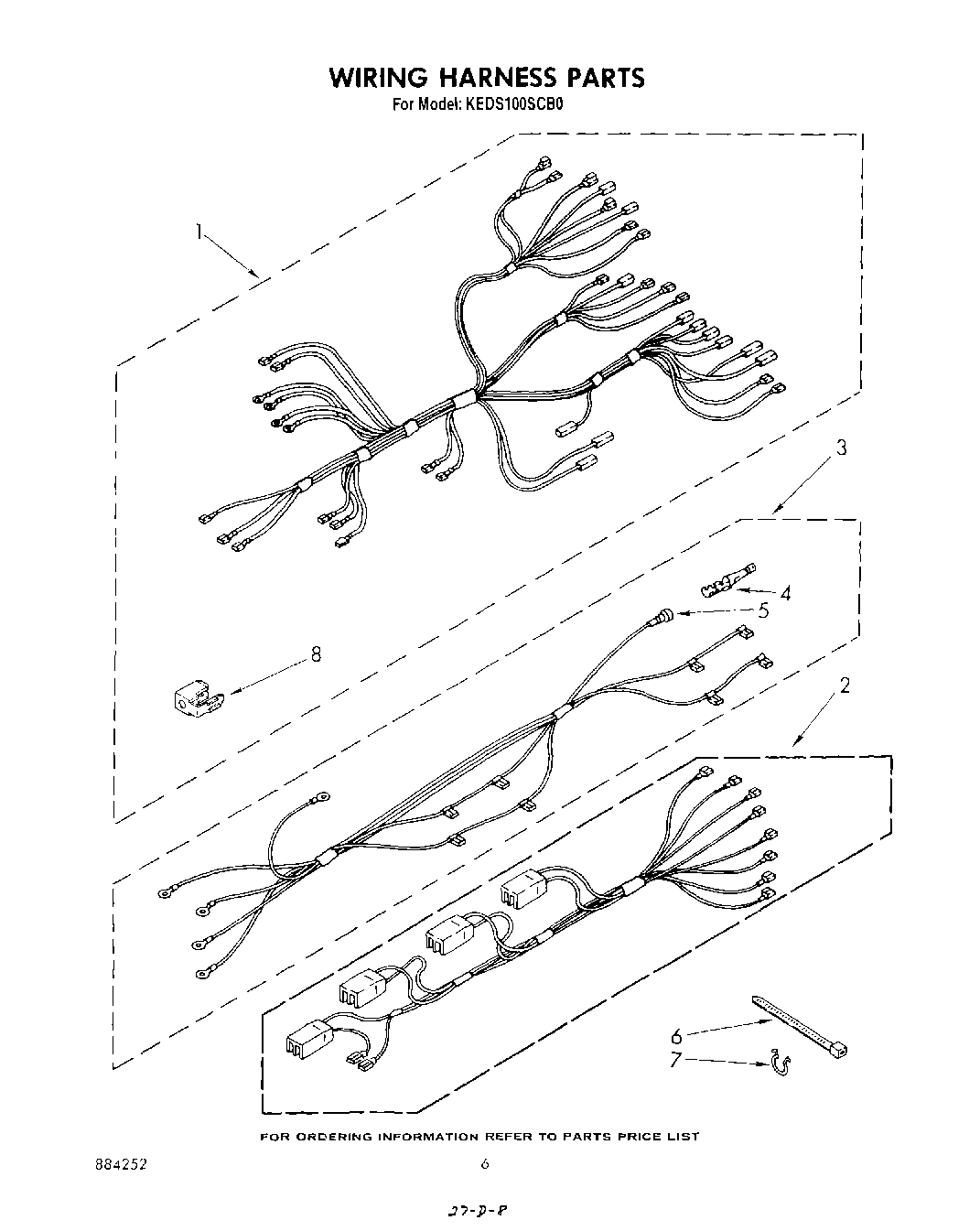

KEDS100SCB0 05 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

Position	Product
	List, Repair Parts
	Tech Sheet
	Guide, Use & Care
	Instructions, Installation
	Book, Cooking Guide
1	Harness, Wire (Main)
2	Harness, Wire (Surface Unit)
3	Harness, Wire (Infinite Switch)
4	WP596797 Whirlpool Terminal
5	Plug
6	WPW10339879 Whirlpool Wire Tie
7	16515 Whirlpool Clip
8	Rotisserie Kit
8	Grease
8	Wire, 25“ Roll (White 14 GA.)
8	Wire, 25` Roll (Red 14 Ga.)
8	Wire, 25` Roll (Black 14 Ga.)
8	FOIL, ALUMINUM OVEN (18“ X 25 )
8	WPW10208653 Whirlpool Insulation
8	Adapter, Terminal
8	1
8	242831 Whirlpool Oven Wire
8	Wire (14 Ga. 150 c Blue)
8	Wire (14 Ga. 150 c Brown)
8	Wire (14 Ga. 150 c Green)
8	Wire (14 Ga. 150 c Orange)
8	Touch-Up Oven (1 Oz.)
8	Wire (12 Ga. 150 c Black)
8	18 Ga. 80~c Rating (Red)
8	Wire (14 Ga. 200 c Brown)
8	Wire (14 Ga. 150 c Yellow)
