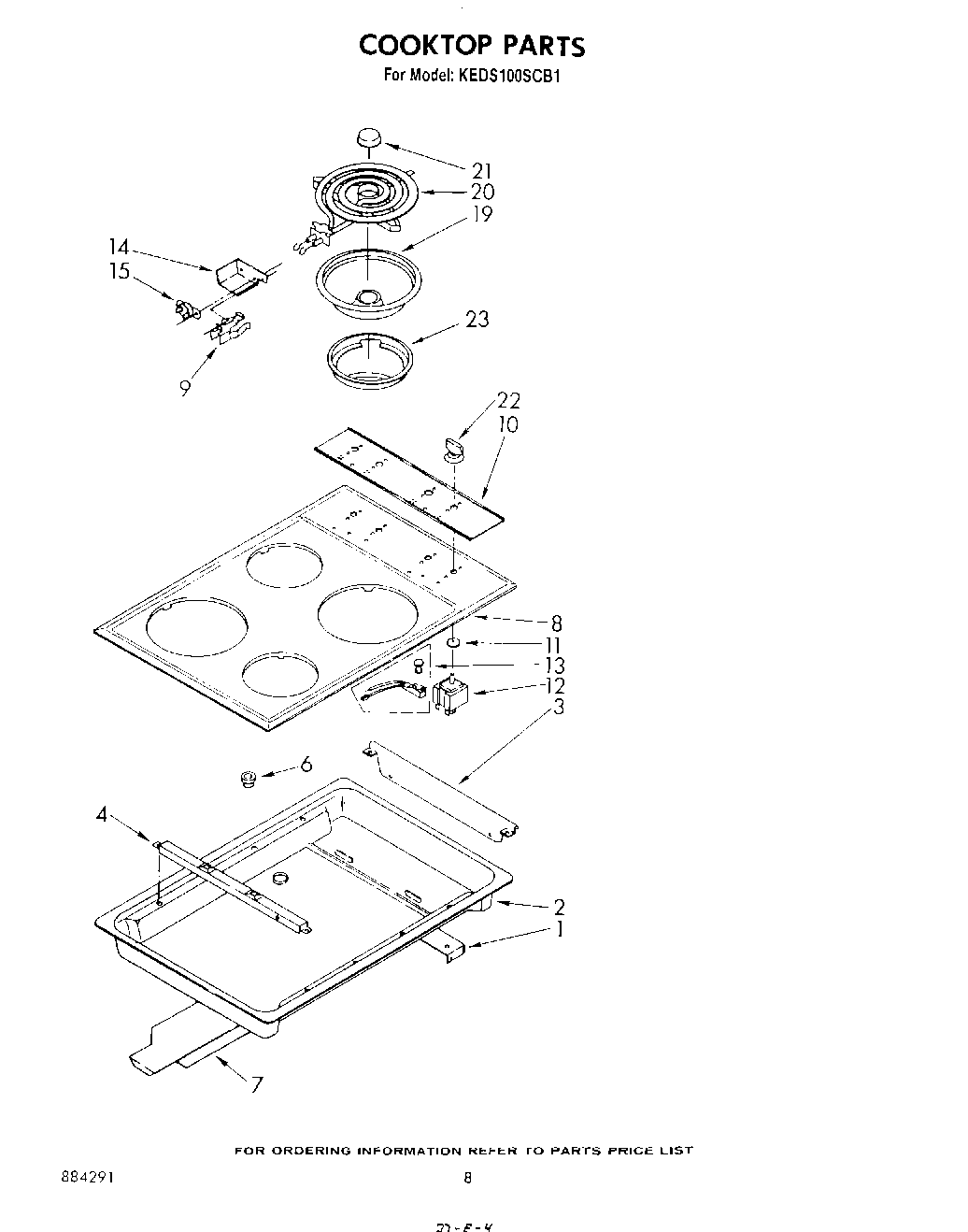

KEDS100SCB1 06 – COOK TOP

KEDS100SCB1 06 – COOK TOP

Written by

in

KEDS100SCB1 06 – COOK TOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Support, Box
2Burner Box
3Shield, Switch
4Support, Cooktop
6WPL 258109
7Cover, Top Rear
7WP488729 Whirlpool Refrigerator Door Screw
8WPL 312318
8Screw
8Cooktop, Brushed Chrome
9WP4332752 Whirlpool Clip
10Control Panel (Tape, Foam)
10Control Panel (Black)
11Seal, Switch Shaft (2)
12W10900107 Whirlpool Oven Surface Element Switch
12WP486579 Whirlpool Air Conditioner Screw
13Indicator Light
14Bracket, Sensor
15WP313808 Whirlpool Screw
15Thermostat
19W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22Knob, Control (4)
23W10858781 Whirlpool Trim Ring
23W10854470 Whirlpool Trim Ring
