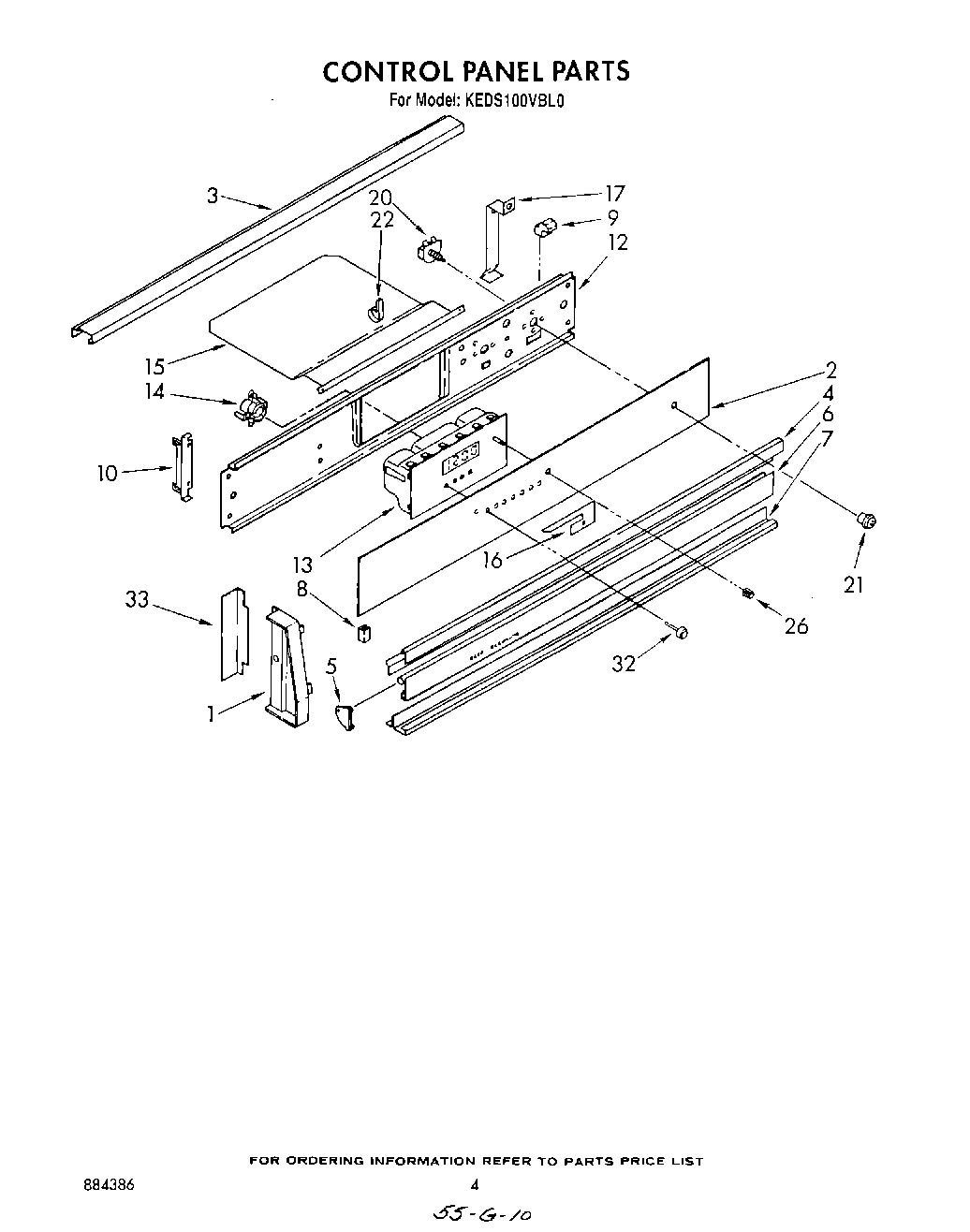

KEDS100VAL0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap. L.H. (White)
1	End Cap. L.H. (Black)
1	Screw (2)
1	End Cap (Washer)
1	End Cap. L.H. (Black)
1	End Cap, L.H. (White)
1	End Cap, L.H. (Almond)
1	End Cap, L.H. (Almond)
2	Glass, Panel (White)
2	Glass, Control Panel (Black)
2	Glass, Control Panel (Almond)
3	Rail, Top (Bright Aluminum)
3	Rail, Top (Black)
4	Trim, Center (Bright Aluminum)
4	Trim, Center (Black)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent (Semi-Bright Aluminum)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
12	SCREW
12	Bracket, Control
13	Screw
13	Electronic Range Control
14	WP313808 Whirlpool Screw
14	Thermostat, Oven
15	Shield, Heat
16	Shield, Air
17	WPL 309080
17	Bracket, Control
20	Switch, Oven Light
20	WP965173 Whirlpool Dishwasher Screw
20	White Model
20	Lockwasher
21	Bezel, Switch (Almond)
21	Bezel, Switch (White - Almond)
21	Bezel Switch (1)
22	Screw (2)
22	WP308605 Whirlpool Refrigerator Clamp
26	Knob, Timer (1)
32	But
33	Trim, End Cap (Black)
33	Trim, End Cap (White)
33	Trim, End Cap (Almond)
33	WPL 314246
