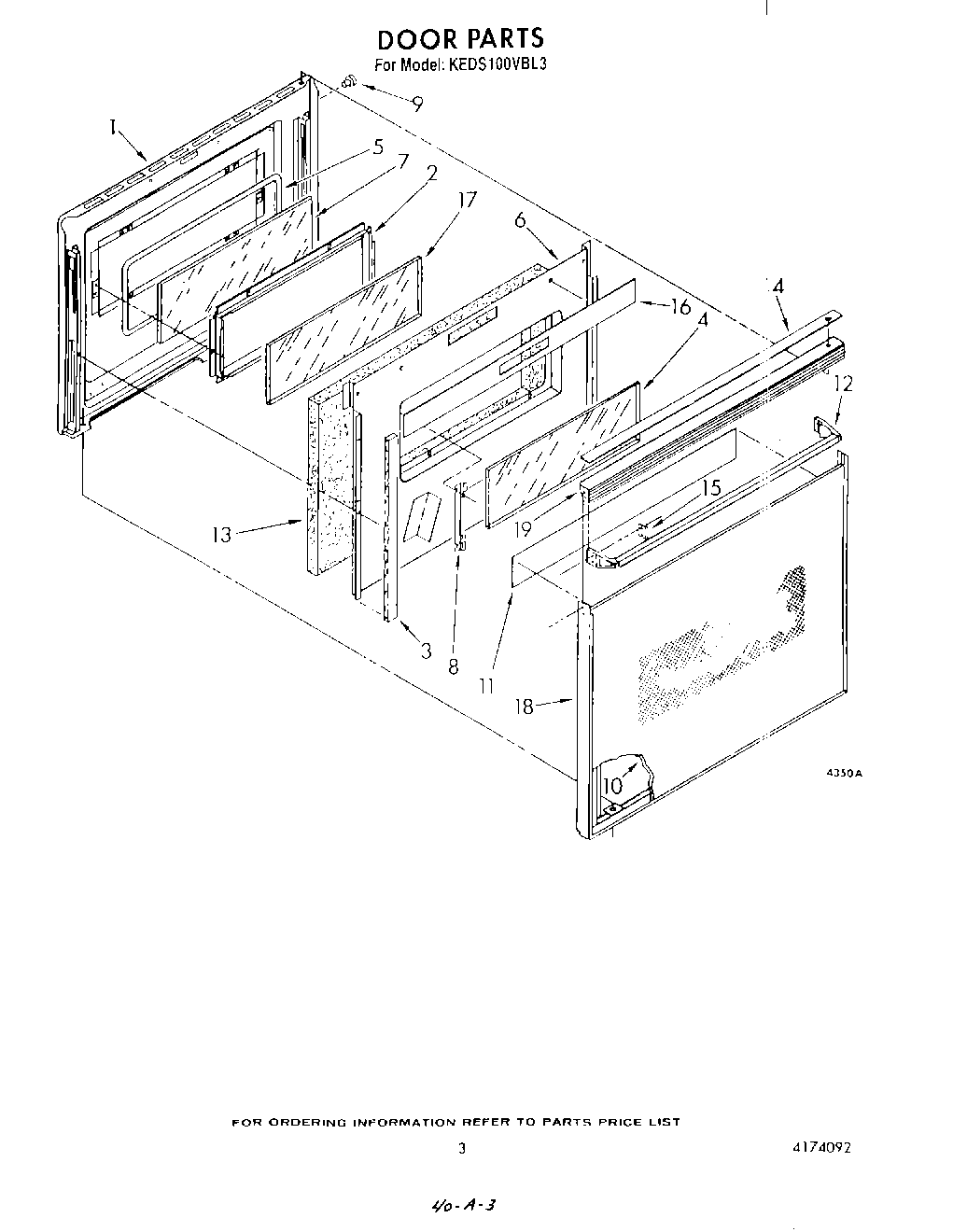

KEDS100VAL3 03 – DOOR

Products

PositionProduct
1Liner, Door
2Frame, Inner
3Screw
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (White)
10Glass, Panel (White Model)
10Glass, Panel (Black Model)
11Foil, Door
12Handle, Oven Door (Almond)
12Handle, Oven Door (White)
12Handle, Oven Door
13Insulation, Door
14Cap, Top
15Clip (2)
16Screw,
16Sheild, Door
18Frame (White)
18Frame (Almond)
18Frame, Door
19Top, Door Frame
19Back Splash (Screw (4) 10AB x 1/2“)
19WP308685 Whirlpool Microwave Screw
19WP355515 Whirlpool Screw
19Door Top (Panoramic Grey)
