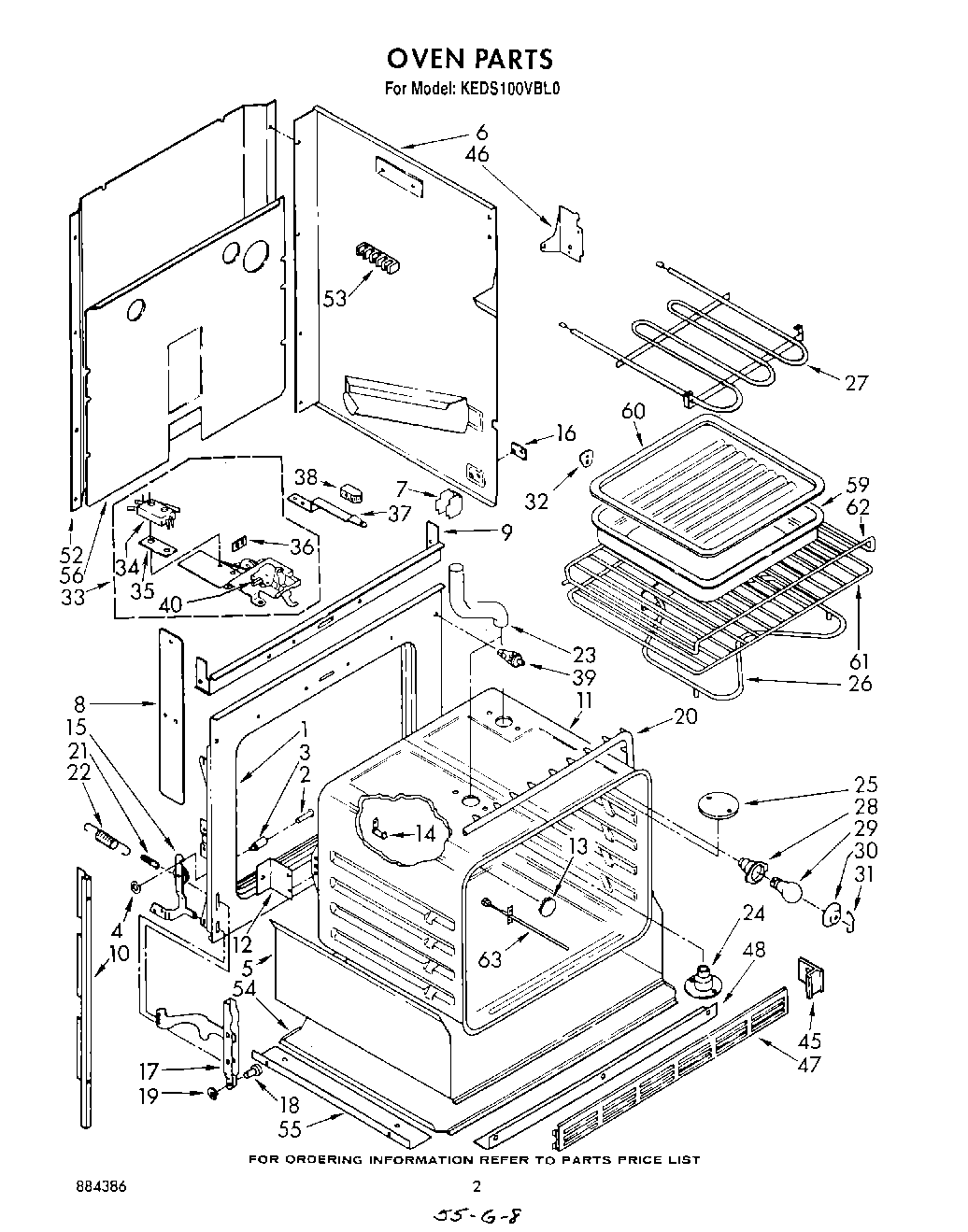

KEDS100VBL0 02 – OVEN

KEDS100VBL0 02 – OVEN

KEDS100VBL0 02 – OVEN

Products

PositionProduct
1Frame, Front
2Pin, Hinge Ear (2)
3Snubber, Door (2)
4Pushnut (2)
5Insulation Tray
6Side Wrapper (Left Side)
6Side Wrapper (Right Side)
7Support, Side Wrapper (4)
8Baffle, Insulation
8Screw (2)
9Baffle, Top Insulation
10Side Trim (Right Side)
10Side Trim (Left Side)
10WP313808 Whirlpool Screw
11Right All 21020E Models
12Bracket, Oven Mounting (2)
13Plug Button
1498005642 Whirlpool Clip
15Hinge Ear, L.H.
15Hinge Ear, R.H.
16Plate, Side Panel (2)
16WP308544 Whirlpool Screw
17Channel Arm (2)
18WP307986 Whirlpool Hinge Pin
19Retainer Ring (2)
20Seal, Door
21WP308125 Whirlpool Microwave Range/Cooktop Anchor
22WP308126 Whirlpool Door Spring
23SCREW
23Tube, Vent Extension
24Eliminator, Smoke
26Screw, 10-32 x 5/8 (4)
26ELMNT-BAKE
27WPL 312318
27WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28Socket, Oven Light
29RANGE ONLY 40W 120V APPL BULB
30Cover, Light
31Retainer, Light
32WPL 311982
33Latch Assembly
33Screw (3)
34Safety Switch
34Screw
35Insulator, Switch
36Screw
36Shield, Latch
37Latch, Handle
37Screw
38Knob, Latch Handle
38Screw, 80 x 5/16
39Switch, Door
40Latch Mechanism
40Screw, 10A x 1/2 (2) (Black)
45WPL 3149428
45WPL 3149430
45WPL 3149427
45WPL 3149431
45WPL 3149426
45WP355515 Whirlpool Screw
45WPL 3149429
46Cover, Side (Left Hand)
46Cover, Side (Right Hand)
46WP488729 Whirlpool Refrigerator Door Screw
47Back Splash (Screw (4) 10AB x 1/2“)
47WPL 3149446
47Clip (2)
47WPL 3149447
47WPL 3149448
48WPL 312006
48WPL 3149458
52Panel, Back (2)
53WP112432 Whirlpool Nut Assembly
53WP8203546 Whirlpool Terminal Block
53Screw (10-12 x .875)
54WPL 310458
55Angle, Support (2)
56Cover, Rear
604396923 Whirlpool Broil Pan Set Gray Porcelain
61WPL 308173
62WPL 308172
63WPL 3149328
63WPL 310434
63WPL 310433
63Sensor, Heat
