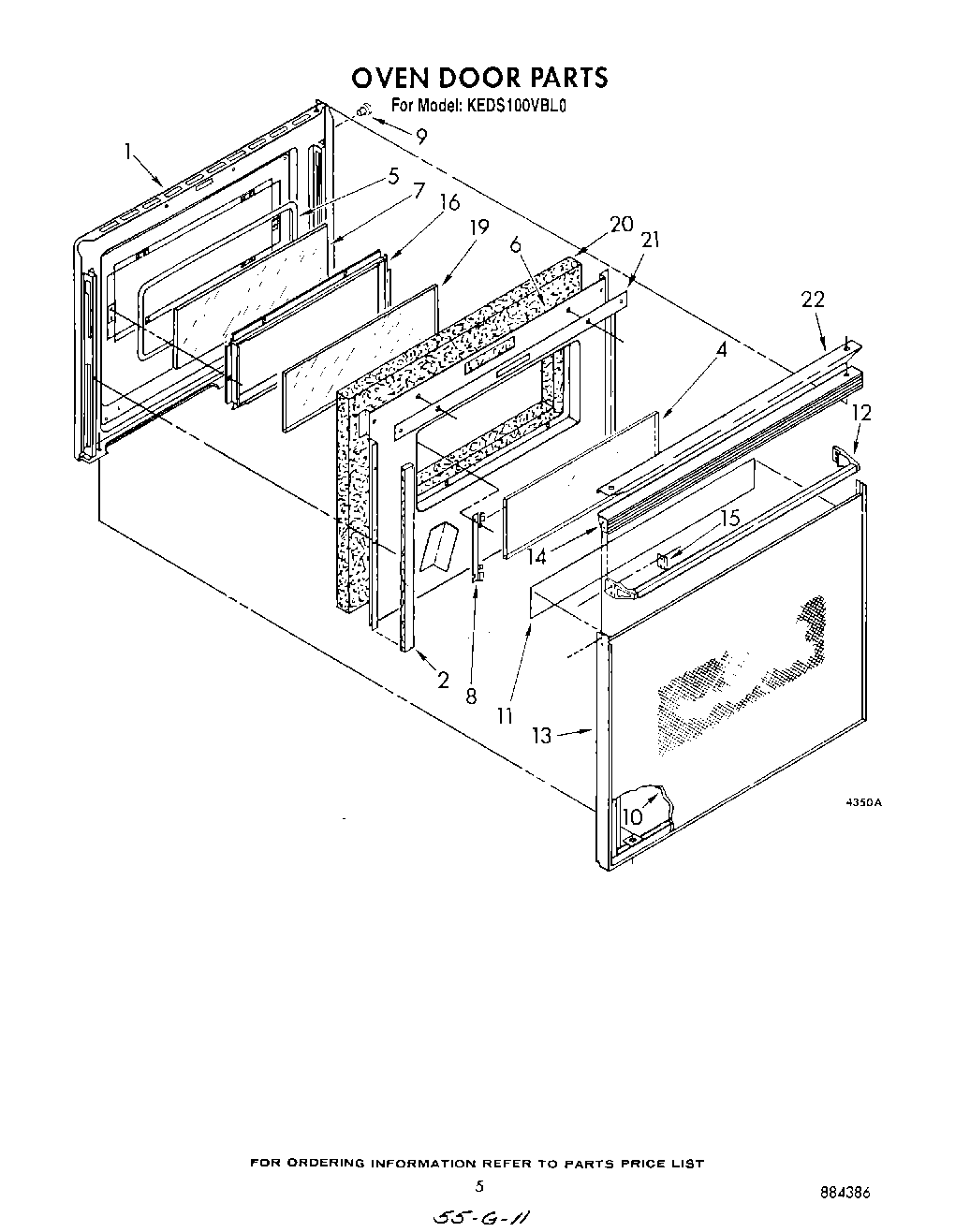

KEDS100VBL0 04 – OVEN DOOR
Written by
in
KEDS100VBL0 04 – OVEN DOOR
Products
Position
Product
1
Screw, 10A x 1/2 (2) (Black)
1
Screw
1
Liner, Door
2
Seal, Flange (2)
4
Glass, Reflective
5
Seal, Door
6
Retainer,
7
WP3169203 Whirlpool Door Glass
8
Retainer, Glass (2)
9
Bumper (4)
10
Glass, Panel (Black Model)
10
Glass, Panel (Almond)
10
Glass, Panel (White)
11
Foil, Door
12
Handle, Oven Door (White)
12
Handle, Oven Door
12
Handle, Oven Door (Almond)
13
Frame (Almond)
13
Frame (White)
13
Frame, Door
14
Door Top (Panoramic Grey)
14
Top, Door Frame
14
Back Splash (Screw (4) 10AB x 1/2“)
15
WP355515 Whirlpool Screw
15
Clip, Mtg (2)
16
Screw
16
Frame, Inner
20
Insulation, Door
21
Sheild, Door
21
Screw,
22
Cap, Top
22
WP308685 Whirlpool Microwave Screw
←
