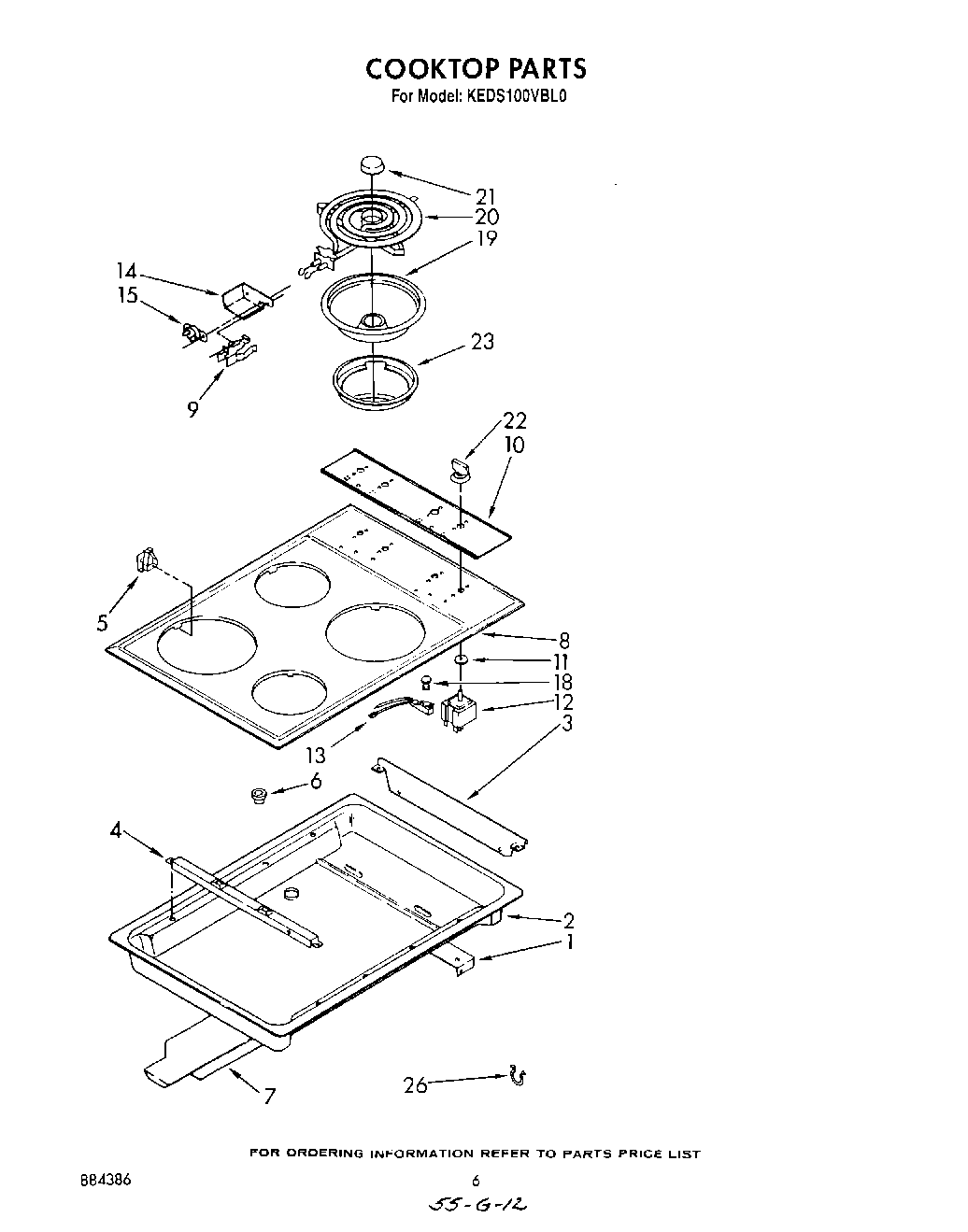

KEDS100VBL0 05 – COOK TOP , LIT/OPTIONAL

Products

Position	Product
	Wire (14 Ga. 150 c Yellow)
	console
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL LIT3147430
	Rotisserie Kit
	Grease
	WPL LIT3148391
	Cookbook
	WPL LIT884386
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Instructions, Installation
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Touch-Up Oven (1 Oz.)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
1	Support, Box
2	Box, Burner
3	Shield, Switch
3	WP488729 Whirlpool Refrigerator Door Screw
4	Support, Cooktop
5	814103 Whirlpool Clip
6	WPL 258109
7	Cover, Top Rear
8	Cooktop (Almond)
8	Cooktop (White)
8	WPL 312318
8	Cooktop (Black)
9	WP4332752 Whirlpool Clip
10	Panel, Control (White)
10	Control Panel (Black)
10	Panel, Control (Almond)
10	Control Panel (Tape, Foam)
11	Seal, Switch Shaft (2)
12	WP486579 Whirlpool Air Conditioner Screw
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator Light
14	Bracket, Sensor
15	Thermostat
15	WP313808 Whirlpool Screw
18	Lens, Light
19	Reflector Pan (6“ (2))
19	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
20	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	Medallion (4)
22	Knob, Control (4)
23	W10858781 Whirlpool Trim Ring
23	W10854470 Whirlpool Trim Ring
26	16515 Whirlpool Clip
