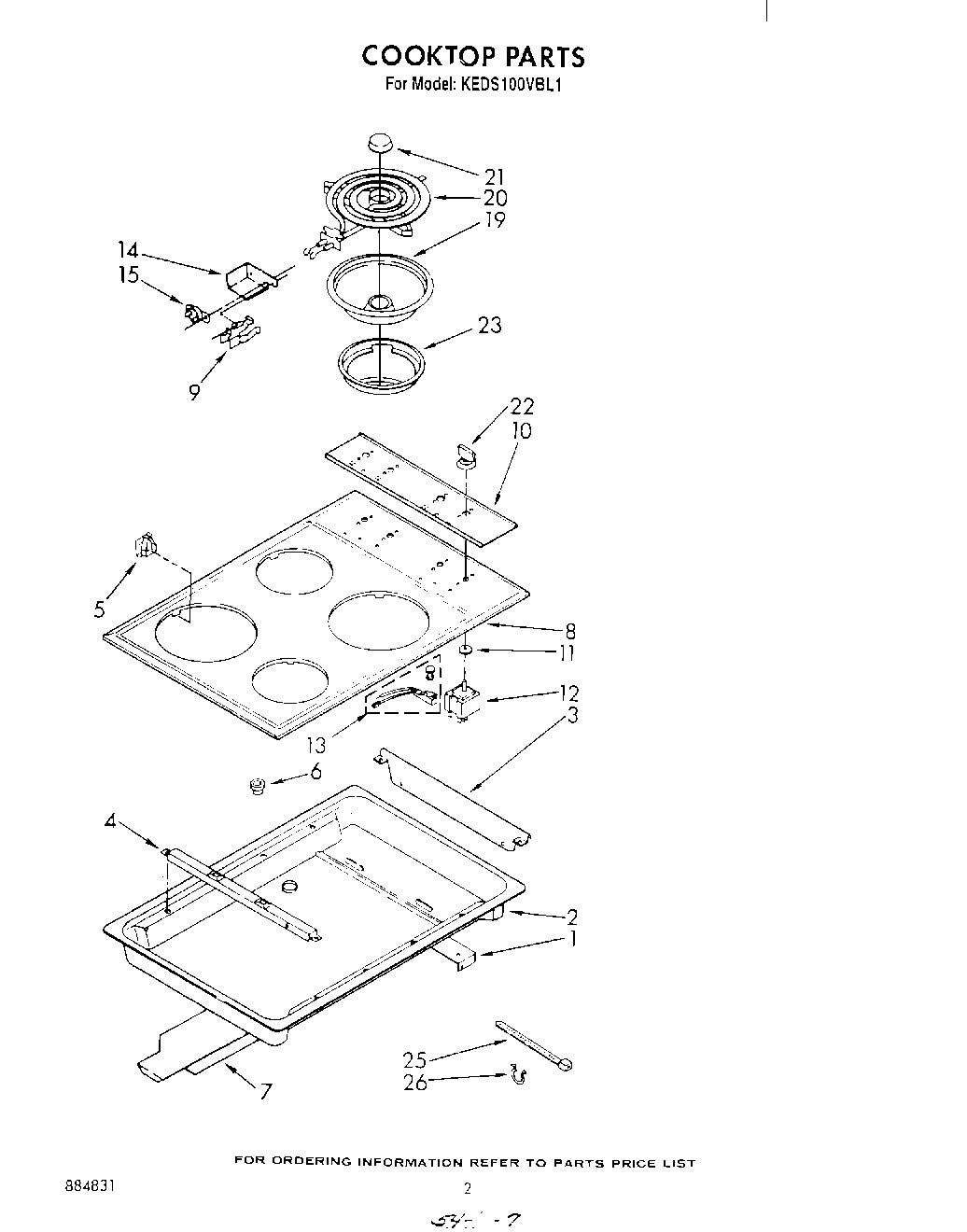

KEDS100VBL1 02 – COOK TOPadmin2025-04-26T09:36:18+00:00KEDS100VBL1 02 – COOK TOP
Products
| Position | Product |
|---|
| 1 | Support, Box |
| 2 | Box, Burner |
| 3 | Shield, Switch |
| 4 | Support, Cooktop |
| 5 | 814103 Whirlpool Clip |
| 5 | WP487887 Whirlpool Refrigerator Screw |
| 5 | Nut (4) |
| 6 | WPL 258109 |
| 7 | WP488729 Whirlpool Refrigerator Door Screw |
| 7 | Cover, Top Rear |
| 8 | Cooktop (White) |
| 8 | Cooktop (Almond) |
| 8 | Cooktop (Black) |
| 8 | WPL 312318 |
| 9 | BURNER RECEPTACLE KIT |
| 10 | Control Panel (Tape, Foam) |
| 10 | Control Panel (Black) |
| 10 | Panel, Control (White) |
| 10 | Panel, Control (Almond) |
| 11 | Seal, Switch Shaft (2) |
| 12 | W10900107 Whirlpool Oven Surface Element Switch |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 13 | Indicator Light |
| 14 | Bracket, Sensor |
| 15 | Thermostat |
| 15 | WP313808 Whirlpool Screw |
| 19 | W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set |
| 20 | WP660533 Whirlpool Oven 8" Surface Element |
| 20 | WP660532 Whirlpool Oven Surface Element |
| 21 | Medallion (4) |
| 22 | Knob, Control (4) |
| 23 | W10854470 Whirlpool Trim Ring |
| 23 | W10858781 Whirlpool Trim Ring |
| 25 | WPW10339879 Whirlpool Wire Tie |
| 26 | 16515 Whirlpool Clip |
