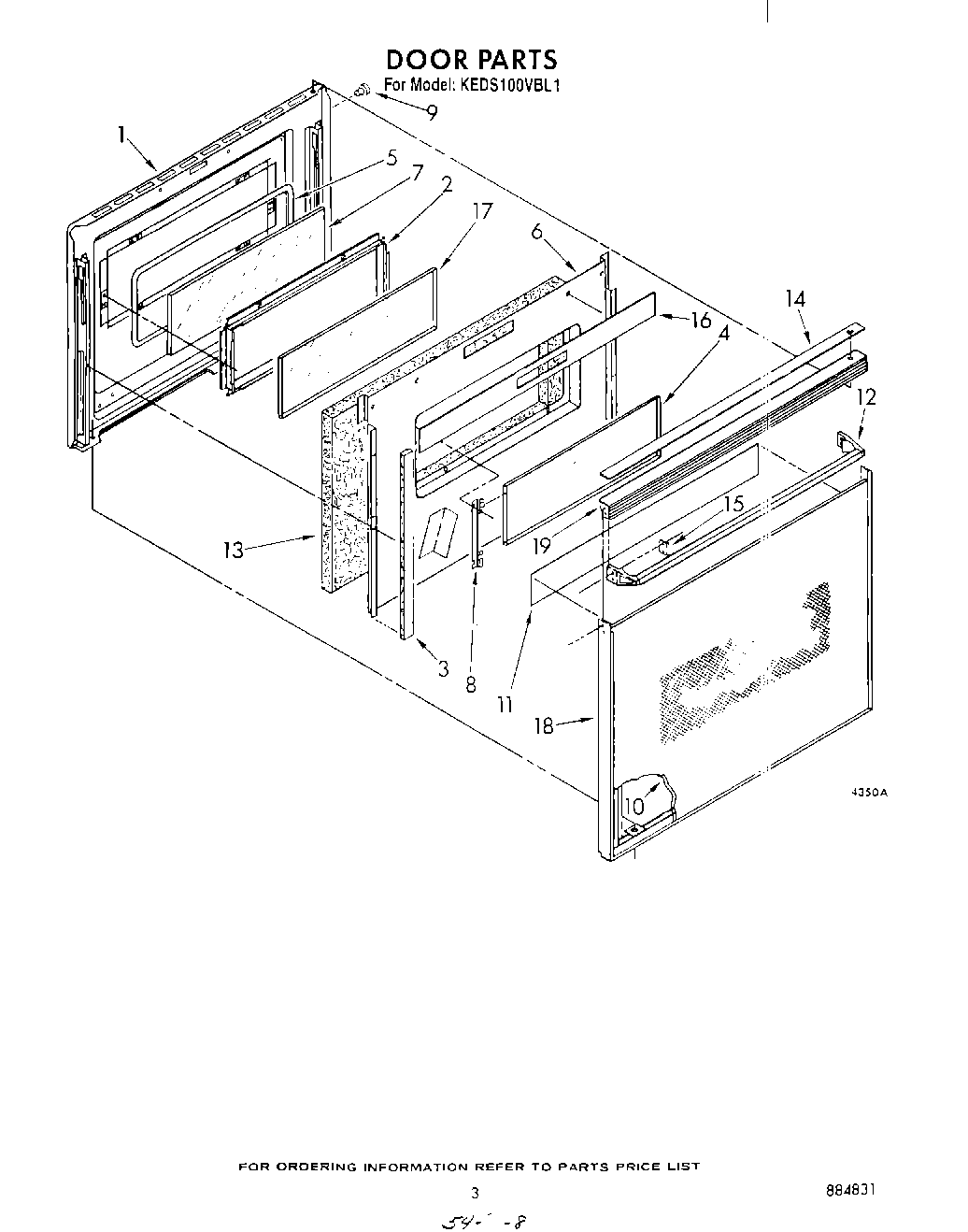

KEDS100VBL1 03 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (Almond)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door (Almond)
12	Handle, Oven Door (White)
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
13	Insulation, Door
14	Cap, Top
15	Clip (2)
16	Sheild, Door
18	Frame (Almond)
18	Frame (White)
18	Frame, Door
19	Back Splash (Screw (4) 10AB x 1/2“)
19	Door Top (Panoramic Grey)
19	Top, Door Frame
19	WP308685 Whirlpool Microwave Screw
