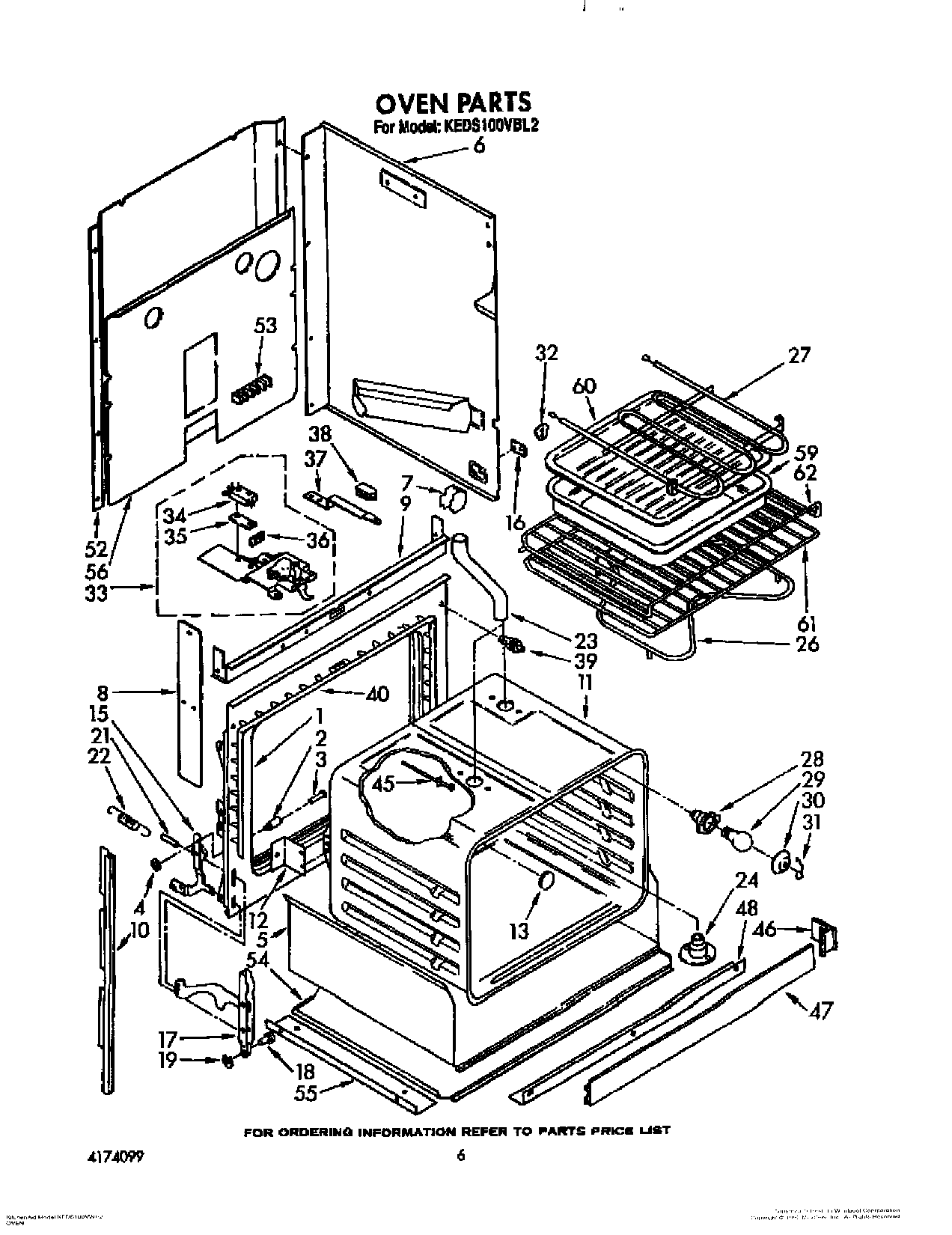

KEDS100VBL2 05 – OVEN, LIT/OPTIONAL

KEDS100VBL2 05 – OVEN, LIT/OPTIONAL

Written by

in

KEDS100VBL2 05 – OVEN, LIT/OPTIONAL

Products

Position	Product
	Cookbook
	Screw (2)
	WPL LIT4174099
	Screw (10-12 x .875)
	WPL LIT3147392
	WPL LIT3147430
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Right Side)
6	Side Wrapper (Left Side)
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	Plug Button
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
24	Eliminator, Smoke
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light (Alt.)
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 311982
33	WP488729 Whirlpool Refrigerator Door Screw
33	Latch Assembly
33	Screw (3)
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	Seal, Door
45	Sensor, Heat
46	WPL 3149428
46	WPL 3149426
46	WPL 3149430
46	WPL 3149431
46	WPL 3149427
46	WPL 3149429
46	WP355515 Whirlpool Screw
47	Clip (2)
47	WPL 3149446
47	WPL 3149448
47	WPL 3149447
48	WPL 3149458
48	Back Splash (Screw (4) 10AB x 1/2“)
52	Panel, Back (2)
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 3149328
62	WPL 310434
62	WPL 310433
62	WPL 308172
