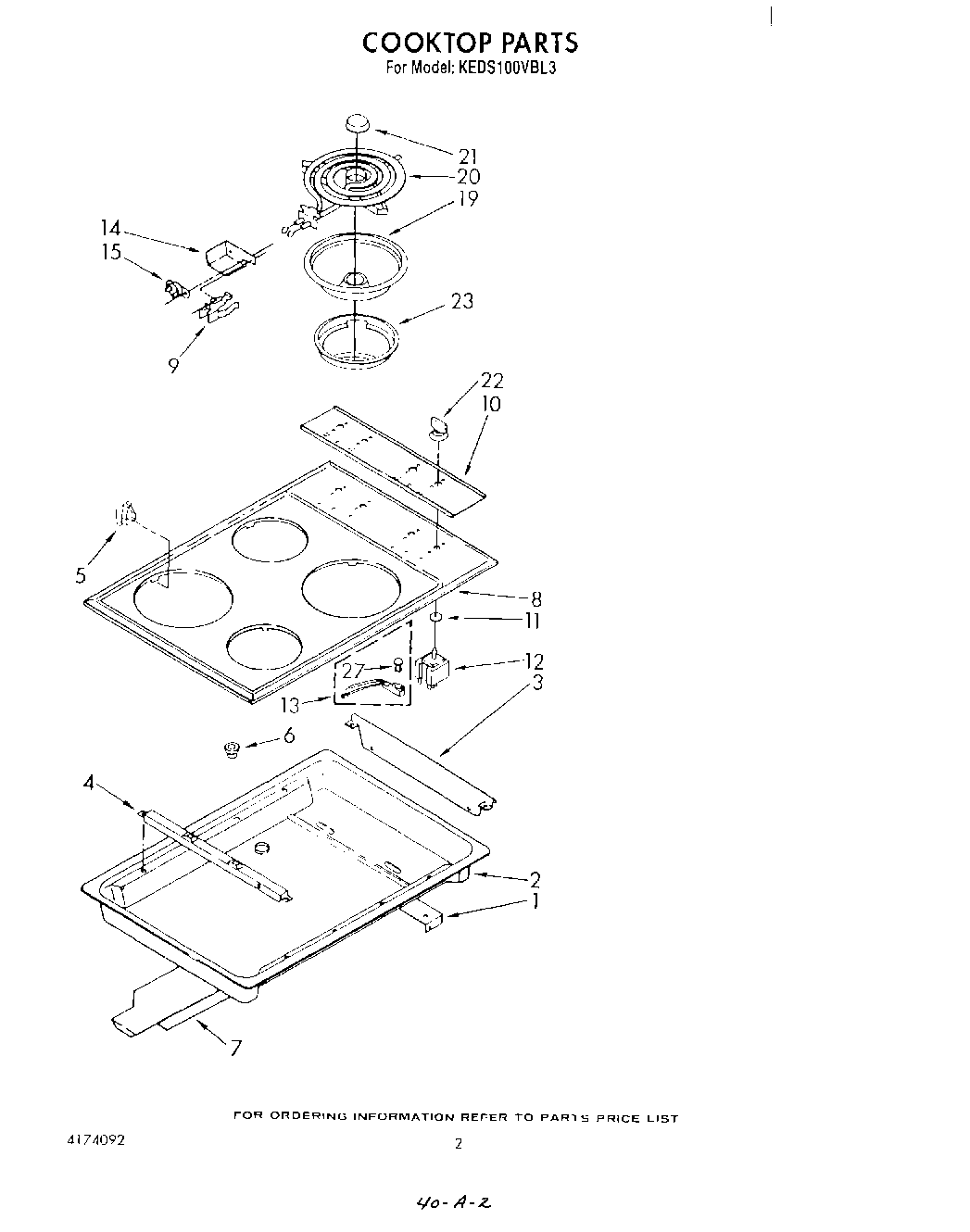

KEDS100VBL3 02 – COOKTOP

Products

Position	Product
1	Support, Box
2	Box, Burner
3	Shield, Switch
4	Support, Cooktop
5	814103 Whirlpool Clip
6	WPL 258109
7	WP488729 Whirlpool Refrigerator Door Screw
7	Cover, Top Rear
8	Cooktop (White)
8	Cooktop (Black)
8	WPL 312318
8	Cooktop (Almond)
9	BURNER RECEPTACLE KIT
10	Control Panel (Tape, Foam)
10	Control Panel (Black)
10	Panel, Control (White)
10	Panel, Control (Almond)
11	Seal, Switch Shaft (2)
12	W10900107 Whirlpool Oven Surface Element Switch
12	WP486579 Whirlpool Air Conditioner Screw
13	Indicator Light
14	Bracket, Sensor
15	WP313808 Whirlpool Screw
15	Thermostat
19	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	Reflector Pan (6“ (2))
20	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	Medallion (4)
22	Knob, Control (4)
23	W10854470 Whirlpool Trim Ring
23	W10858781 Whirlpool Trim Ring
26	16515 Whirlpool Clip
27	Lens, Light
