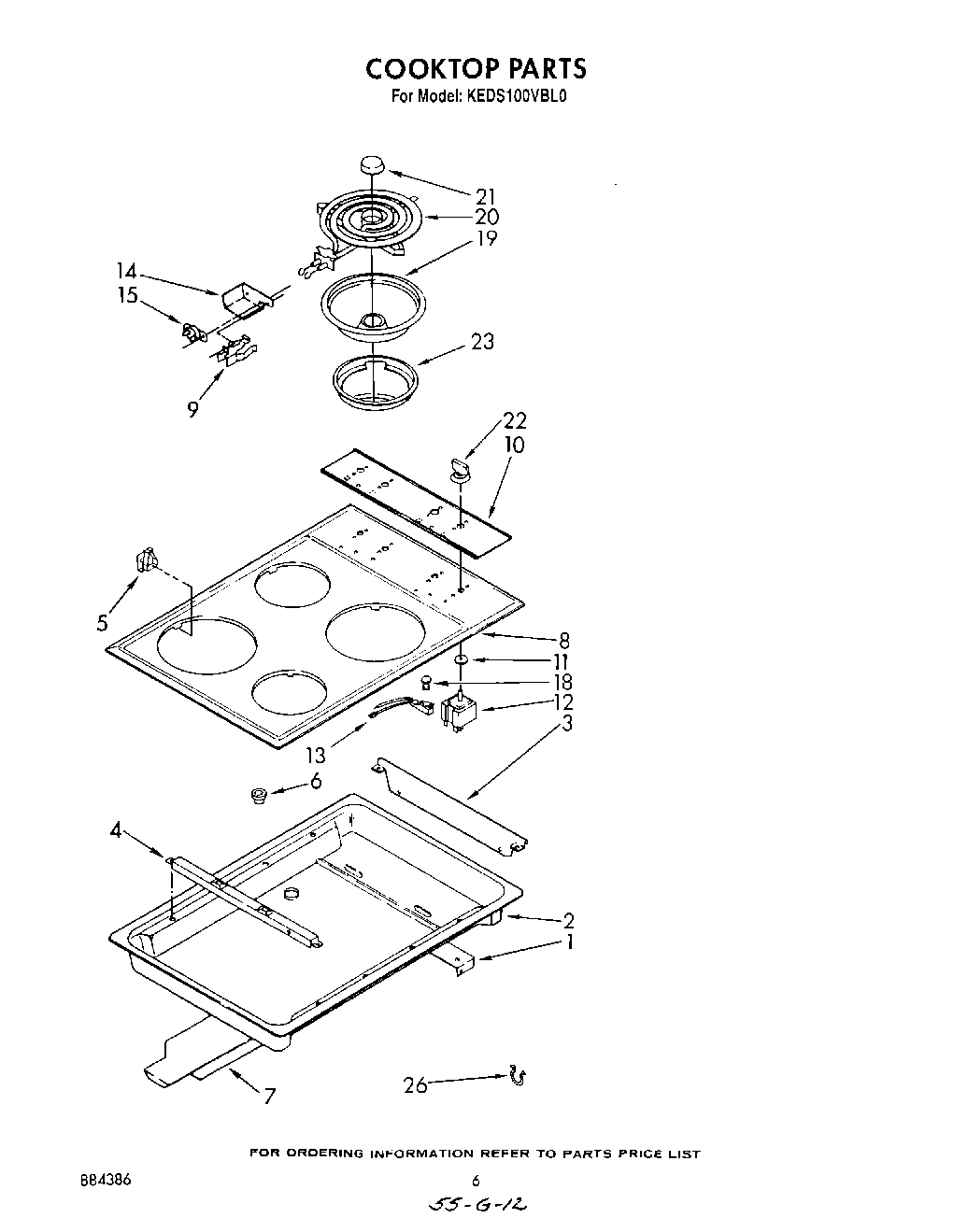

KEDS100VWH0 05 – COOK TOP , LIT/OPTIONALadmin2025-04-26T09:37:06+00:00KEDS100VWH0 05 – COOK TOP , LIT/OPTIONAL
Products
| Position | Product |
|---|
| Wire (14 Ga. 150 c Yellow) |
| console |
| Wire (12 Ga. 150 c Black) |
| 18 Ga. 80~c Rating (Red) |
| Wire (14 Ga. 200 c Brown) |
| 1 |
| WPL LIT3147430 |
| Rotisserie Kit |
| Grease |
| WPL LIT3148391 |
| Cookbook |
| WPL LIT884386 |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| FOIL, ALUMINUM OVEN (18`` X 25 ) |
| Instructions, Installation |
| Wire, 25` Roll (Black 14 Ga.) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25`` Roll (White 14 GA.) |
| Touch-Up Oven (1 Oz.) |
| 242831 Whirlpool Oven Wire |
| Wire (14 Ga. 150 c Blue) |
| Wire (14 Ga. 150 c Brown) |
| 1 | Support, Box |
| 2 | Box, Burner |
| 3 | Shield, Switch |
| 3 | WP488729 Whirlpool Refrigerator Door Screw |
| 4 | Support, Cooktop |
| 5 | 814103 Whirlpool Clip |
| 6 | WPL 258109 |
| 7 | Cover, Top Rear |
| 8 | Cooktop (Almond) |
| 8 | Cooktop (White) |
| 8 | WPL 312318 |
| 8 | Cooktop (Black) |
| 9 | WP4332752 Whirlpool Clip |
| 10 | Panel, Control (White) |
| 10 | Control Panel (Black) |
| 10 | Panel, Control (Almond) |
| 10 | Control Panel (Tape, Foam) |
| 11 | Seal, Switch Shaft (2) |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 12 | W10900107 Whirlpool Oven Surface Element Switch |
| 13 | Indicator Light |
| 14 | Bracket, Sensor |
| 15 | Thermostat |
| 15 | WP313808 Whirlpool Screw |
| 18 | Lens, Light |
| 19 | Reflector Pan (6`` (2)) |
| 19 | W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set |
| 20 | WP660532 Whirlpool Oven Surface Element |
| 20 | WP660533 Whirlpool Oven 8" Surface Element |
| 21 | Medallion (4) |
| 22 | Knob, Control (4) |
| 23 | W10858781 Whirlpool Trim Ring |
| 23 | W10854470 Whirlpool Trim Ring |
| 26 | 16515 Whirlpool Clip |
