KEDS100VWH1 06 – WIRING HARNESS , LIT/OPTIONALadmin2025-04-26T09:37:53+00:00KEDS100VWH1 06 – WIRING HARNESS , LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Wire (14 Ga. 150 c Yellow) |
| Wire (12 Ga. 150 c Black) |
| 18 Ga. 80~c Rating (Red) |
| Wire (14 Ga. 200 c Brown) |
| 1 |
| Rotisserie Kit |
| Grease |
| Cookbook |
| WPL LIT3148391 |
| WPL LIT3147430 |
| console |
| Instructions, Installation |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25`` Roll (White 14 GA.) |
| Wire, 25` Roll (Black 14 Ga.) |
| FOIL, ALUMINUM OVEN (18`` X 25 ) |
| Touch-Up Oven (1 Oz.) |
| WPW10208653 Whirlpool Insulation |
| 242831 Whirlpool Oven Wire |
| Wire (14 Ga. 150 c Blue) |
| Wire (14 Ga. 150 c Brown) |

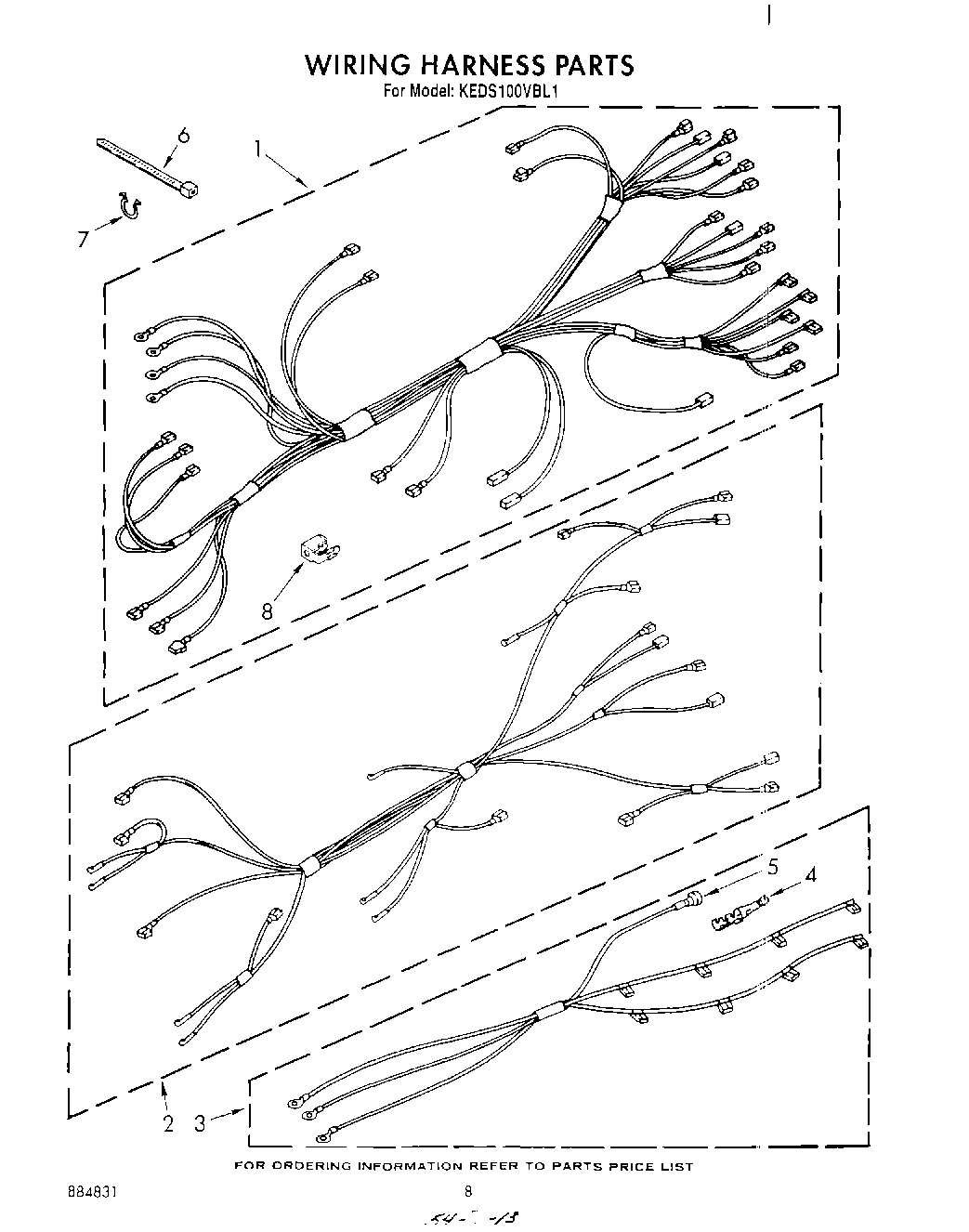

| 1 | Harness, Wire (Main) |
| 2 | Harness, Wire (suface Unit) |
| 3 | Harness, Wire (Infinite Switch) |
| 4 | WP596797 Whirlpool Terminal |
| 5 | Plug |
| 6 | WPW10339879 Whirlpool Wire Tie |
| 7 | 16515 Whirlpool Clip |
| 8 | Adapter, Terminal |
