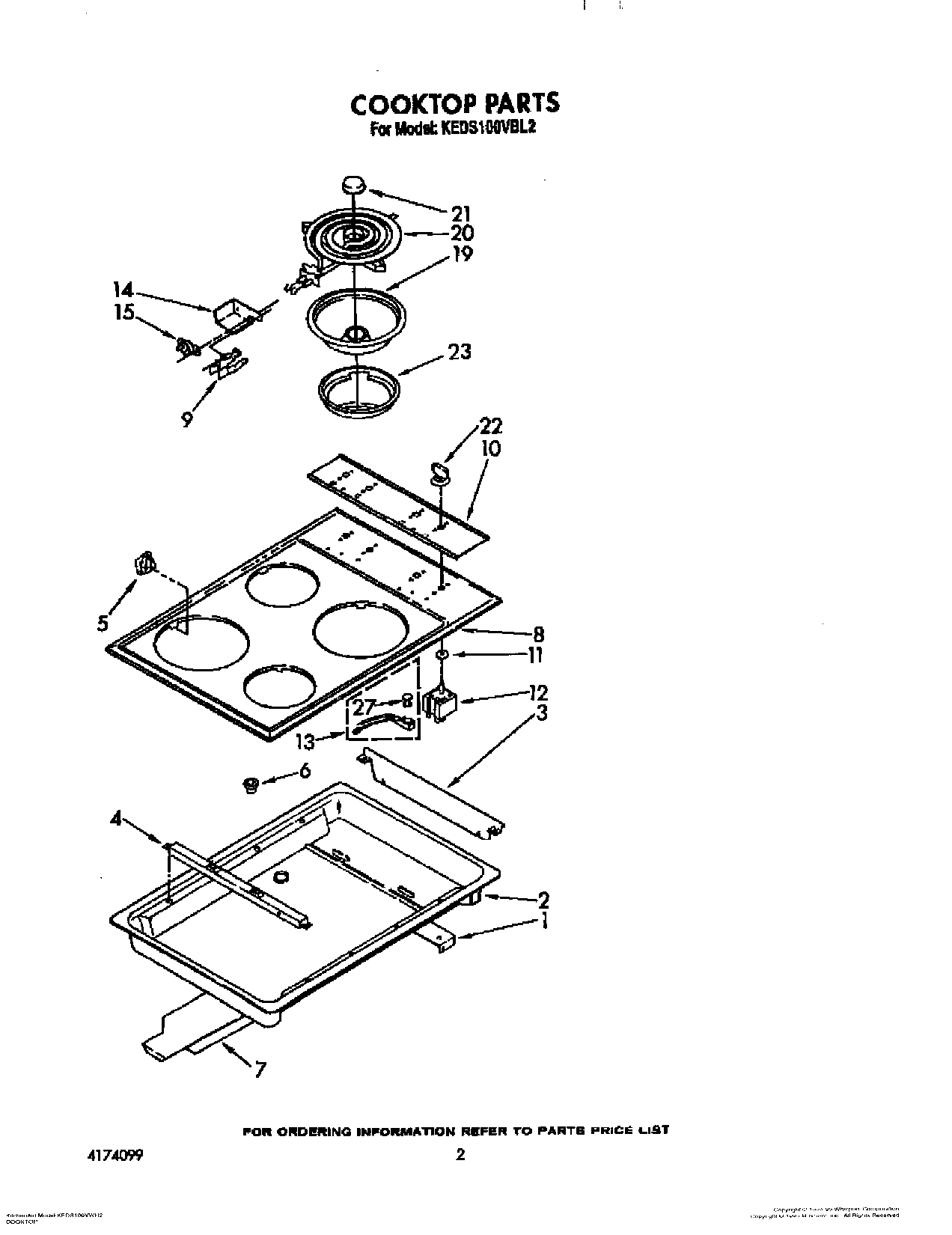

KEDS100VWH2 02 – COOKTOP

KEDS100VWH2 02 – COOKTOP

Written by

in

KEDS100VWH2 02 – COOKTOP

Products

PositionProduct
1Support, Box
2Box, Burner
3Shield, Switch
4Support, Cooktop
5814103 Whirlpool Clip
6WPL 258109
7WP488729 Whirlpool Refrigerator Door Screw
7Cover, Top Rear
8Cooktop (White)
8Cooktop (Black)
8WPL 312318
8Cooktop (Almond)
9BURNER RECEPTACLE KIT
10Control Panel (Tape, Foam)
10Control Panel (Black)
10Panel, Control (White)
10Panel, Control (Almond)
11Seal, Switch Shaft (2)
12W10900107 Whirlpool Oven Surface Element Switch
12WP486579 Whirlpool Air Conditioner Screw
13Indicator Light
14Bracket, Sensor
15Thermostat
15WP313808 Whirlpool Screw
19W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19Reflector Pan (6“ (2))
20WP660533 Whirlpool Oven 8" Surface Element
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22Knob, Control (4)
23W10854470 Whirlpool Trim Ring
23W10858781 Whirlpool Trim Ring
27Lens, Light
