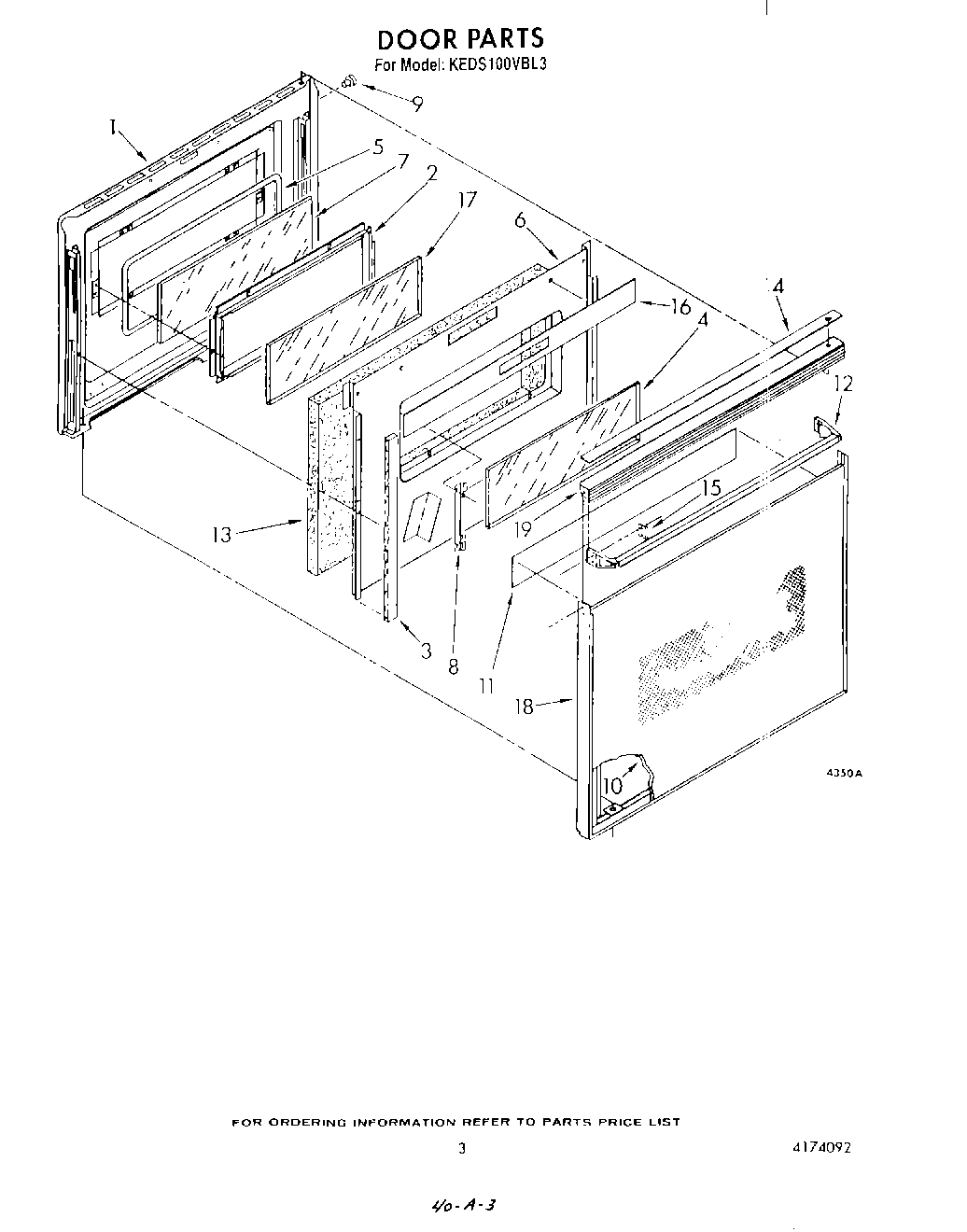

KEDS100VWH3 03 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door (Almond)
12	Handle, Oven Door (White)
12	Handle, Oven Door
13	Insulation, Door
14	Cap, Top
15	Clip (2)
16	Screw,
16	Sheild, Door
18	Frame (White)
18	Frame (Almond)
18	Frame, Door
19	Top, Door Frame
19	Back Splash (Screw (4) 10AB x 1/2“)
19	WP308685 Whirlpool Microwave Screw
19	WP355515 Whirlpool Screw
19	Door Top (Panoramic Grey)
