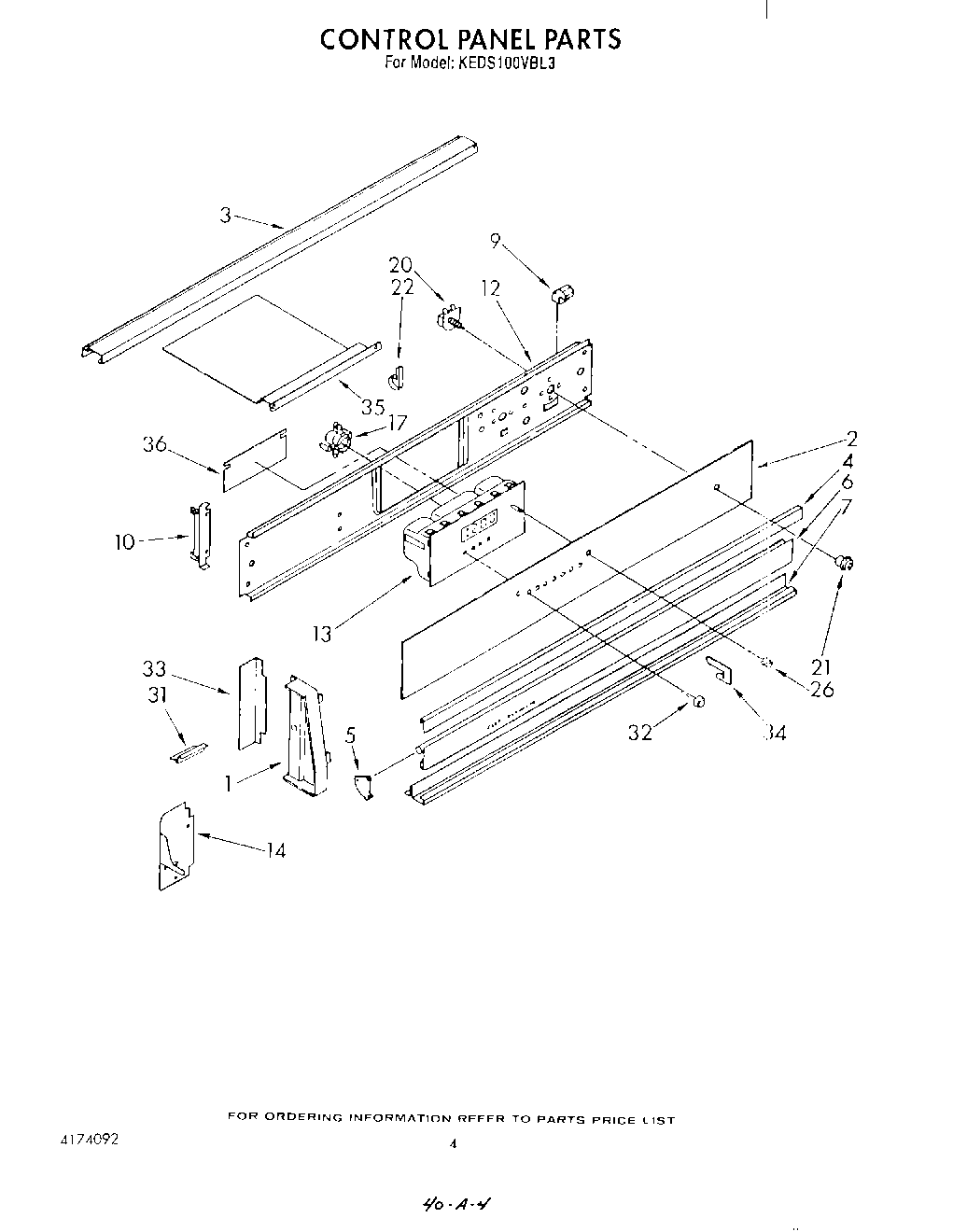

KEDS100VWH3 04 – CONTROL PANELadmin2025-04-26T09:35:35+00:00KEDS100VWH3 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap, L.H. (Almond) |
| 1 | End Cap. L.H. (White) |
| 1 | End Cap, L.H. (White) |
| 1 | End Cap. L.H. (Black) |
| 1 | End Cap. L.H. (Black) |
| 1 | End Cap (Washer) |
| 1 | End Cap, L.H. (Almond) |
| 2 | Glass, Control Panel (White) |
| 2 | Glass, Control Panel (Almond) |
| 2 | Glass, Control Panel (Black) |
| 3 | Rail, Top (Black) |
| 3 | Rail, Top (Bright Aluminum) |
| 4 | Trim, Center (Black) |
| 4 | Trim, Center (Bright Aluminum) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent (Semi-Bright Aluminum) |
| 6 | Door, Vent |
| 7 | Screw, 10-32 x 1/2 |
| 7 | Trim, Bottom |
| 9 | Retainer, Glass (4) |
| 10 | Bracket, Control Panel (2) |
| 12 | Bracket, Control |
| 13 | Screw |
| 13 | Electronic Range Control |
| 14 | Cover, Side (Right Hand) |
| 14 | Cover, Side (Left Hand) |
| 17 | WP313808 Whirlpool Screw |
| 17 | Thermostat, Oven |
| 20 | Lockwasher |
| 20 | Switch, Oven Light |
| 20 | White Model |
| 21 | Bezel, Switch (White) |
| 21 | Bezel, Switch (Almond) |
| 21 | Bezel Switch (1) |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 26 | Knob, Bit Generator (Black) |
| 26 | Knob, Bit Generator (White) |
| 26 | Kno |
| 31 | WP355515 Whirlpool Screw |
| 31 | Bracket, Control |
| 32 | WPL 3149780 |
| 32 | WPL 3149781 |
| 32 | WPL 3149782 |
| 33 | Trim, End Cap (Black) |
| 33 | Trim, End Cap (Almond) |
| 33 | Trim, End Cap (White) |
| 34 | Shield, Air |
| 35 | WPL 309080 |
| 35 | Screw (2) |
| 35 | Shield, Heat |
| 36 | Shield, Control |
