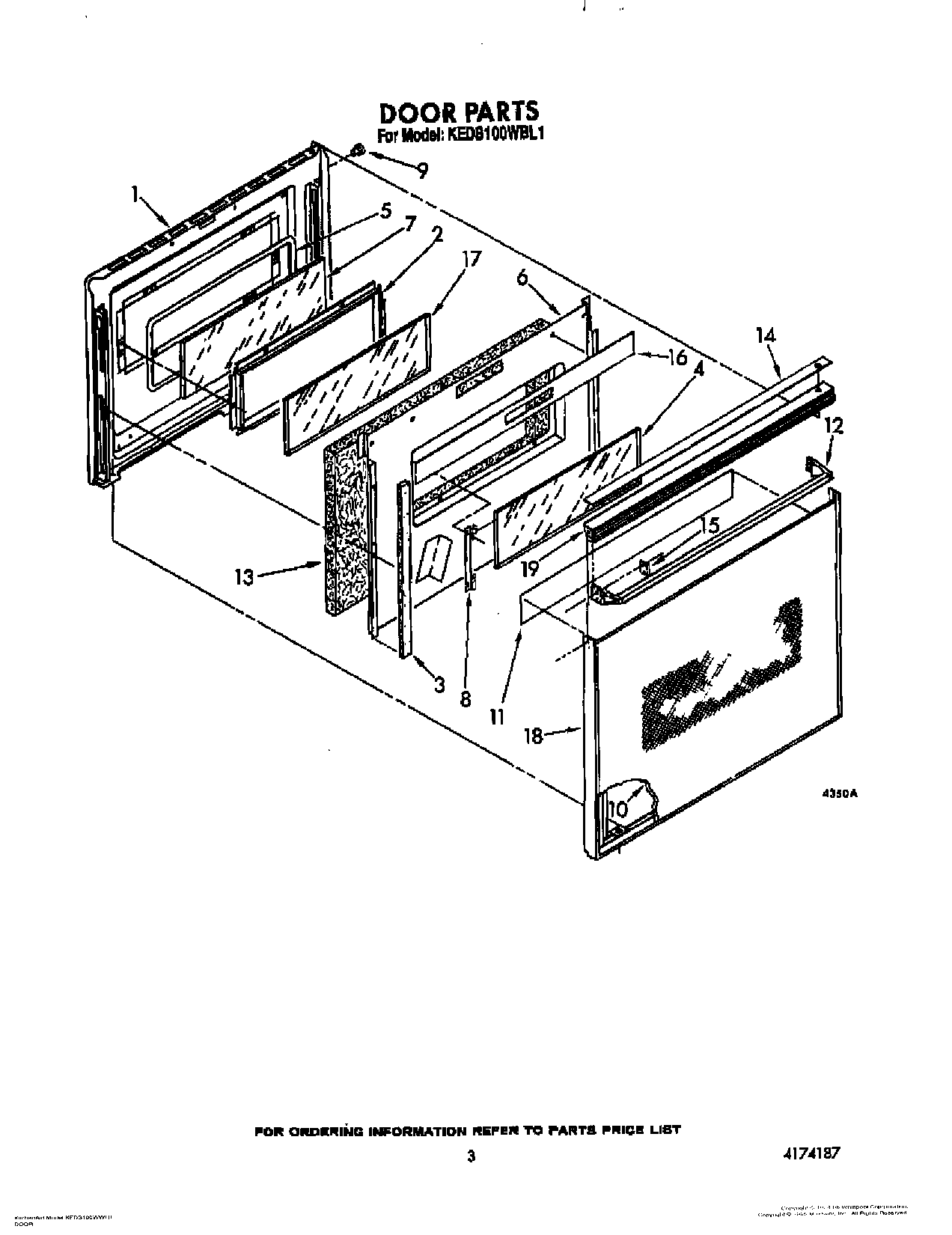

KEDS100WAL1 03 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (White)
12	WP308685 Whirlpool Microwave Screw
12	Handle, Oven Door
12	Handle, Door (Almond)
12	WP355515 Whirlpool Screw
13	Insulation, Door
14	Cap, Top
15	Clip, Mtg (2)
16	Screw,
16	Sheild, Door
18	Frame, Door
19	Back Splash (Screw (4) 10AB x 1/2“)
19	Top, Door (White Model)
19	Top, Door (Black Model)
