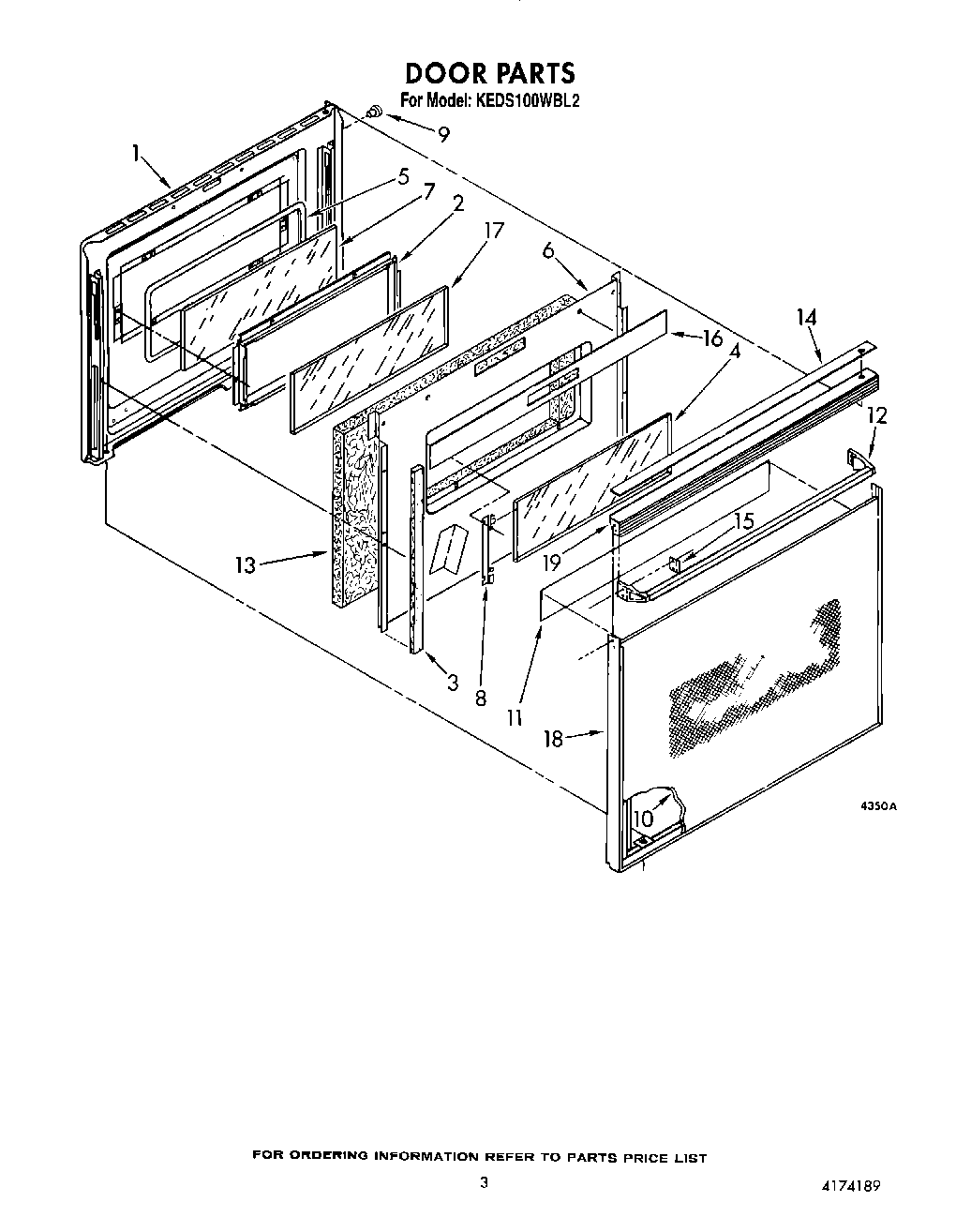

KEDS100WBL2 03 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
12	Handle, Door (Almond)
12	Handle, Door (White)
13	Insulation, Door
14	Cap, Top
15	Clip, Mtg (2)
16	Sheild, Door
16	Screw,
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
19	WP308685 Whirlpool Microwave Screw
