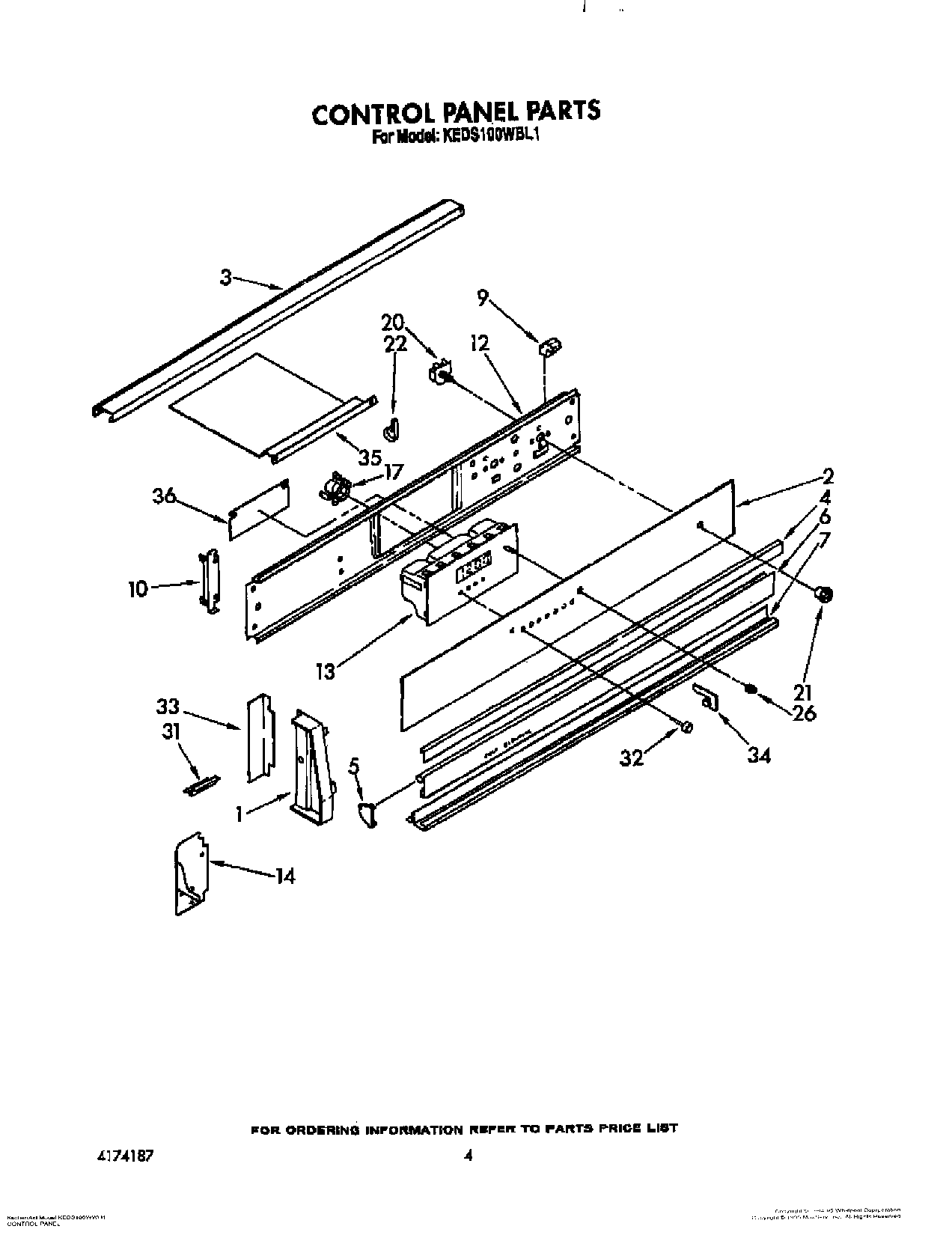

KEDS100WWH1 04 – CONTROL PANEL, OPTIONAL

KEDS100WWH1 04 – CONTROL PANEL, OPTIONAL

Written by

in

KEDS100WWH1 04 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	End Cap (Black, RH)
1	End Cap (Washer)
1	End Cap (Black, LH)
1	End Cap (White, LH)
1	End Cap (White, RH)
1	End Cap, L.H. (Almond)
1	End Cap (Almond, RH)
2	Glass, Control Panel (Black)
2	Glass, Control Panel (White)
2	Glass, Control Panel (Almond)
3	Rail, Top (Bright Aluminum)
3	Rail, Top (Black)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
6	Door, Vent (Semi-Bright Aluminum)
7	Screw, 10-32 x 1/2
7	Trim, Bottom
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
12	Bracket, Control
13	Electronic Range Control
13	Screw
14	Cover, Side (Right Hand)
14	Cover, Side (Left Hand)
17	WP313808 Whirlpool Screw
17	WP965173 Whirlpool Dishwasher Screw
17	Thermostat, Oven
20	Lockwasher
20	White Model
20	Switch, Oven Light
21	Bezel, Switch (Almond)
21	Bezel Switch (1)
21	Bezel, Switch (White)
22	WP308605 Whirlpool Refrigerator Clamp
26	Knob, Bit Generator (White)
26	Knob, Bit Generator (Black)
26	Kno
31	WP355515 Whirlpool Screw
31	Bracket, Control
32	WPL 3149782
32	WPL 3149781
32	WPL 3149780
33	Trim, End Cap (White)
33	Trim, End Cap (Black)
33	Trim, End Cap (Almond)
34	Shield, Air
35	Screw (2)
35	Shield, Heat
35	WPL 309080
36	350930 Whirlpool White Spray Paint
36	285006 Whirlpool Spray
36	WP482338 Whirlpool Refrigerator Adhesive
36	Shield, Control
36	242831 Whirlpool Oven Wire
36	Wire, 25“ Roll (White 14 GA.)
36	799344 Whirlpool Refrigerator Paint
36	Toast
36	WP72107 Whirlpool Touchup
36	Platinum (Uncut)
36	WPL 72112
36	350942 Whirlpool Spray Paint
36	WPL 799832
36	Wire, 25` Roll (Black 14 Ga.)
36	Wire, 25` Roll (Red 14 Ga.)
36	350956 Whirlpool Spray Assembly
36	72017 Whirlpool Appliance Touch-Up Paint White
36	72032 Whirlpool Touch Up Paint Black
36	WP261869 Whirlpool Microwave Paint
36	Wire (14 Ga. 150 c Blue)
36	Leveler (Thinner)
36	Wire (14 Ga. 150 c Yellow)
36	261900 Whirlpool Microwave Spray
36	Enamal, Toast (1 Qt. Uncut)
36	Paint, Spray (13 Oz.) (Platinum)
36	18 Ga. 80~c Rating (Red)
36	WPL 786020
36	Wire (14 Ga. 200 c Brown)
36	1
36	Golden Harvest (Uncut)
36	Wire (12 Ga. 150 c Black)
36	Golden Harvest
36	WPL 814128
36	Wire (14 Ga. 150 c Brown)
36	Wire (14 Ga. 150 c Green)
36	WPL 350806
36	Wire (14 Ga. 150 c Orange)
36	Almond (Uncut)
36	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
36	72113 Whirlpool Touch-Up Paint
36	WPL 591014
