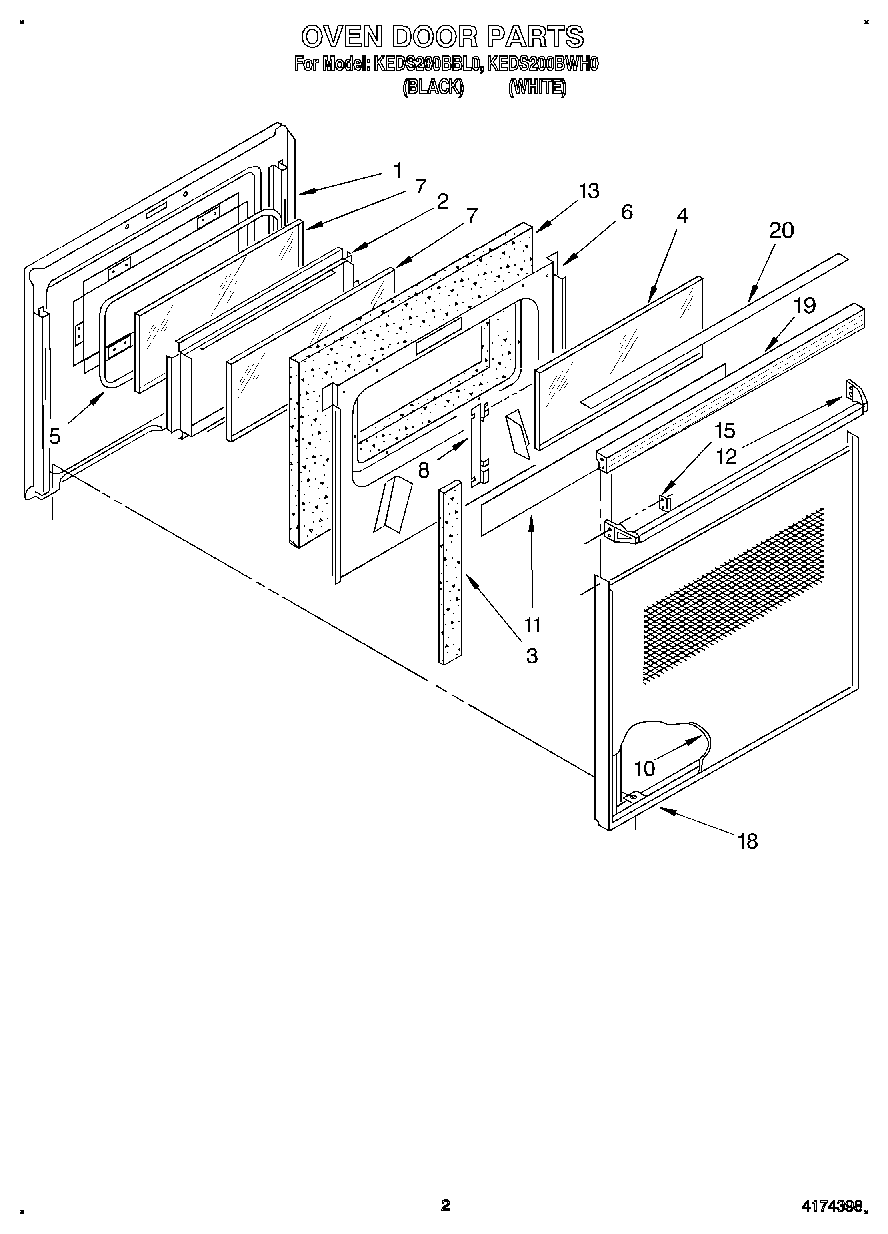

KEDS200BBL0 02 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (White)
12	Handle, Door (Black)
13	Insulation, Door
15	Screw
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
20	Cap, Top
