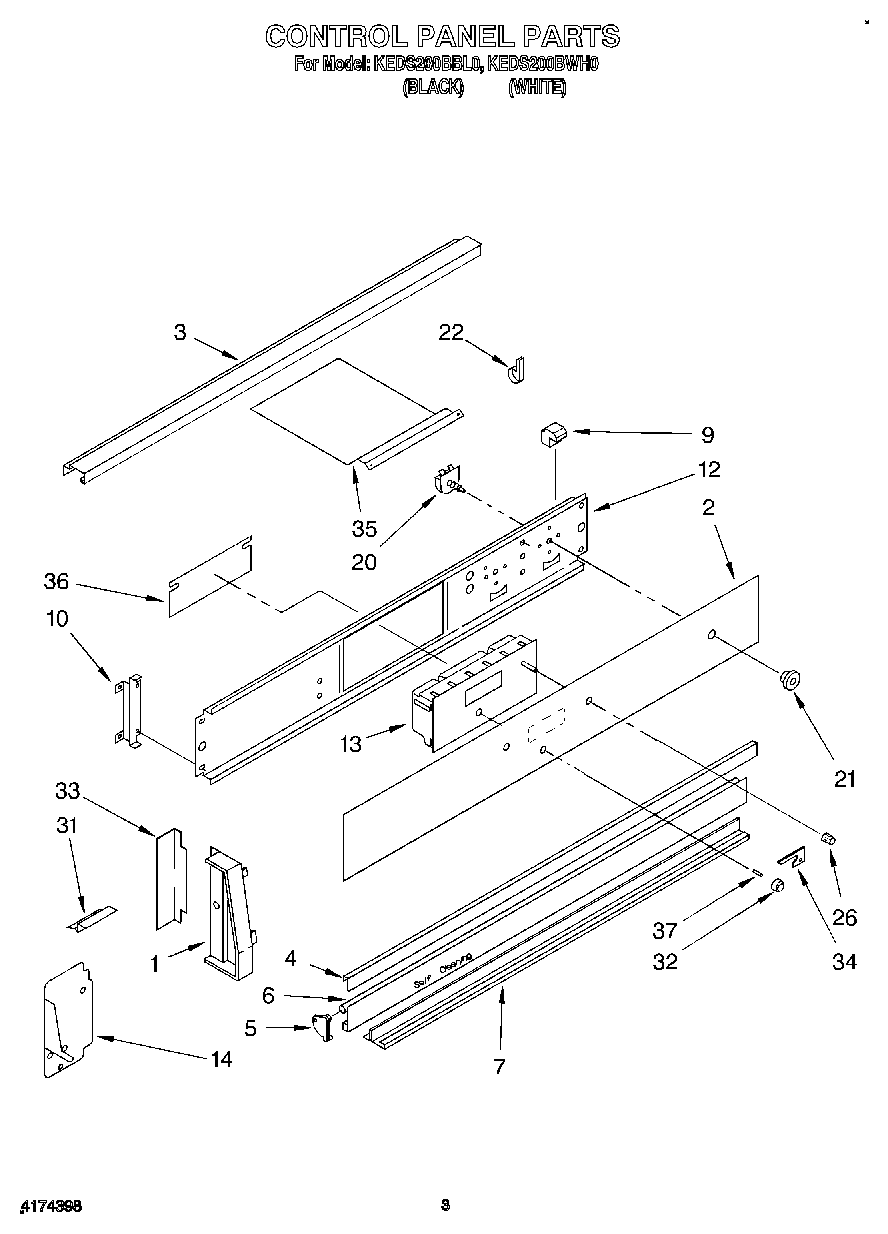

KEDS200BBL0 03 – CONTROL PANEL, OPTIONAL
Written by
in
KEDS200BBL0 03 – CONTROL PANEL, OPTIONAL
Products
Position
Product
1
End Cap (Washer)
1
End Cap (White, LH)
1
End Cap (White, RH)
1
End Cap (Black, LH)
1
End Cap (Black, RH)
2
Glass, Control Panel (White)
2
Glass, Control Panel (Black)
3
Rail, Top (Bright Aluminum)
3
Rail, Top (Black)
4
Trim, Center (Bright Aluminum)
4
Trim, Center (Black)
5
Trim, Vent Door (Brite Aluminum, L.H.)
5
End Trim, Vent (Right Side)
5
Trim, Vent Door (Brite Aluminum, R.H.)
5
End Trim, Vent (Left Side)
6
Door, Vent
6
Door, Vent (Semi-Bright Aluminum)
7
Screw, 10-32 x 1/2
7
Trim, Bottom
9
Retainer, Glass (4)
10
Bracket, Control Panel (2)
12
Bracket, Control
13
Electronic Range Control
13
Screw
14
Cover, Side (Right Hand)
14
Cover, Side (Left Hand)
20
Lockwasher
20
Switch, Oven Light
20
White Model
21
Bezel, Switch (White)
21
Bezel Switch (1)
22
WP308605 Whirlpool Refrigerator Clamp
26
Knob, Bit Generator (Black)
26
Knob, Bit Generator (White)
31
Bracket, Control
31
WP355515 Whirlpool Screw
32
Button, Flush (8) (White)
32
Button, Flush (8) (Black)
33
Trim, End Cap (White)
33
Trim, End Cap (Black)
34
Shield, Air
35
Screw (2)
35
Shield, Heat
36
Shield, Control
37
Wire (14 Ga. 150 c Orange)
37
Golden Harvest (Uncut)
37
WPL 814128
37
WPL 3185260
37
Stem, Button (8)
37
WPL 832985
37
WPL 799832
37
350942 Whirlpool Spray Paint
37
WPL 72112
37
Platinum (Uncut)
37
Enamal, Toast (1 Qt. Uncut)
37
Paint, Spray (13 Oz.) (Platinum)
37
Toast
37
Golden Harvest
37
72113 Whirlpool Touch-Up Paint
37
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
37
Almond (Uncut)
37
Leveler (Thinner)
37
WP72107 Whirlpool Touchup
37
799344 Whirlpool Refrigerator Paint
37
72017 Whirlpool Appliance Touch-Up Paint White
37
350956 Whirlpool Spray Assembly
37
Wire, 25` Roll (Black 14 Ga.)
37
Wire, 25` Roll (Red 14 Ga.)
37
WPL 591014
37
WPL 350806
37
1
37
Wire (14 Ga. 200 c Brown)
37
18 Ga. 80~c Rating (Red)
37
Wire (12 Ga. 150 c Black)
37
Wire (14 Ga. 150 c Yellow)
37
Wire (14 Ga. 150 c Green)
37
Wire (14 Ga. 150 c Brown)
37
Wire (14 Ga. 150 c Blue)
37
WP261869 Whirlpool Microwave Paint
37
242831 Whirlpool Oven Wire
37
WP482338 Whirlpool Refrigerator Adhesive
37
72032 Whirlpool Touch Up Paint Black
37
285006 Whirlpool Spray
37
Wire, 25“ Roll (White 14 GA.)
37
350930 Whirlpool White Spray Paint
←
