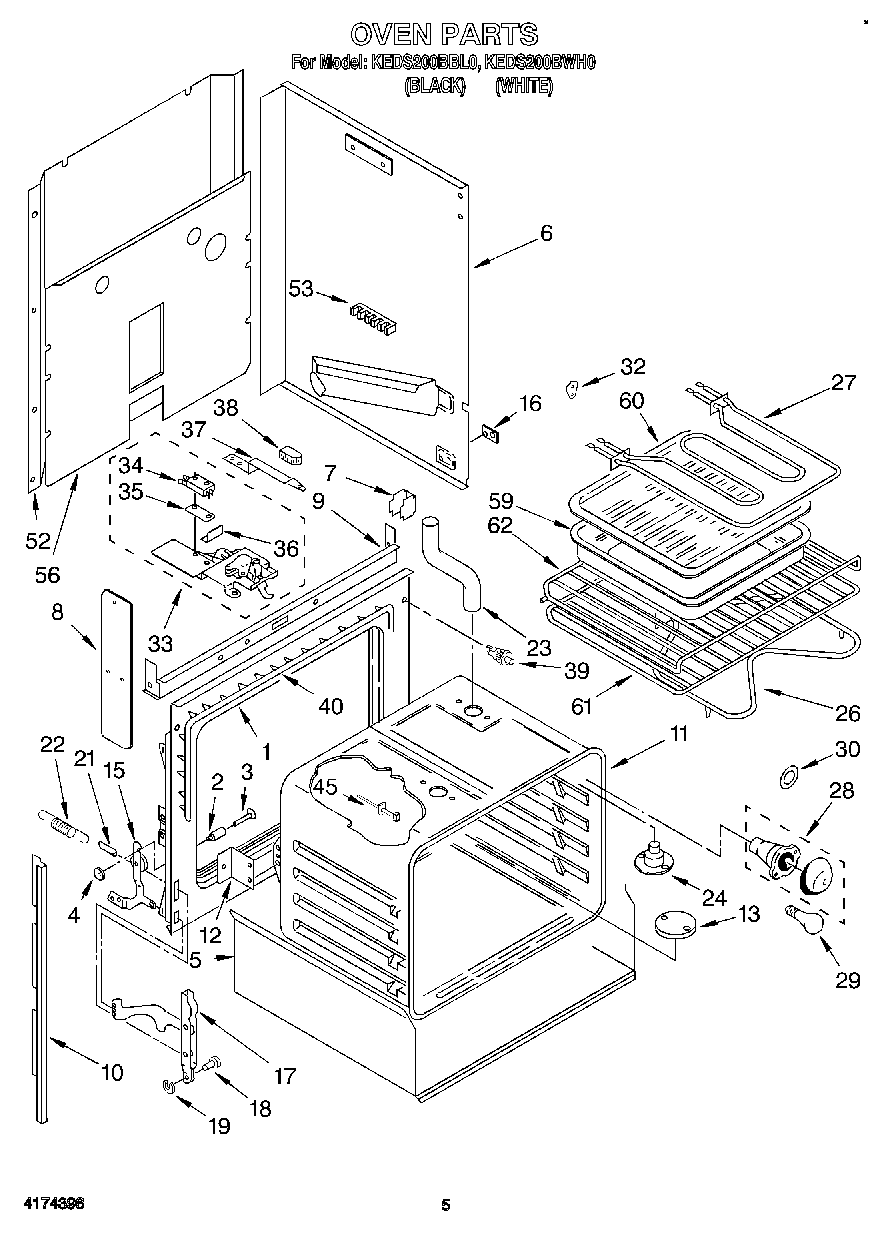

KEDS200BBL0 04 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3188574
	WPL LIT3188261
	Installation Instructions
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper L.H.
6	Side Wrapper R.H.
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	WPL 310662
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Screw (2)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
32	WPL 3183005
33	Latch Assembly
33	Screw (3)
33	WP488729 Whirlpool Refrigerator Door Screw
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
40	WPL 3185197
45	Screw (3)
45	Sensor, Heat
52	Panel, Back
53	3184020 Whirlpool Oven Wire
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	WPL 3149328
62	WPL 310435
62	WPL 3188439
62	Rack, Offset
62	WPL 310433
