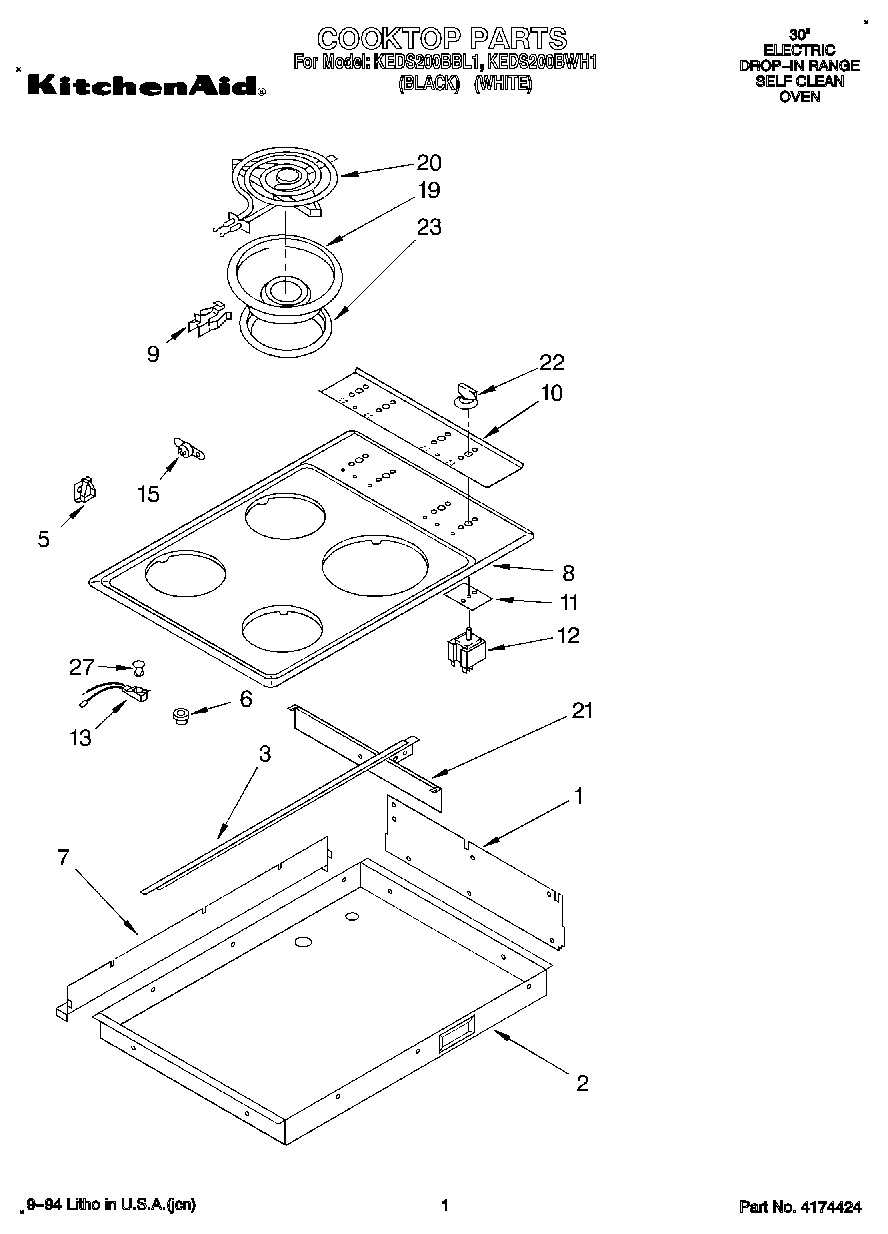

| 1 | Plate, Mounting |
| 2 | Box, Burner |
| 3 | Bracket, Mounting |
| 5 | 814103 Whirlpool Clip |
| 6 | WPL 258109 |
| 7 | Cover, Rear |
| 7 | WP488729 Whirlpool Refrigerator Door Screw |
| 8 | Cooktop (White) |
| 8 | WPL 312318 |
| 8 | Cooktop (Black) |
| 9 | WP4332752 Whirlpool Clip |
| 10 | Control Panel (White) |
| 10 | Control Panel (Black) |
| 11 | 3183956 Whirlpool Oven Seal Switch |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 12 | WP3148966 Whirlpool Infinite Switch |
| 12 | Switch, Infinite (6`` Element (2)) |
| 13 | Indicator Light |
| 15 | WP313808 Whirlpool Screw |
| 15 | WP3188286 Whirlpool Thermostat |
| 19 | Reflector Pan (6`` (2)) |
| 19 | W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set |
| 20 | WP660533 Whirlpool Oven 8" Surface Element |
| 20 | WP660532 Whirlpool Oven Surface Element |
| 21 | Shield, Heat |
| 21 | Screw (6) |
| 22 | Knob, Control (4) (White) |
| 22 | Knob, Control (4) (Black) |
| 23 | W10858781 Whirlpool Trim Ring |
| 23 | W10854470 Whirlpool Trim Ring |
| 27 | Lens, Light |
