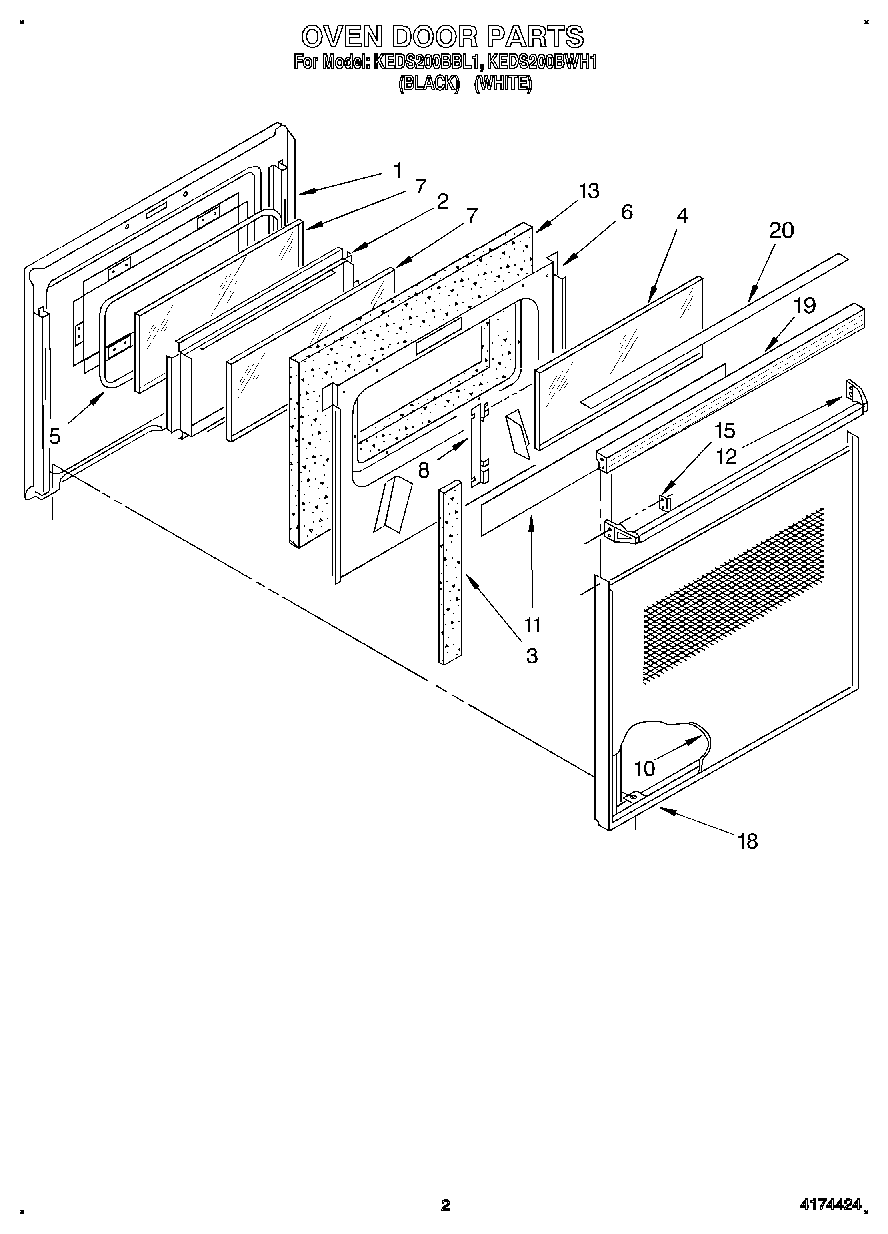

KEDS200BWH1 02 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (White)
12	Handle, Door (Black)
12	WP355515 Whirlpool Screw
13	Insulation, Door
15	Clip, Mtg (2)
15	Screw
15	Back Splash (Screw (4) 10AB x 1/2“)
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
20	Cap, Top
