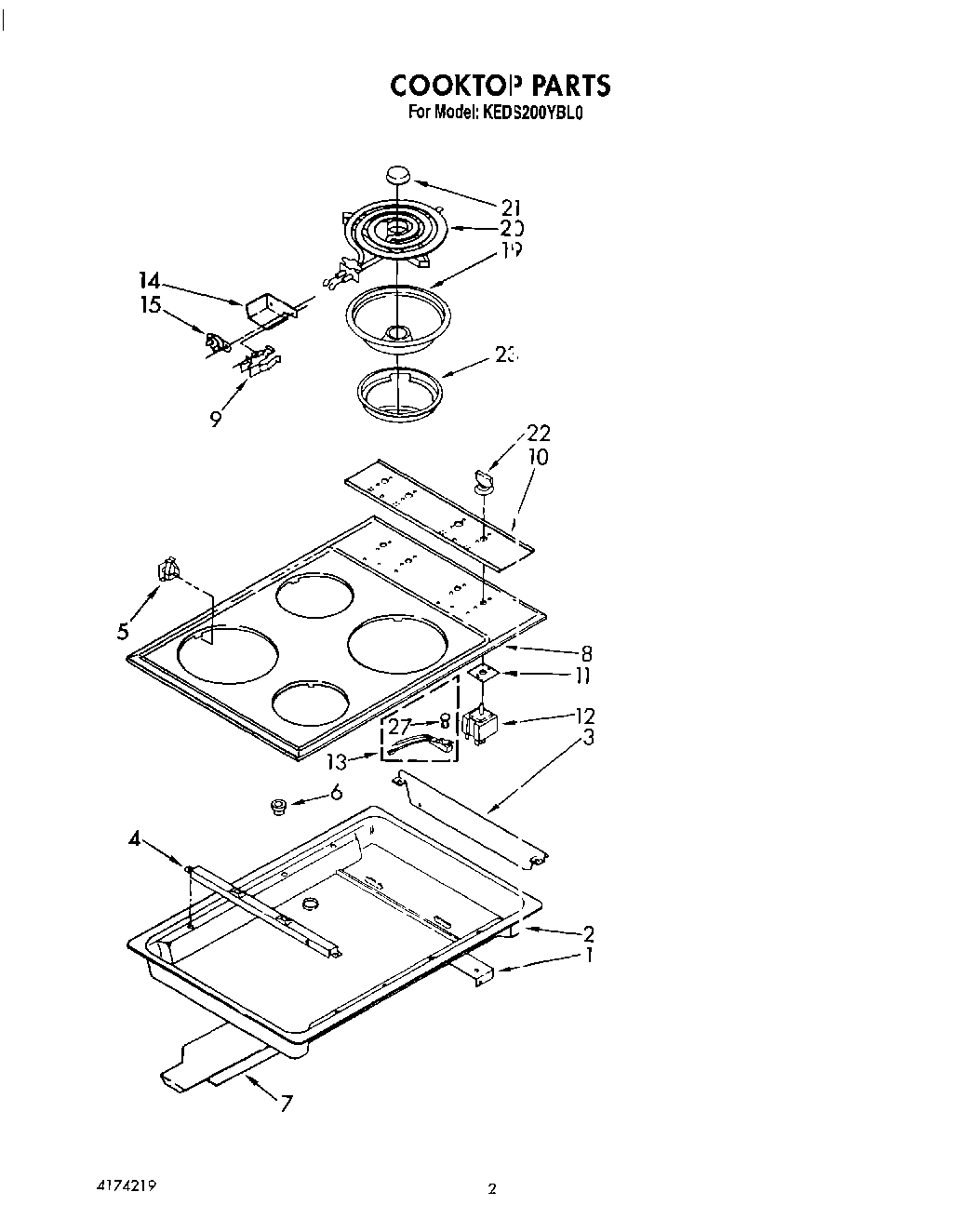

KEDS200YBL0 02 – COOKTOP

KEDS200YBL0 02 – COOKTOP

Written by

in

KEDS200YBL0 02 – COOKTOP

Products

PositionProduct
1Support, Box
2Box, Burner
3Shield, Switch
4Support, Cooktop
5814103 Whirlpool Clip
6WPL 258109
7Cover, Top Rear
7WP488729 Whirlpool Refrigerator Door Screw
8WPL 312318
8Cooktop (White)
8Cooktop (Black)
9BURNER RECEPTACLE KIT
10Control Panel (Black)
10Control Panel (Tape, Foam)
10Control Panel (White)
113183956 Whirlpool Oven Seal Switch
12WP486579 Whirlpool Air Conditioner Screw
12Switch, Infinite (6“ Element (2))
12WP3148966 Whirlpool Infinite Switch
13Indicator Light
14Bracket, Sensor
15WP313808 Whirlpool Screw
15Thermostat
19Reflector Pan (6“ (2))
19W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
20WP660533 Whirlpool Oven 8" Surface Element
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22Knob, Control (4) (Black)
22Knob, Control (4) (White)
23W10854470 Whirlpool Trim Ring
23W10858781 Whirlpool Trim Ring
27Lens, Light
