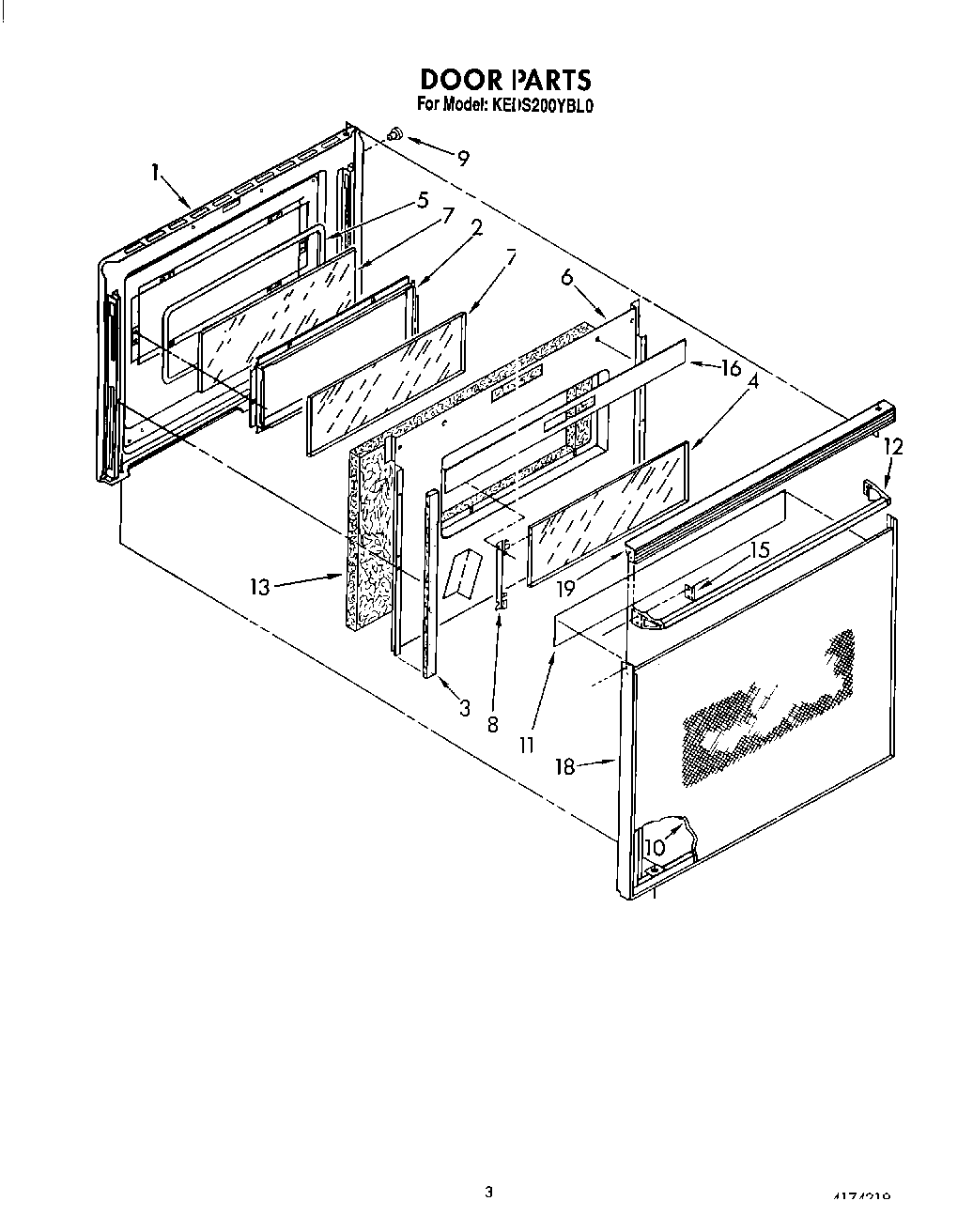

KEDS200YBL0 03 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Oven Door (Black Model)
12	Handle, Oven Door (White Model)
13	Insulation, Door
15	Clip, Mtg (2)
16	Screw,
16	Sheild, Door
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
19	WP308685 Whirlpool Microwave Screw
