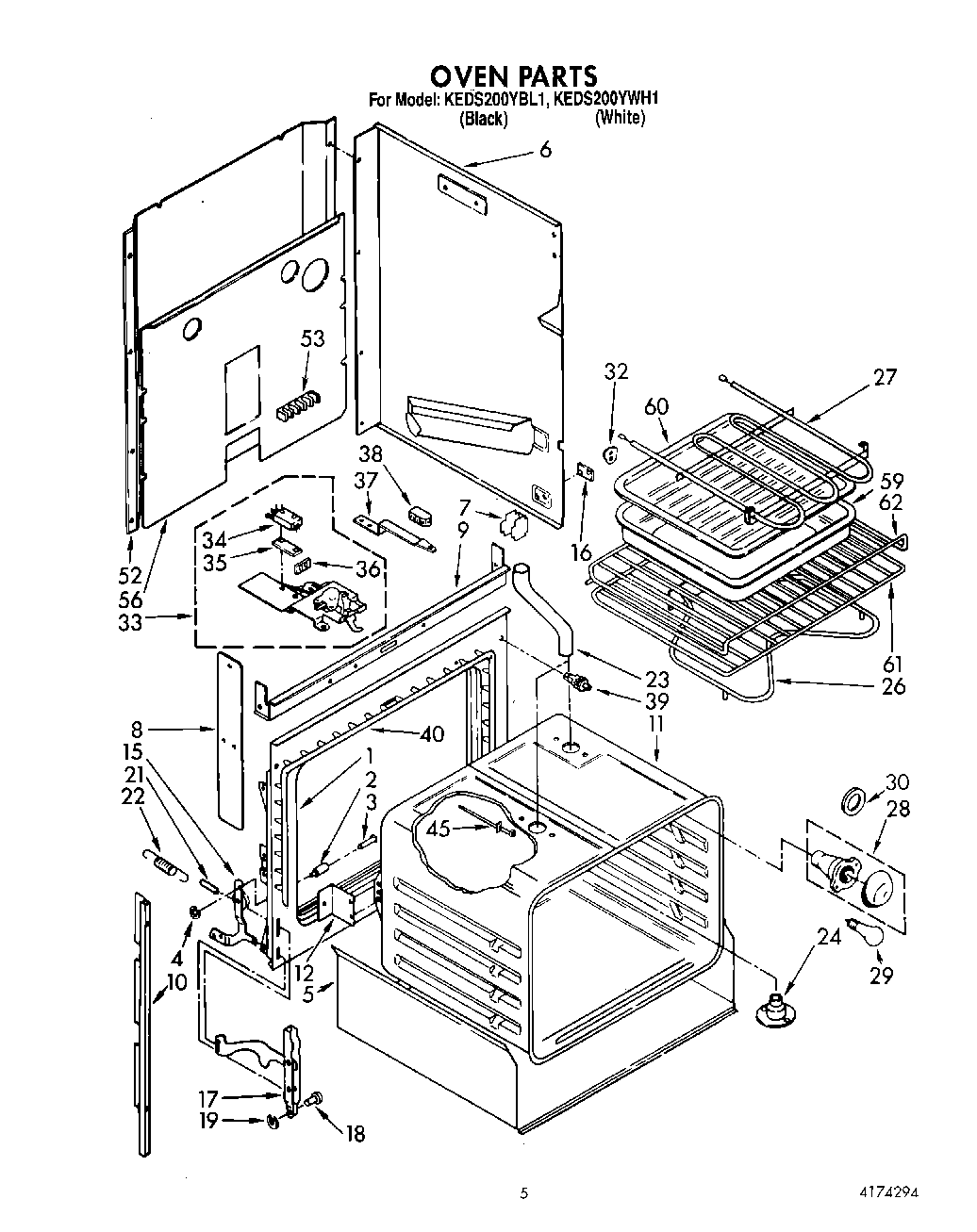

KEDS200YBL1 04 – OVEN

Products

Position	Product
	WPL LIT4174294
	Installation Instructions
	WPL LIT3185645
	WPL LIT3185258
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
24	Eliminator, Smoke
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
32	WPL 3183005
33	Latch Assembly
33	Screw (3)
33	WP488729 Whirlpool Refrigerator Door Screw
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
40	WPL 3185197
45	Sensor, Heat
45	Screw (3)
52	Panel, Back
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	WPL 310435
62	WPL 3149328
62	Rack, Oven Offset
62	Insulation
62	WPL 310433
