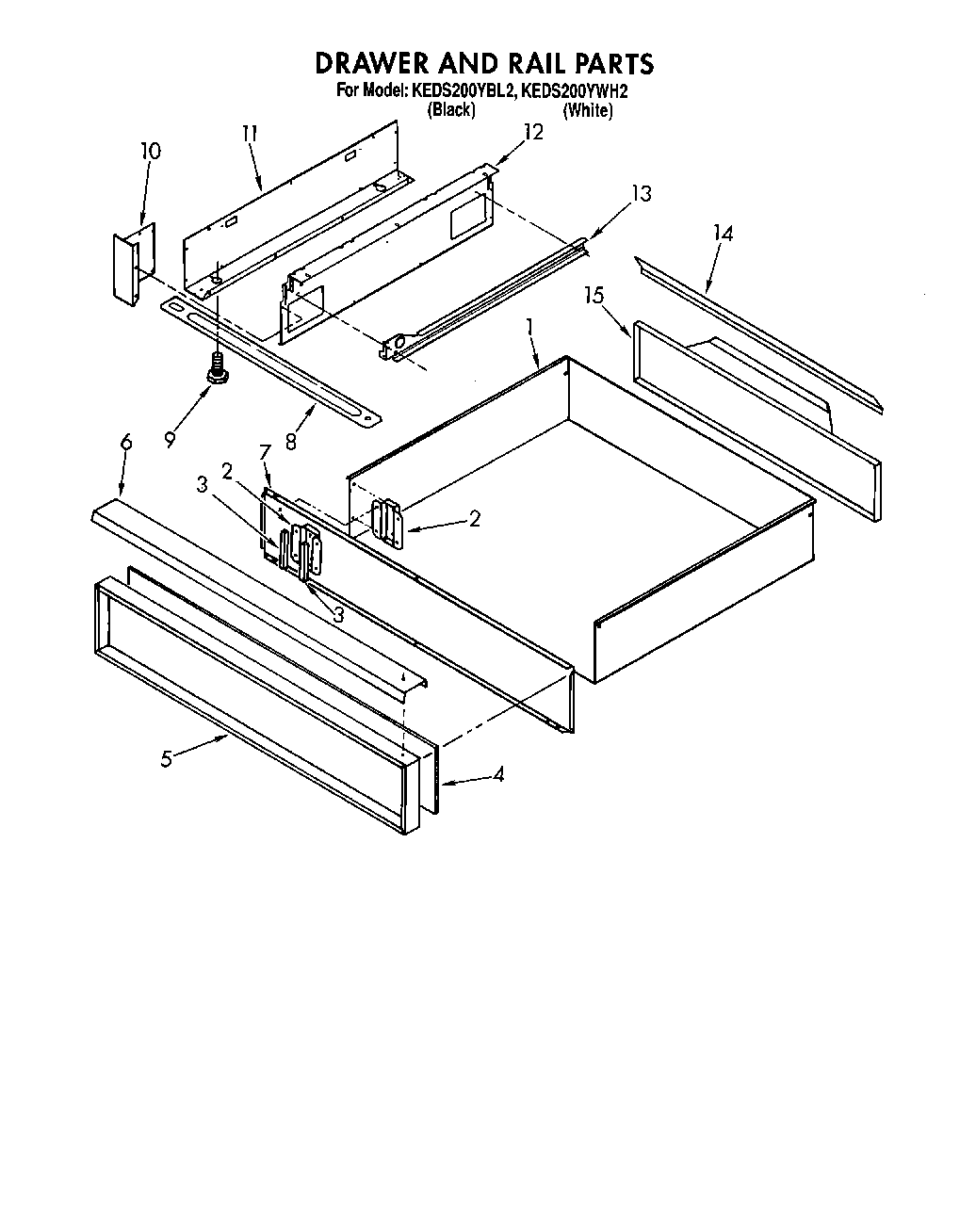

KEDS200YBL2 05 – DRAWER AND RAIL

Products

PositionProduct
1Drawer, Utility
2Bracket, Mounting
3Seal, Foam (4)
4Glass, Drawer Front (White)
4Glass, Drawer Front (Black)
5Fastener (2)
5Frame, Outer
6Handle, Drawer (White)
6Handle, Drawer (Black)
6Screw (2)
6WP355515 Whirlpool Screw
7Panel, Back
8Bracket
9WPW10058460 Whirlpool Appliance Levelling Leg
10Cap, Front (Right Hand)
10Cap, Front (Left Hand)
11Support, Outer Drawer
12Support, Inner Drawer
13Track, Drawer (Left Hand)
13Track, Drawer (Right Hand)
14Baffle, Drip
15Panel, Back
15WP488729 Whirlpool Refrigerator Door Screw
