KEDS200YWH0 06 – DRAWER AND RAIL

KEDS200YWH0 06 – DRAWER AND RAIL

Written by

in

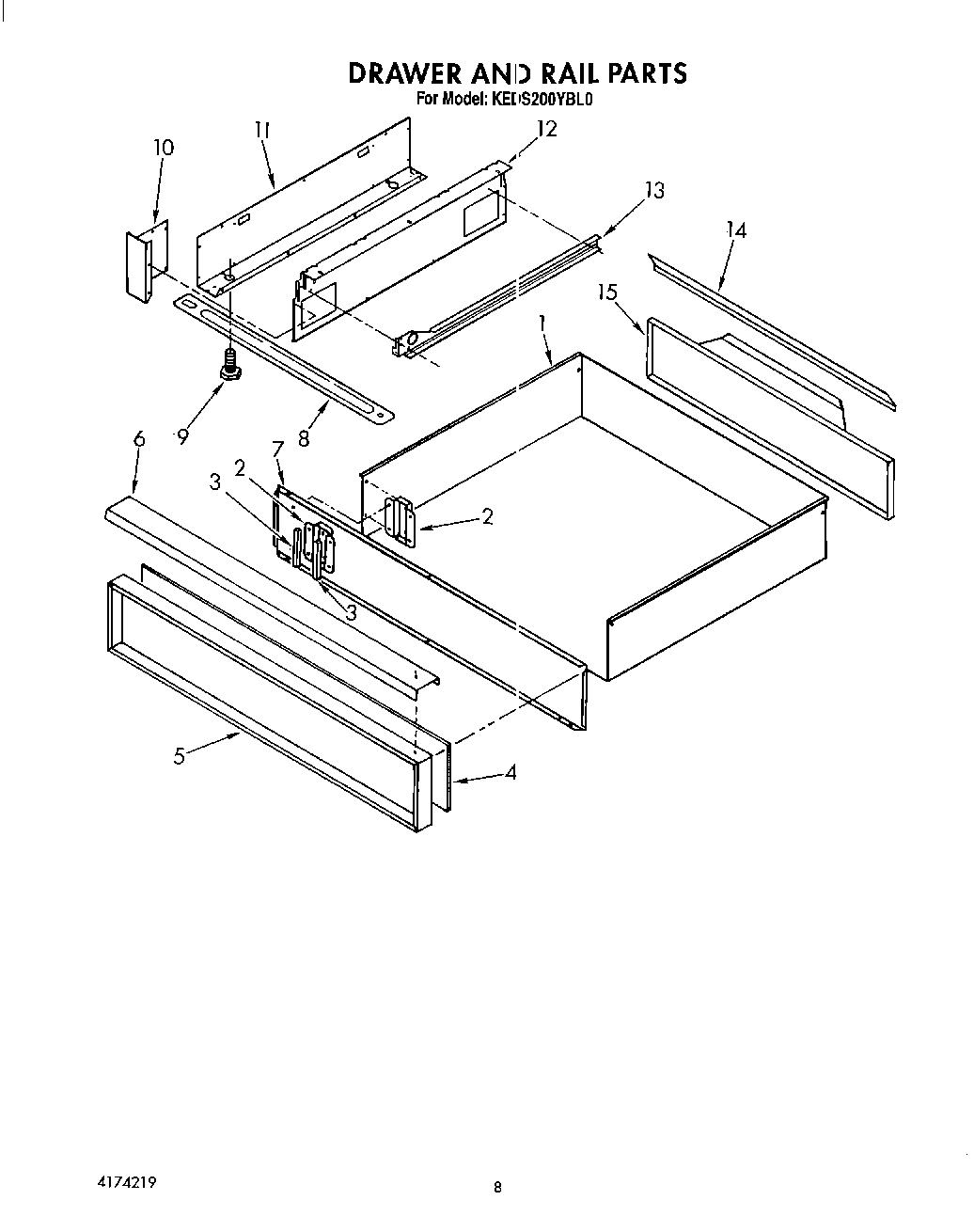

KEDS200YWH0 06 – DRAWER AND RAIL

Products

PositionProduct
1Drawer, Utility
2Bracket, Mounting
3Seal, Foam (4)
4Glass, Drawer Front (White)
4Glass, Drawer Front (Black)
5Frame, Outer
6Handle, Drawer (White)
6Screw (2)
6WP355515 Whirlpool Screw
6Handle, Drawer (Black)
7Panel, Back
8Bracket
9WPW10058460 Whirlpool Appliance Levelling Leg
10Cap, Front (Right Hand)
10Cap, Front (Left Hand)
11Support, Outer Drawer
12Support, Inner Drawer
13Track, Drawer (Right Hand)
13Track, Drawer (Left Hand)
14Baffle, Drip
15Panel, Back
15WP488729 Whirlpool Refrigerator Door Screw
