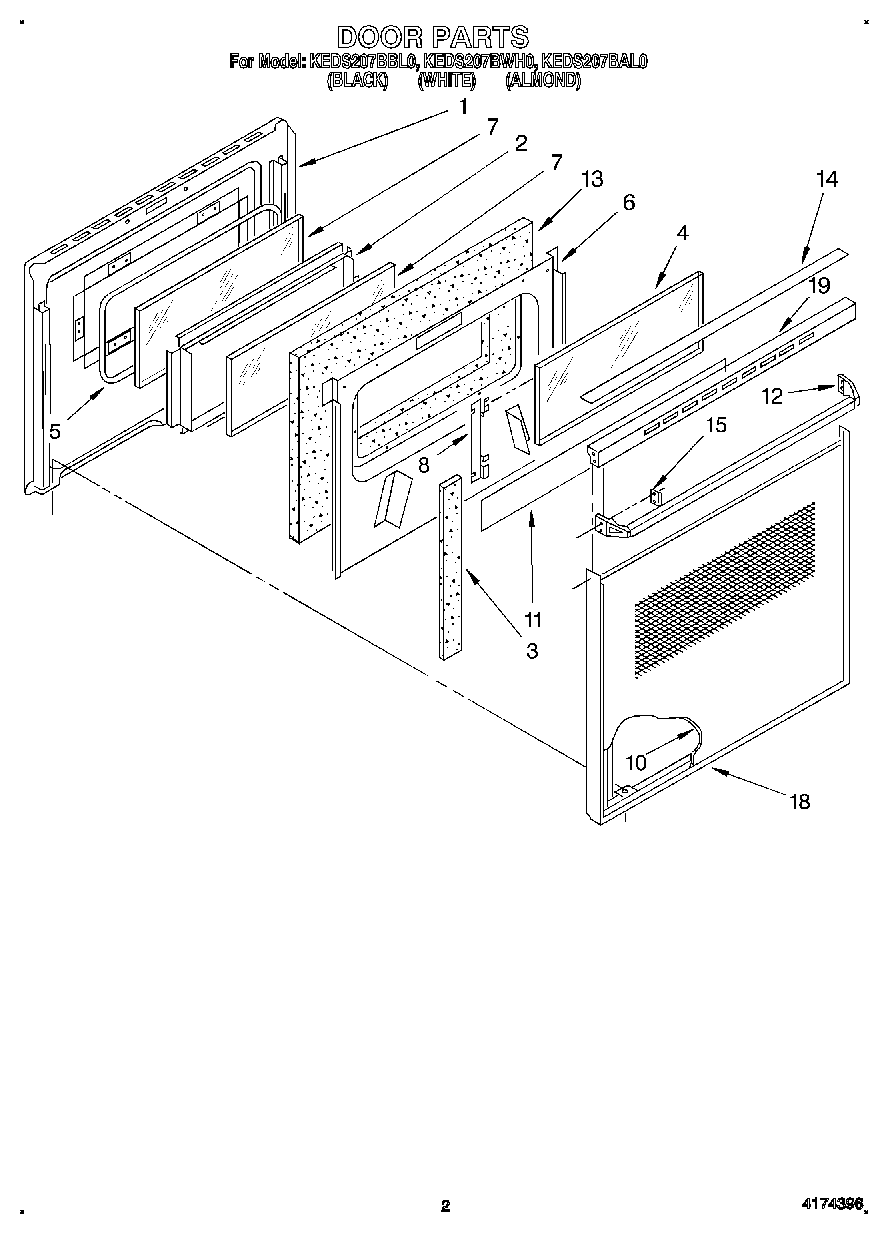

KEDS207BAL0 02 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Almond Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
11	Foil, Door
12	Handle, Door (Black)
12	Handle, Door (White)
12	Handle, Door (Almond)
12	WP355515 Whirlpool Screw
13	Cap, Top Door (Almond Model)
14	Cap, Top
15	Clip, Mtg (2)
18	Screw
18	Frame, Door
19	Back Splash (Screw (4) 10AB x 1/2“)
19	Top, Door (White Model)
19	Top, Door (Black Model)
