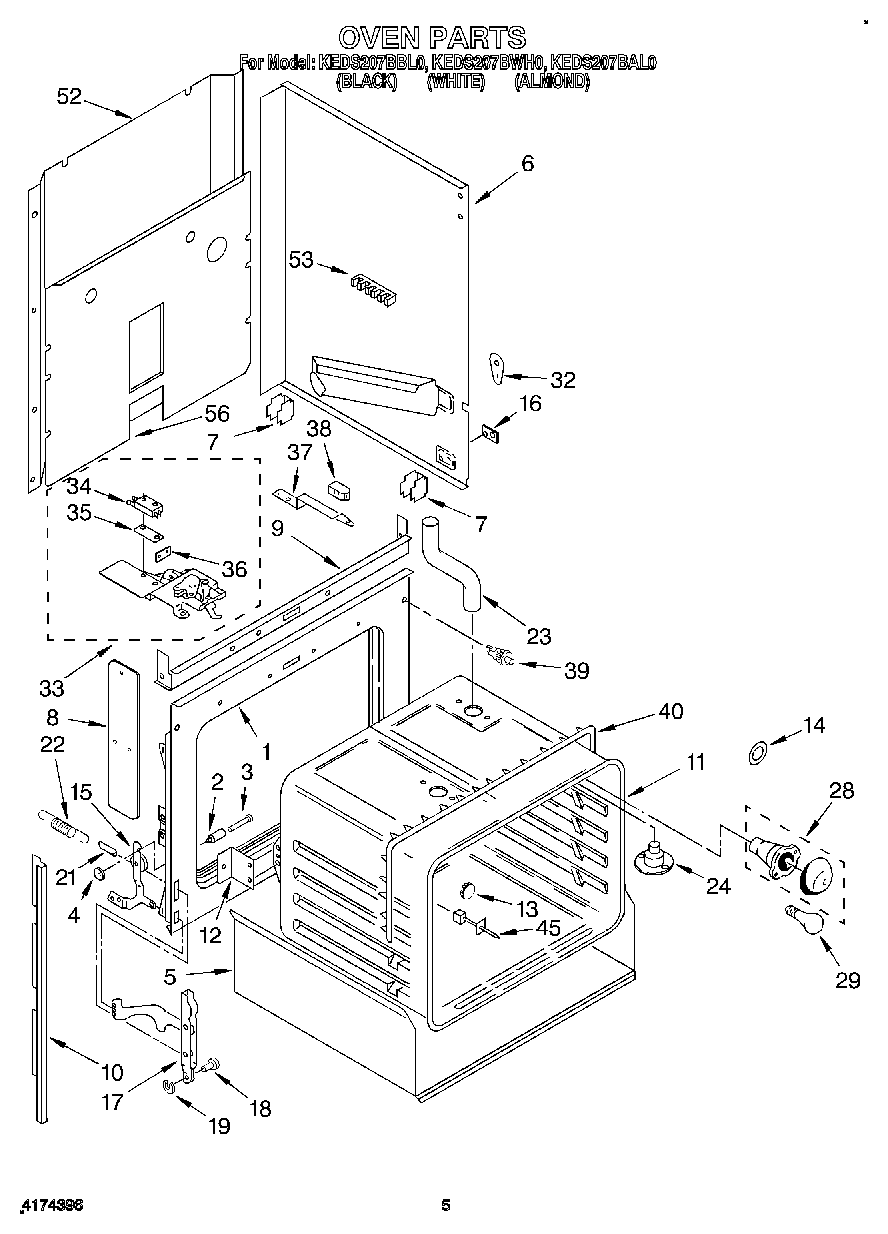

KEDS207BAL0 04 – UPPER OVEN, LITERATURE

Products

Position	Product
	Guide, Auto Set
	Cookbook T/C Oven
	WPL LIT3188573
	WPL LIT3188262
	Installation Instructions
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper R.H.
6	Side Wrapper L.H.
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	WPL 3185086
14	WP3184533 Whirlpool Range Light Lens Gasket
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	WPL 310662
33	Screw (3)
33	Latch, Mechanism
34	Switch, latch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Screw
38	Knob, Latch Handle
39	Switch, Door
40	WPL 3185197
45	Screw (3)
45	Sensor, Heat
52	Panel, Back
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
56	WP488729 Whirlpool Refrigerator Door Screw
56	WPL 3149328
56	Cover, Rear
56	WPL 310435
56	WPL 310433
56	WPL 3188435
