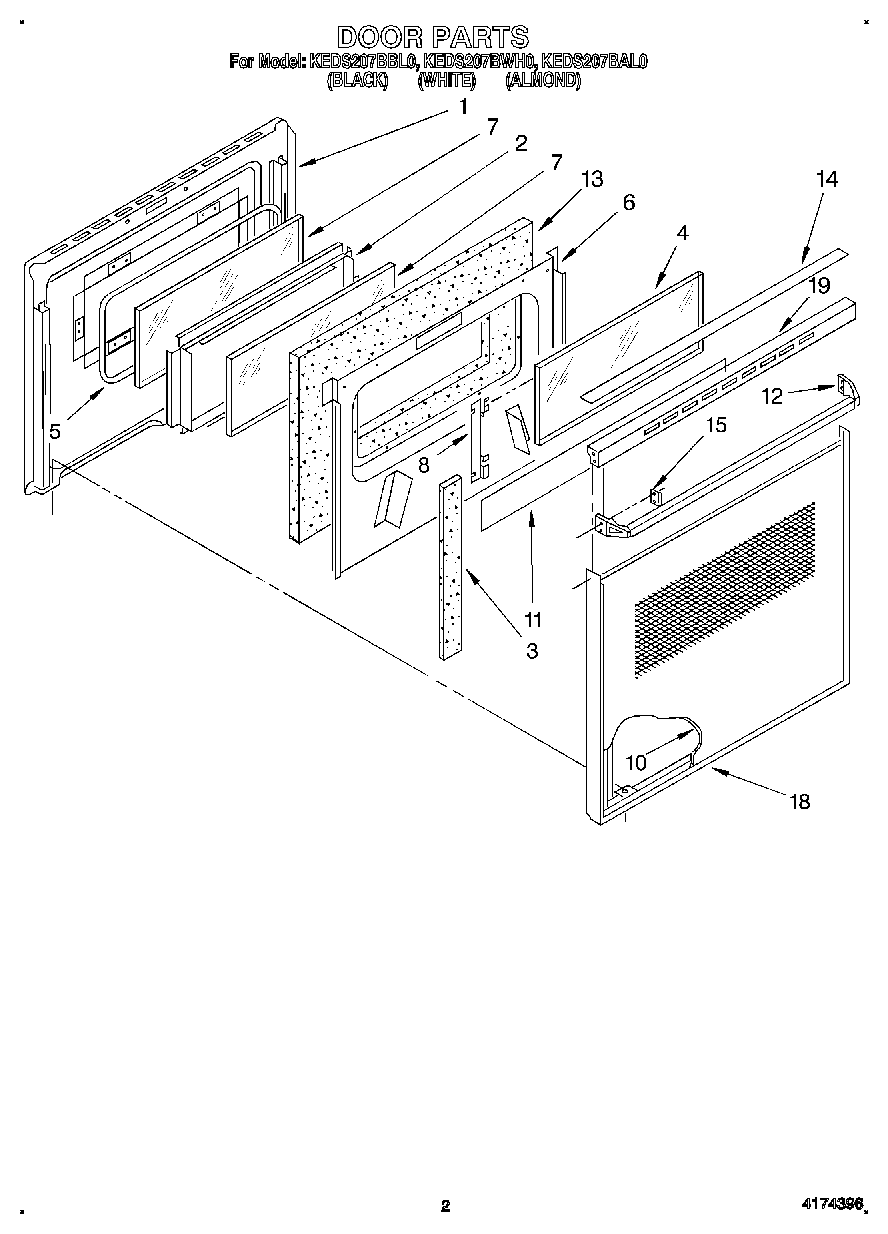

KEDS207BBL0 02 – DOOR

Products

PositionProduct
1Liner, Door
2Frame, Inner
3Seal, Flange (2)
4Screw
4Glass, Clear
5Seal, Door
6Screw
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
10Glass, Panel (Almond Model)
10Glass, Panel (Black Model)
10Glass, Panel (White Model)
11Foil, Door
12Handle, Door (Black)
12Handle, Door (White)
12Handle, Door (Almond)
12WP355515 Whirlpool Screw
13Cap, Top Door (Almond Model)
14Cap, Top
15Clip, Mtg (2)
18Screw
18Frame, Door
19Back Splash (Screw (4) 10AB x 1/2“)
19Top, Door (White Model)
19Top, Door (Black Model)
