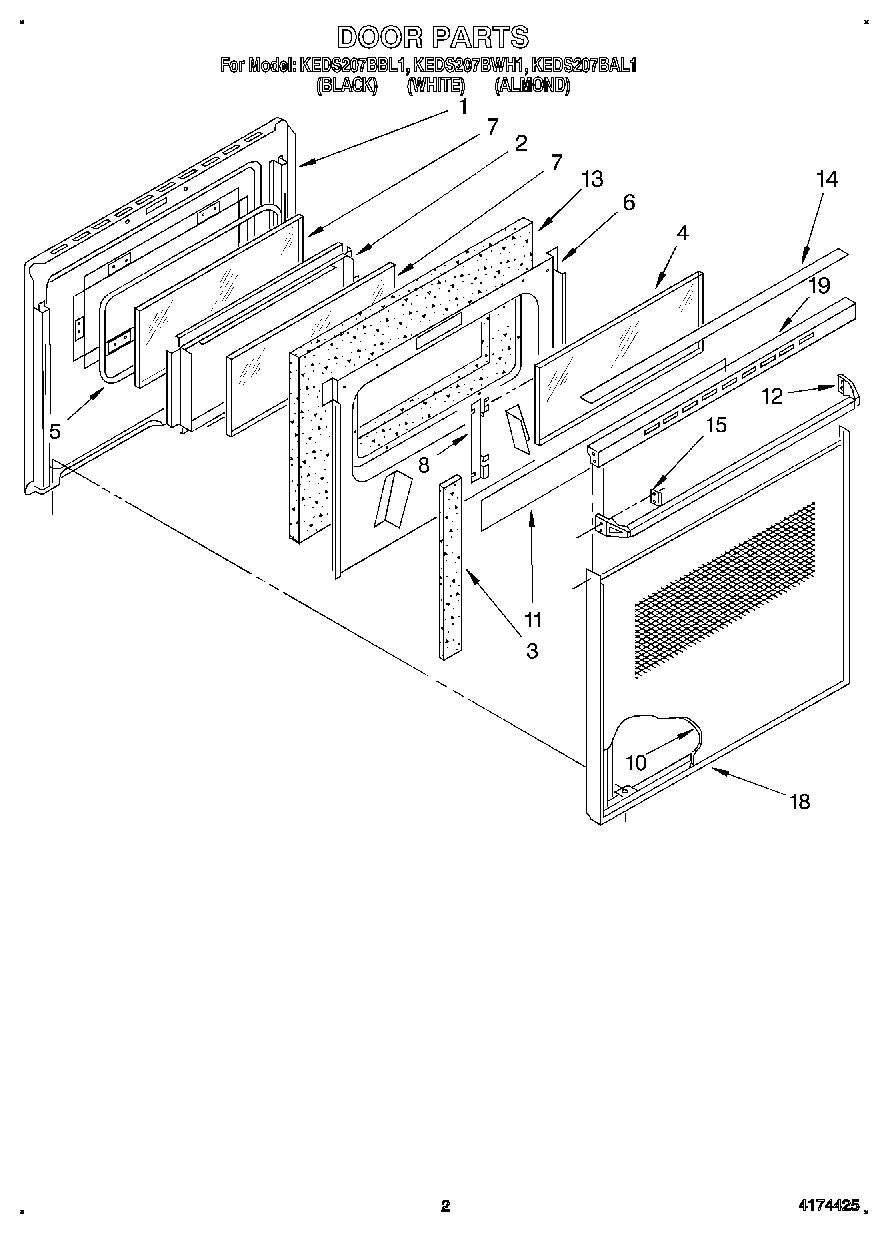

KEDS207BWH1 02 – DOOR

Products

PositionProduct
1Liner, Door
2Frame, Inner
3Seal, Flange (2)
4Screw
4Glass, Clear
5Seal, Door
6Retainer,
6Screw
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
10Glass, Panel (Almond Model)
10Glass, Panel (White Model)
10Glass, Panel (Black Model)
11Foil, Door
12WP355515 Whirlpool Screw
12Handle, Door (Almond)
12Handle, Door (Black)
12Handle, Door (White)
13Insulation, Door
14Cap, Top
15Clip, Mtg (2)
18Screw
18Frame, Door
19Back Splash (Screw (4) 10AB x 1/2“)
19Top, Door (Black Model)
19Top, Door (White Model)
