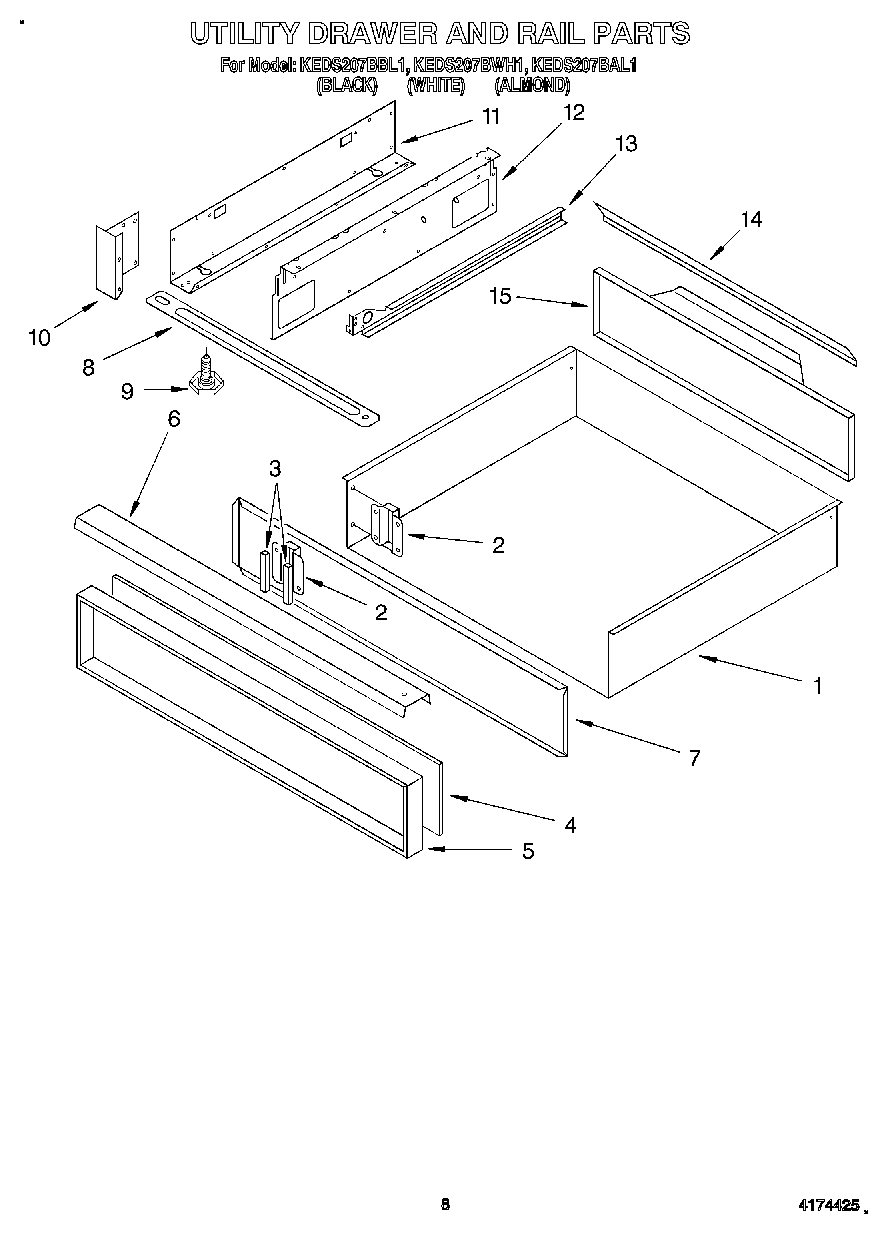

KEDS207BWH1 06 – UTILITY DRAWER AND RAIL

KEDS207BWH1 06 – UTILITY DRAWER AND RAIL

Written by

in

KEDS207BWH1 06 – UTILITY DRAWER AND RAIL

Products

PositionProduct
1Drawer, Utility
2Bracket, Mounting
3Seal, Foam (4)
4Glass, Drawer Front (White)
4Glass, Drawer Front (Almond)
4Glass, Drawer Front (Black)
5Frame, Outer
5Fastener (2)
6Handle, Drawer (White)
6Handle, Drawer (Black)
6Handle, Drawer (Almond)
6WP355515 Whirlpool Screw
6Screw
7Panel, Back
8Bracket
9WPW10058460 Whirlpool Appliance Levelling Leg
10Cap, Front (Left Hand)
10Cap, Front (Right Hand)
11Support, Outer Drawer
12Support, Inner Drawer
13Track, Drawer (Left Hand)
13Track, Drawer (Right Hand)
14Baffle, Drip
15WP488729 Whirlpool Refrigerator Door Screw
15Panel, Back
