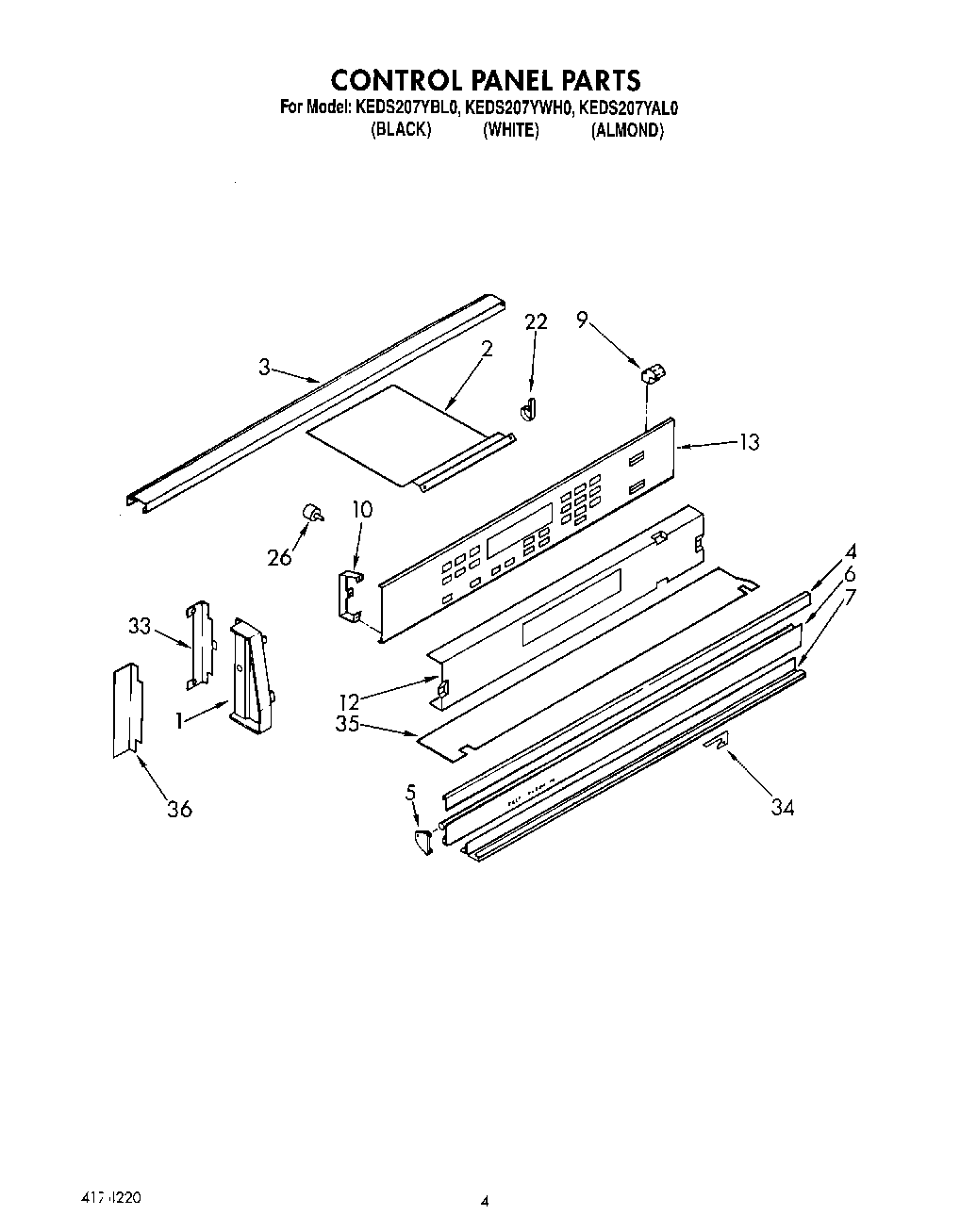

KEDS207YAL0 03 – CONTROL PANEL, OPTIONAL

KEDS207YAL0 03 – CONTROL PANEL, OPTIONAL

Written by

in

KEDS207YAL0 03 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	End Cap (Almond, RH)
1	End Cap (White, RH)
1	End Cap (Washer)
1	End Cap (Black, LH)
1	End Cap (White, LH)
1	End Cap, L.H. (Almond)
1	End Cap (Black, RH)
2	Shield, Heat
2	Screw,
3	Rail, Top (Bright Aluminum)
3	Rail, Top (Black)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent (Semi-Bright Aluminum)
6	Door, Vent
7	panel, top (screw, 10a x 3/8 (3))
7	Trim, Bottom
10	Bracket, Control Panel
12	Microcomputer
13	Panel, Control (Almond)
13	Panel, Control (Black)
13	Panel, Control (White)
22	WP308605 Whirlpool Refrigerator Clamp
22	Screw (3)
26	Bumper, Rubber (4)
33	Bracket, Support
34	Shield, Air
35	Screw (2)
35	Shield, Control
36	Trim, End Cap (Almond)
36	Wire (14 Ga. 150 c Green)
36	WPL 3185260
36	WPL 3183638
36	WPL 3183639
36	WPL 814128
36	WPL 3183640
36	Trim, End Cap (Black)
36	Trim, End Cap (White)
36	Golden Harvest
36	WPL 799832
36	350942 Whirlpool Spray Paint
36	WPL 72112
36	Platinum (Uncut)
36	Enamal, Toast (1 Qt. Uncut)
36	Paint, Spray (13 Oz.) (Platinum)
36	Toast
36	Golden Harvest (Uncut)
36	72113 Whirlpool Touch-Up Paint
36	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
36	Almond (Uncut)
36	Leveler (Thinner)
36	WP72107 Whirlpool Touchup
36	799344 Whirlpool Refrigerator Paint
36	72017 Whirlpool Appliance Touch-Up Paint White
36	350956 Whirlpool Spray Assembly
36	Wire, 25` Roll (Black 14 Ga.)
36	Wire, 25` Roll (Red 14 Ga.)
36	WPL 591014
36	WPL 350806
36	1
36	Wire (14 Ga. 200 c Brown)
36	18 Ga. 80~c Rating (Red)
36	Wire (12 Ga. 150 c Black)
36	Wire (14 Ga. 150 c Yellow)
36	Wire (14 Ga. 150 c Orange)
36	Wire (14 Ga. 150 c Brown)
36	Wire (14 Ga. 150 c Blue)
36	WP261869 Whirlpool Microwave Paint
36	242831 Whirlpool Oven Wire
36	WP482338 Whirlpool Refrigerator Adhesive
36	72032 Whirlpool Touch Up Paint Black
36	285006 Whirlpool Spray
36	Wire, 25“ Roll (White 14 GA.)
36	350930 Whirlpool White Spray Paint
