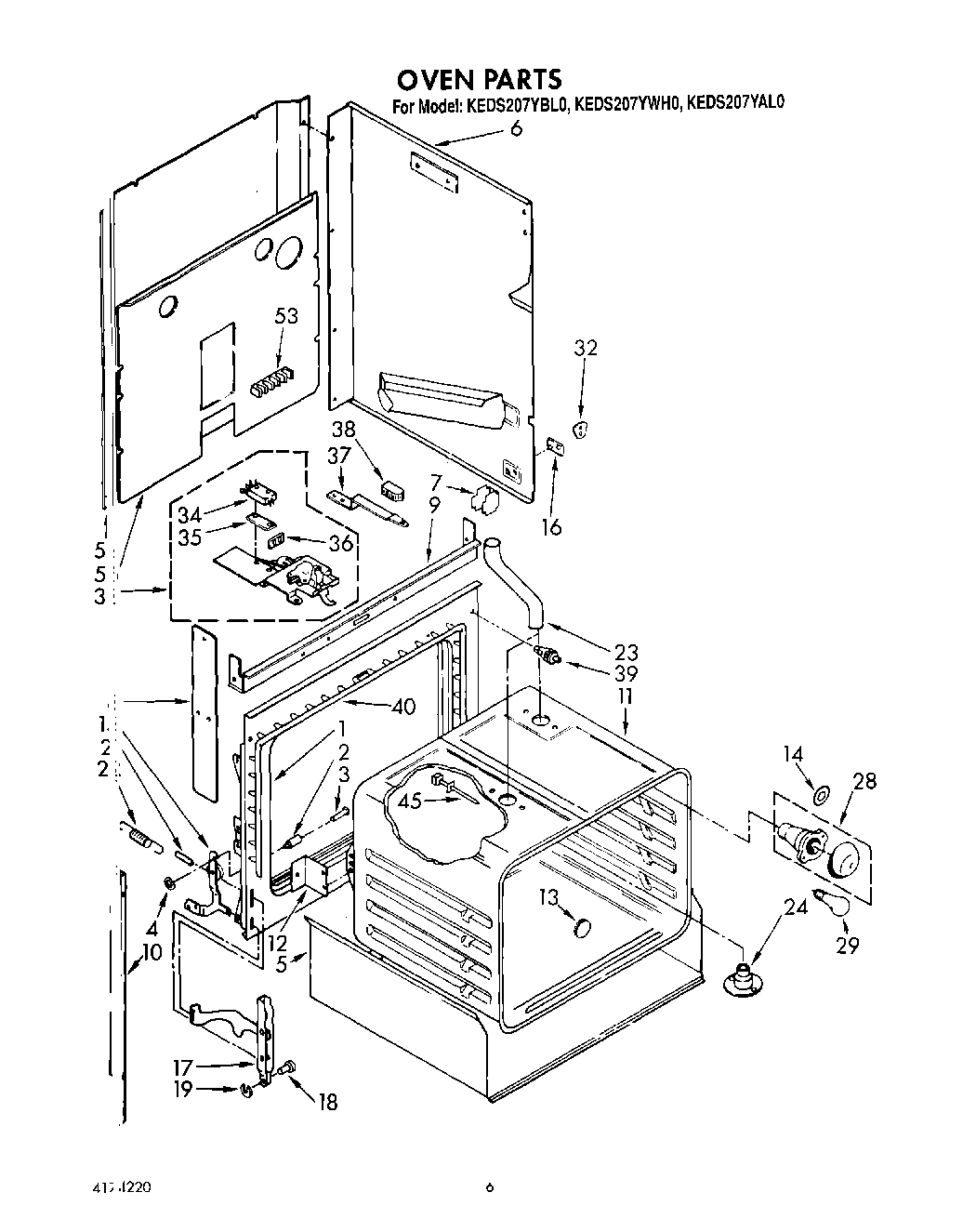

KEDS207YAL0 04 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3185220
	Cookbook T/C Oven
	WPL LIT3147398
	WPL LIT3182745
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Screw (2)
8	Baffle, Insulation
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven (30`` Pyro)
12	Bracket, Oven Mounting (2)
13	WPL 3185086
14	WP3184533 Whirlpool Range Light Lens Gasket
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
24	Eliminator, Smoke
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	WPL 310662
33	Screw (3)
33	WP488729 Whirlpool Refrigerator Door Screw
33	Latch, Mechanism
34	Screw
34	Switch, latch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Screw
37	Latch, Handle
38	Screw
38	Knob, Latch Handle
39	Switch, Door
40	WPL 3185197
45	Sensor, Heat
45	Screw (3)
52	Panel, Back
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
56	Insulation
56	Cover, Rear
56	WPL 3149328
56	WPL 310435
56	WPL 310433
