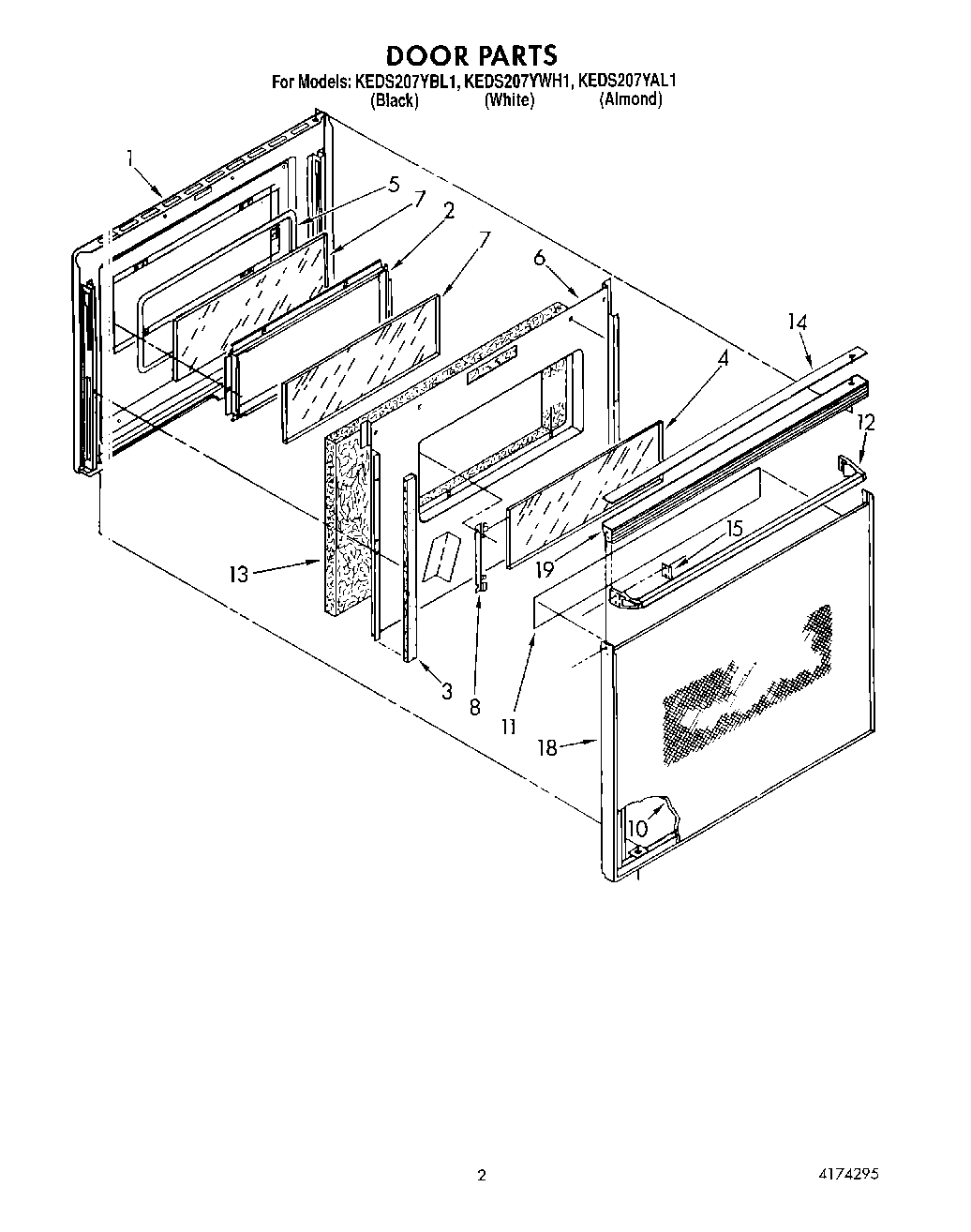

KEDS207YAL1 02 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
3	Screw
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door (White Model)
12	Handle, Oven Door (Black Model)
12	Handle, Door (Almond)
12	WP355515 Whirlpool Screw
13	Insulation, Door
14	Cap, Top
15	Clip, Mtg (2)
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
19	WP308685 Whirlpool Microwave Screw
