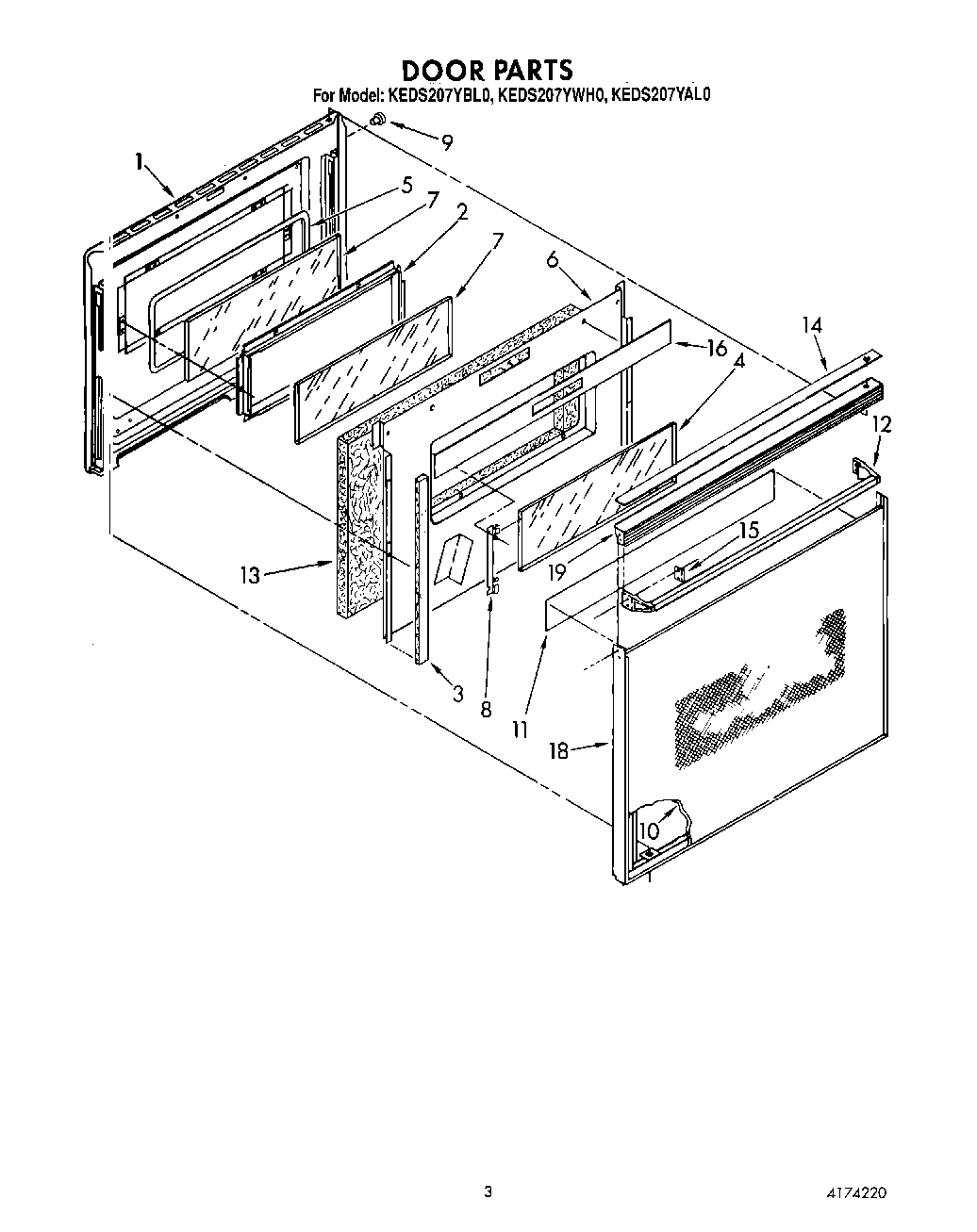

KEDS207YBL0 02 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door (Black Model)
12	Handle, Oven Door (White Model)
12	Handle, Door (Almond)
12	WP355515 Whirlpool Screw
13	Insulation, Door
14	Cap, Top
15	Clip, Mtg (2)
16	Sheild, Door
16	Screw,
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
19	WP308685 Whirlpool Microwave Screw
