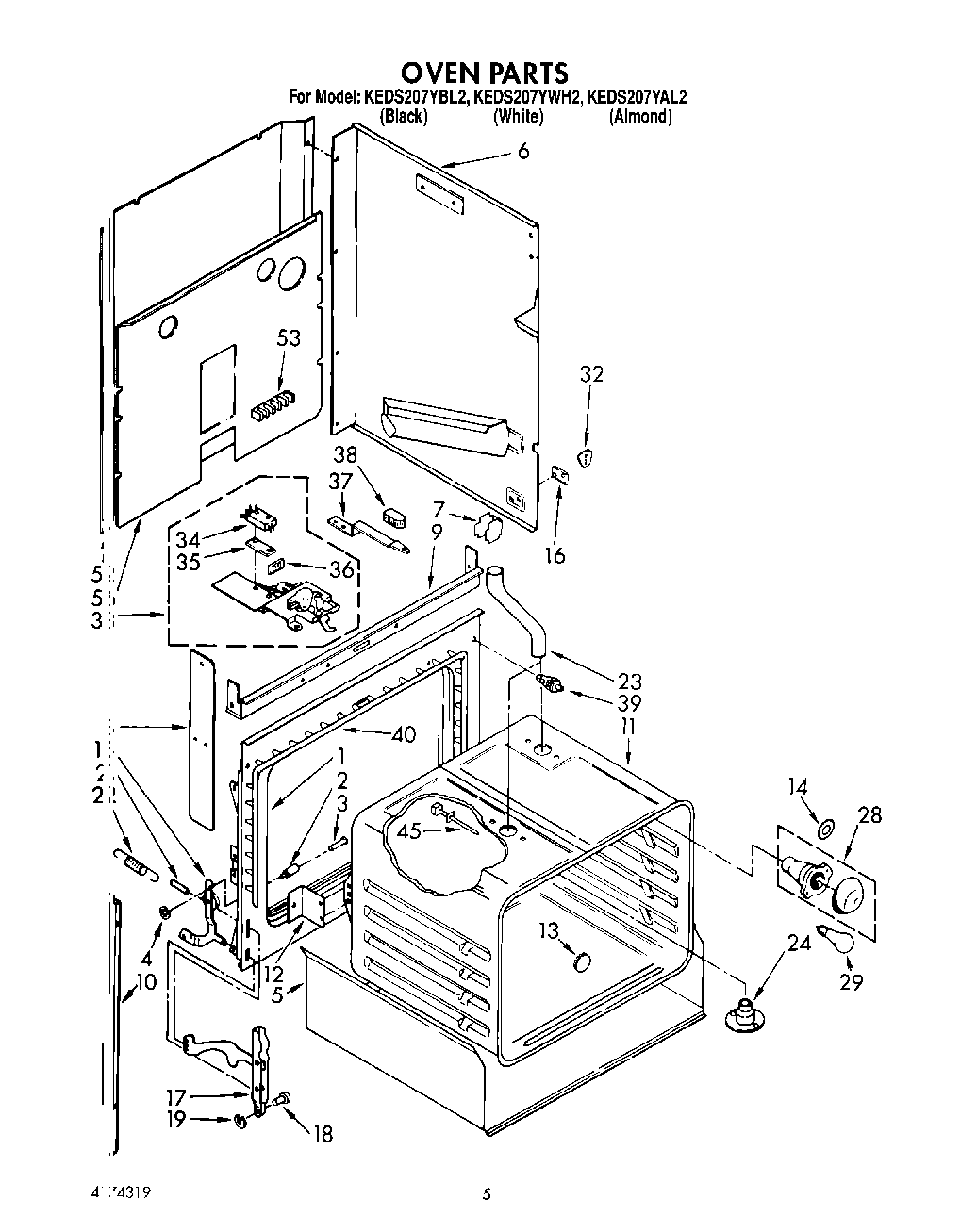

KEDS207YWH2 04 – OVEN, LITERATUREadmin2025-04-26T09:38:02+00:00KEDS207YWH2 04 – OVEN, LITERATURE
Products
| Position | Product |
|---|
| WPL LIT3182745 |
| Cookbook T/C Oven |
| Guide, Auto Set |
| WPL LIT3185646 |
| Installation Instructions |
| 1 | Frame, Front |
| 2 | Pin, Hinge Ear (2) |
| 3 | Snubber, Door (2) |
| 4 | Pushnut (2) |
| 5 | Insulation Tray |
| 6 | Side Wrapper L.H. |
| 6 | Side Wrapper R.H. |
| 7 | Support, Side Wrapper (4) |
| 8 | Baffle, Insulation |
| 8 | Screw (2) |
| 9 | Baffle, Top Insulation |
| 10 | Side Trim (Right Side) |
| 10 | Side Trim (Left Side) |
| 11 | Oven (30`` Pyro) |
| 12 | Bracket, Oven Mounting (2) |
| 13 | WPL 3185086 |
| 14 | WP3184533 Whirlpool Range Light Lens Gasket |
| 15 | Hinge, Ear (Left Side) |
| 15 | Hinge, Ear (Right Side) |
| 16 | Plate, Side Panel (2) |
| 16 | WP308544 Whirlpool Screw |
| 17 | Channel Arm (2) |
| 18 | WP307986 Whirlpool Hinge Pin |
| 19 | Retainer Ring (2) |
| 21 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 22 | WP308126 Whirlpool Door Spring |
| 23 | Tube, Vent Extension |
| 23 | SCREW |
| 24 | Eliminator, Smoke |
| 28 | W11594027 Whirlpool Range Oven Light Socket |
| 29 | RANGE ONLY 40W 120V APPL BULB |
| 32 | WPL 310662 |
| 33 | Screw (3) |
| 33 | Latch, Mechanism |
| 33 | WP488729 Whirlpool Refrigerator Door Screw |
| 34 | Switch, latch |
| 34 | Screw |
| 35 | Insulator, Switch |
| 36 | Shield, Latch |
| 36 | Screw |
| 37 | Latch, Handle |
| 37 | Screw |
| 38 | Screw |
| 38 | Knob, Latch Handle |
| 39 | Switch, Door |
| 40 | WPL 3185197 |
| 45 | Screw (3) |
| 45 | Sensor, Heat |
| 52 | Panel, Back |
| 53 | WP8203546 Whirlpool Terminal Block |
| 53 | WP112432 Whirlpool Nut Assembly |
| 53 | Screw (10-12 x .875) |
| 56 | Insulation |
| 56 | Cover, Rear |
| 56 | WPL 310435 |
| 56 | WPL 310433 |
| 56 | WPL 3149328 |
