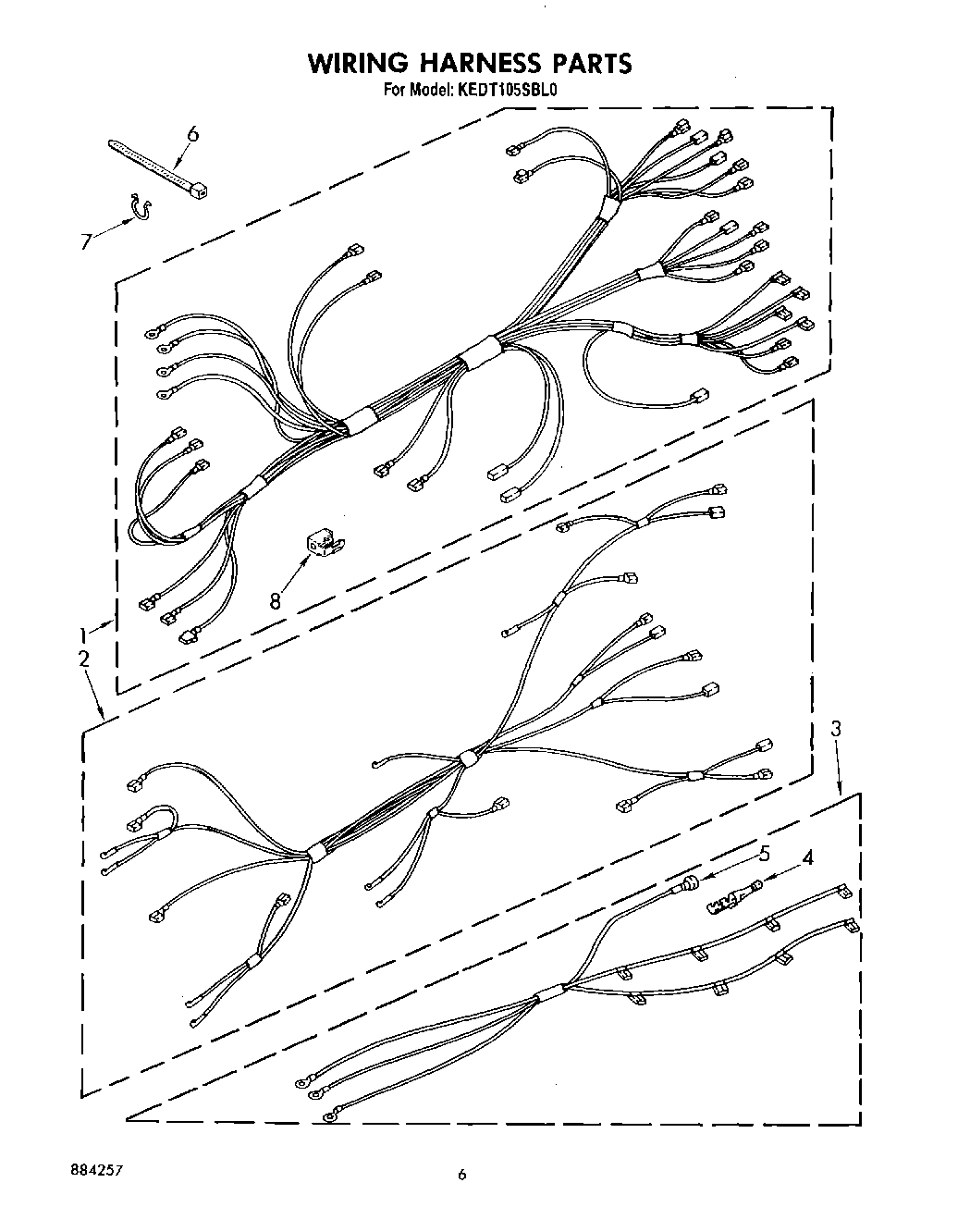

KEDT105SBL0 05 – WIRING HARNESS, LIT/OPTIONALadmin2025-04-26T09:37:32+00:00KEDT105SBL0 05 – WIRING HARNESS, LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Tech Sheet |
| Guide, Use & Care |
| Instructions, Installation |
| Book, Cooking Guide |
| 1 | Harness, Wire (Main) |
| 2 | harness, wire (surface unit) |
| 3 | Harness, Wire (Infinite Switch) |
| 4 | WP596797 Whirlpool Terminal |
| 5 | Plug |
| 6 | WPW10339879 Whirlpool Wire Tie |
| 7 | 16515 Whirlpool Clip |
| 8 | Grease |
| 8 | console |
| 8 | Wire, 25`` Roll (White 14 GA.) |
| 8 | Wire, 25` Roll (Red 14 Ga.) |
| 8 | Wire, 25` Roll (Black 14 Ga.) |
| 8 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 8 | WPW10208653 Whirlpool Insulation |
| 8 | Rotisserie Kit |
| 8 | Adapter, Terminal |
| 8 | 1 |
| 8 | 242831 Whirlpool Oven Wire |
| 8 | Wire (14 Ga. 150 c Blue) |
| 8 | Wire (14 Ga. 150 c Brown) |
| 8 | Wire (14 Ga. 150 c Green) |
| 8 | Wire (14 Ga. 150 c Orange) |
| 8 | Wire (14 Ga. 150 c Yellow) |
| 8 | Touch-Up Oven (1 Oz.) |
| 8 | 18 Ga. 80~c Rating (Red) |
| 8 | Wire (14 Ga. 200 c Brown) |
| 8 | Wire (12 Ga. 150 c Black) |
