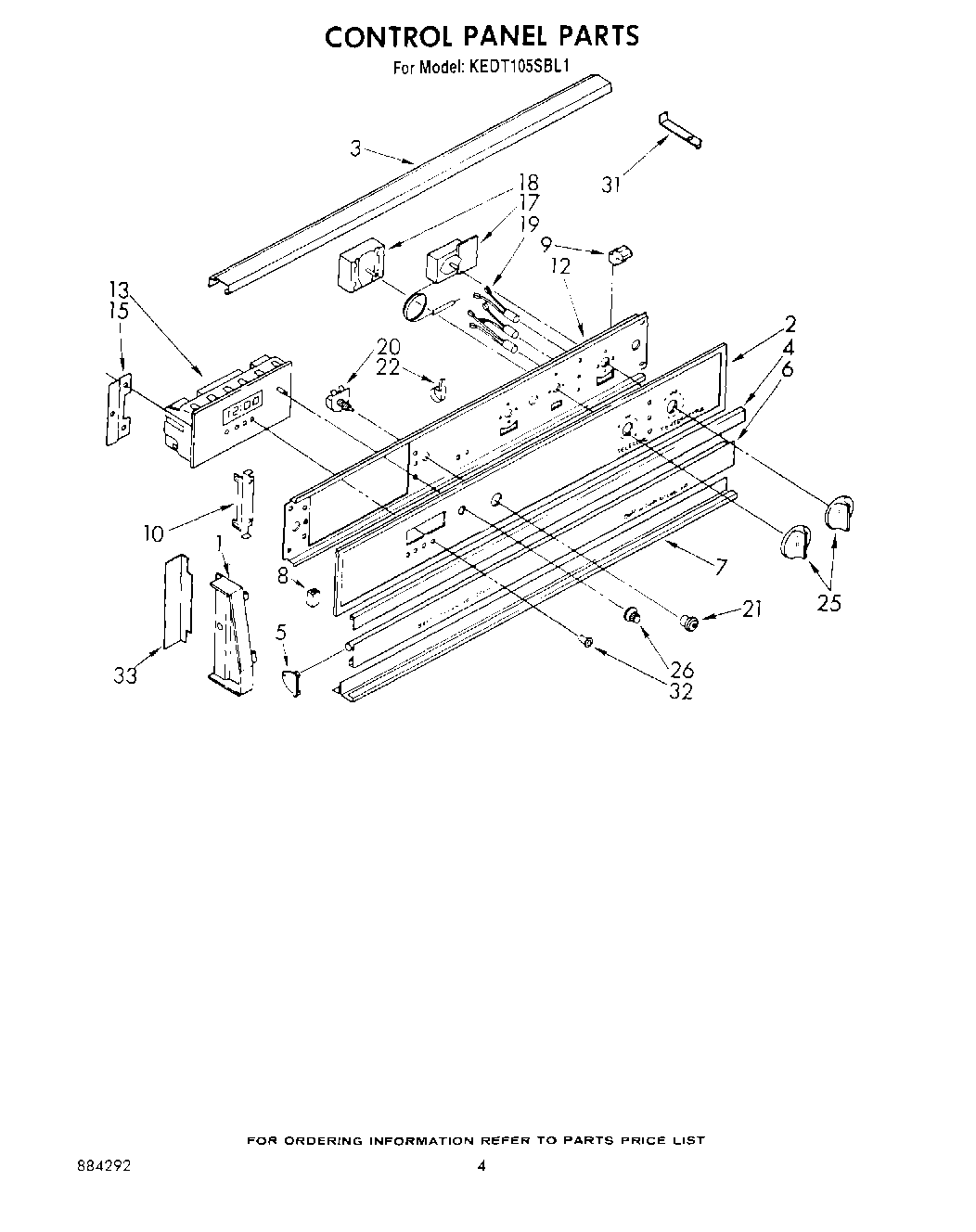

KEDT105SBL1 03 – CONTROL PANELadmin2025-04-26T09:36:57+00:00KEDT105SBL1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap. L.H. (Black) |
| 1 | End Cap. L.H. (Black) |
| 2 | Control Panel, Glass |
| 3 | Rail, Top (Black) |
| 4 | Trim, Center |
| 5 | End Trim, Vent (Left Side) |
| 5 | End Trim, Vent (Right Side) |
| 6 | Door, Vent |
| 7 | Screw, 10-32 x 1/2 |
| 7 | Trim, Bottom |
| 8 | Rubber Channel (2) (Black Model Only) |
| 9 | Retainer, Glass (4) |
| 10 | Bracket, Control Panel (2) |
| 10 | WP488234 Whirlpool Air Conditioner Screw |
| 12 | Bracket, Control |
| 13 | Timer, Orbitron (Included No.14) |
| 15 | Bracket, Timer (2) |
| 17 | screw, 6-32 x 1/4 (2) |
| 17 | Thermostat, Oven Pyro |
| 18 | Switch, Selector |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 19 | Indicator Light (4) |
| 20 | Lockwasher |
| 20 | Switch, Oven Light |
| 21 | Bezel Switch (1) |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 25 | Knob, Control (3) |
| 26 | Knob, Bit Generator (Black) |
| 31 | WP965173 Whirlpool Dishwasher Screw |
| 31 | Bracket, Control |
| 32 | WPL 313958 |
| 33 | WPL 314246 |
