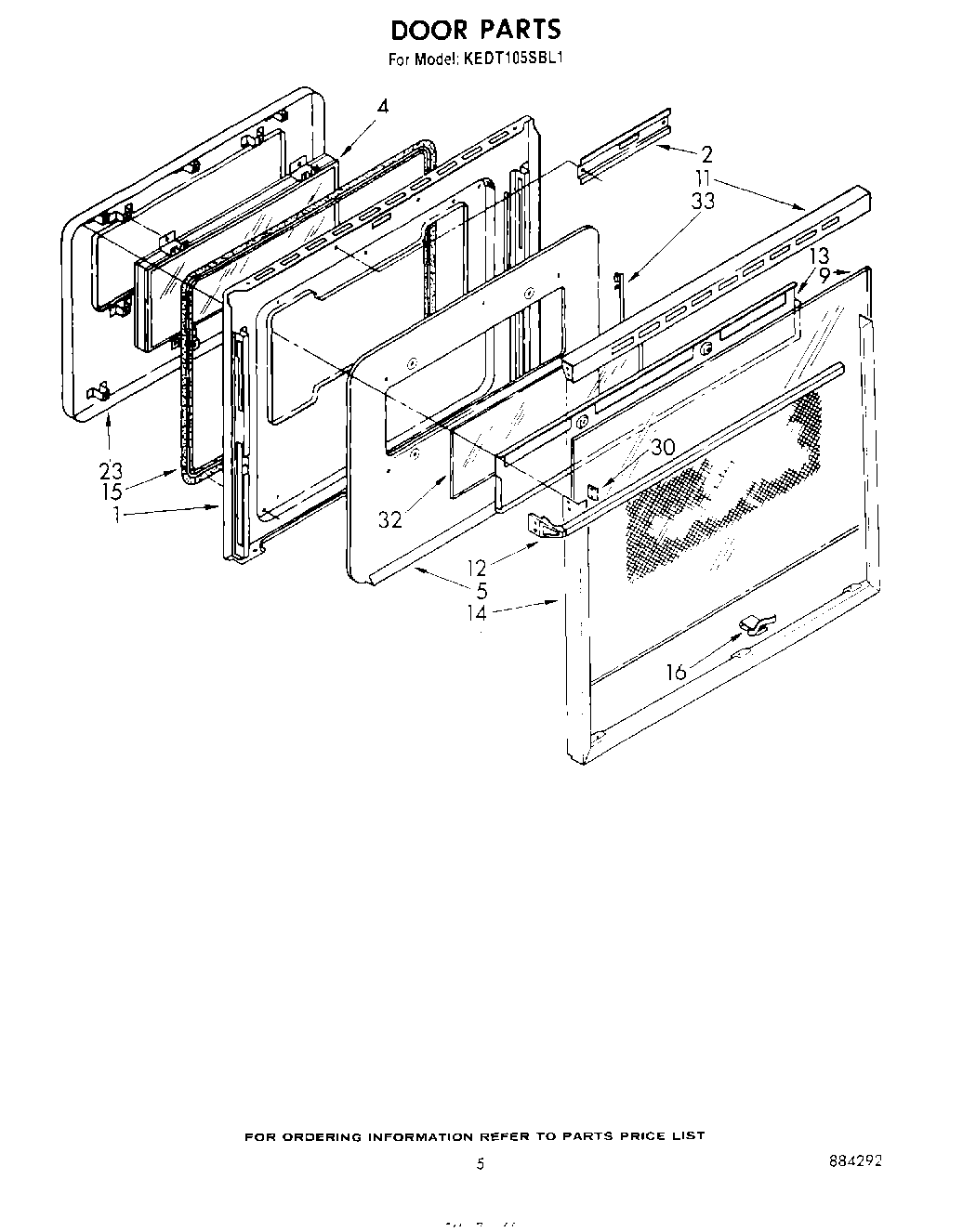

KEDT105SBL1 04 – DOOR

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Screw
2	Channel, Latch
4	Window Package
5	Retainer, Insulation
9	Glass, Outer
11	Top, Door Frame
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
13	Baffle, Heat
13	WP90296 Whirlpool Clip
14	Screw, 10A x 1/2 (2) (Black)
14	Frame, Door
15	Seal, Fiberglass
16	Clip, Glass (10)
23	Panel, Inner
30	Clip (2)
32	Glass (6.81“ x 18.31“)
33	Retainer, Glass (2)
