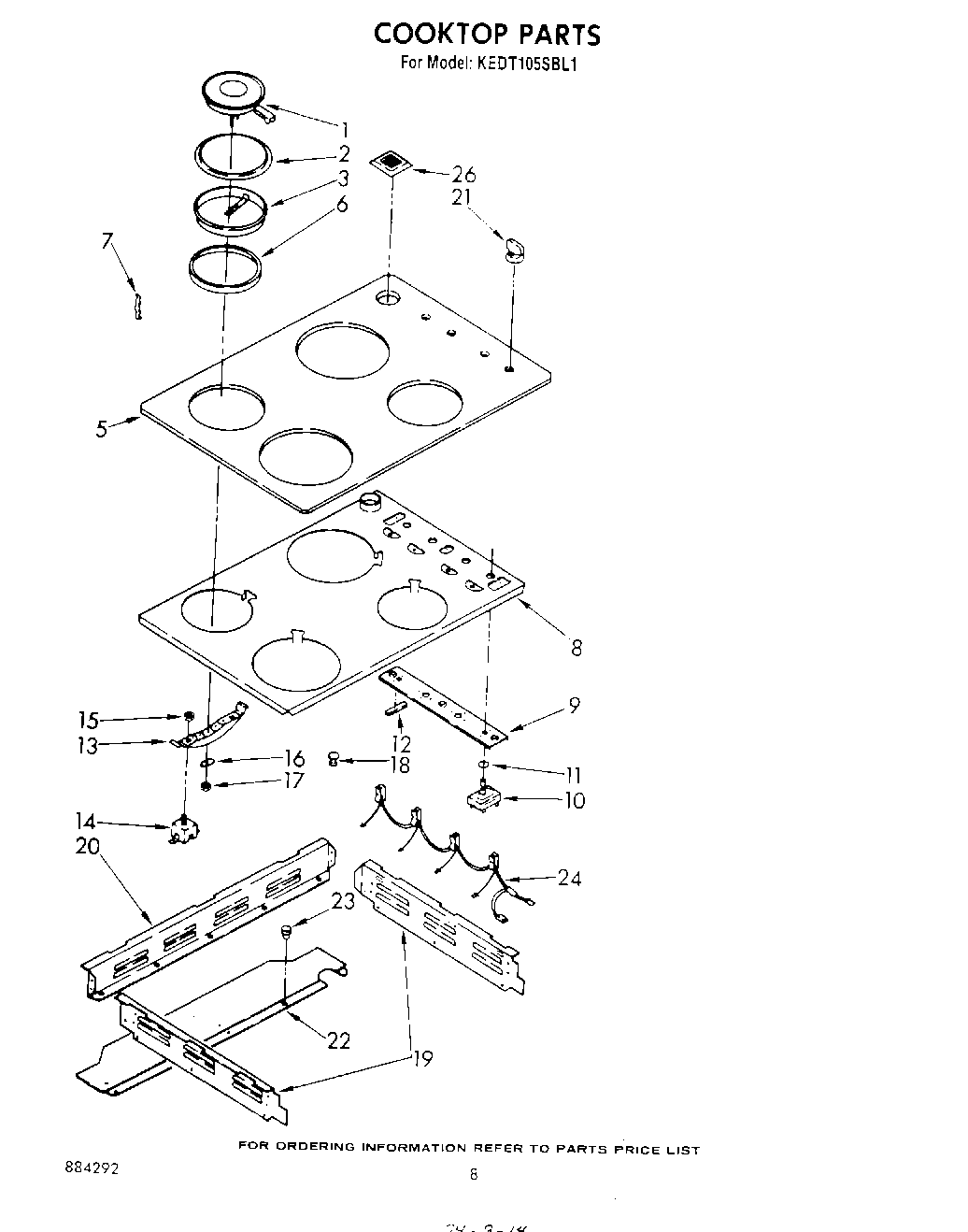

KEDT105SBL1 06 – COOKTOP

Products

Position	Product
1	WP3147132 Whirlpool Surface Element
1	WP3147131 Whirlpool Surface Element
2	ring, intermediate (2) (8“)
2	Ring, Intermediate (2) (6“)
3	gasket, ring (2.0 KW)
3	gasket, ring (1.5 KW)
5	glass, top
6	seal (2) (6“)
6	Seal (2) (8“)
7	Hook, Seal (4)
8	Plate, Backup
9	Bracket, Switch
9	Screw,
10	switch, infinite (8“)
10	Switch, Infinite (6“)
10	WP486579 Whirlpool Air Conditioner Screw
11	Seal, Switch Shaft (2)
12	Tape, Foam
13	bracket, element (1.5 KW)
13	bracket, element (2.0 KW)
14	Protector (4)
15	Nut, Metric
16	Spring, Leaf
17	hex nut (8)
18	Lens (4)
19	Rail, Support (R.H.)
19	Rail, Support (L.H.)
20	Rail, Back, Support (2)
21	Knob, Control (3)
22	Panel, Drawer (Screw, 8-32 (3))
22	Cover, Top Rear
23	WPL 258109
24	indicator, light
26	Cover, Vent
