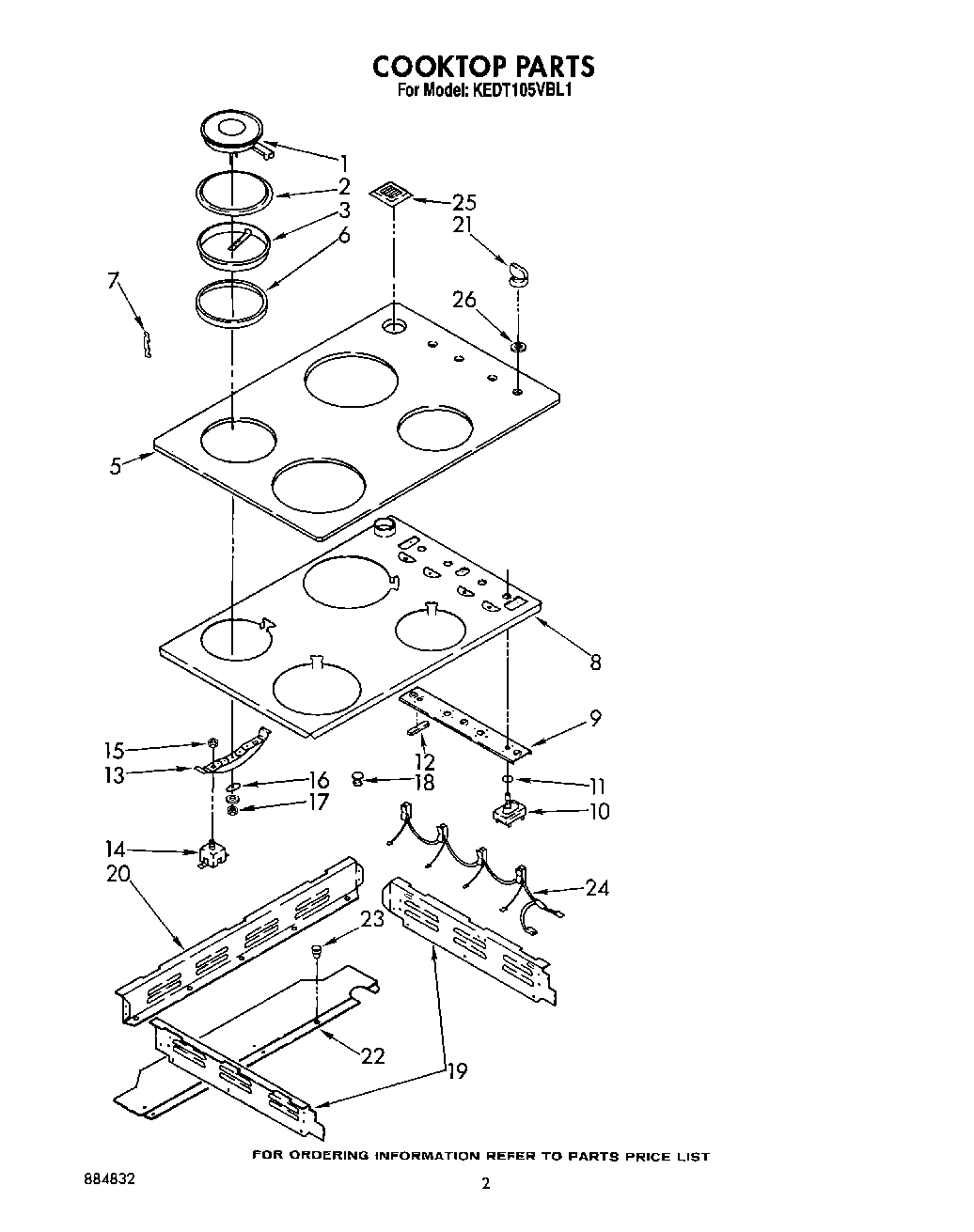

KEDT105VAL1 02 – COOKTOP

Products

Position	Product
1	WP3147131 Whirlpool Surface Element
1	WP3147132 Whirlpool Surface Element
2	Ring, Intermediate (Almond 8“)
2	Ring, Intermediate (White 6“)
2	Ring, Intermediate (White 8“)
2	ring, intermediate (2) (8“)
2	Ring, Intermediate (2) (6“)
2	Ring, Intermediate (Almond 6“)
3	gasket, ring (1.5 KW)
3	gasket, ring (2.0 KW)
5	Glass, Top
5	Glass Top (White)
5	Glass Top (Almond)
6	8“ Seal (2)
6	6“ Seal (2)
7	Seal, Hook
8	Plate, Backup
9	Screw,
9	Bracket, Switch
10	Switch, Infinite (Use W/1400W Left Rear Burner)
10	Switch, Inifinite (Front Burner (Green Shaft))
10	WP486579 Whirlpool Air Conditioner Screw
11	Seal, Switch Shaft (2)
12	Tape, Foam
13	bracket, element (2.0 KW)
13	bracket, element (1.5 KW)
14	Thermostat (2)
15	Nut, Metric
16	Spring, Leaf
16	Washer, Flat (4)
17	hex nut (8)
18	Lens (4)
19	Rail, Support (R.H.)
19	Rail, Support (L.H.)
20	Rail, Back, Support (2)
21	Knob, Control
22	Cover, Top Rear
22	WP488729 Whirlpool Refrigerator Door Screw
23	WPL 258109
24	Indicator, Light
25	Cover, Vent
26	Seal, Infinate Switch (4)
