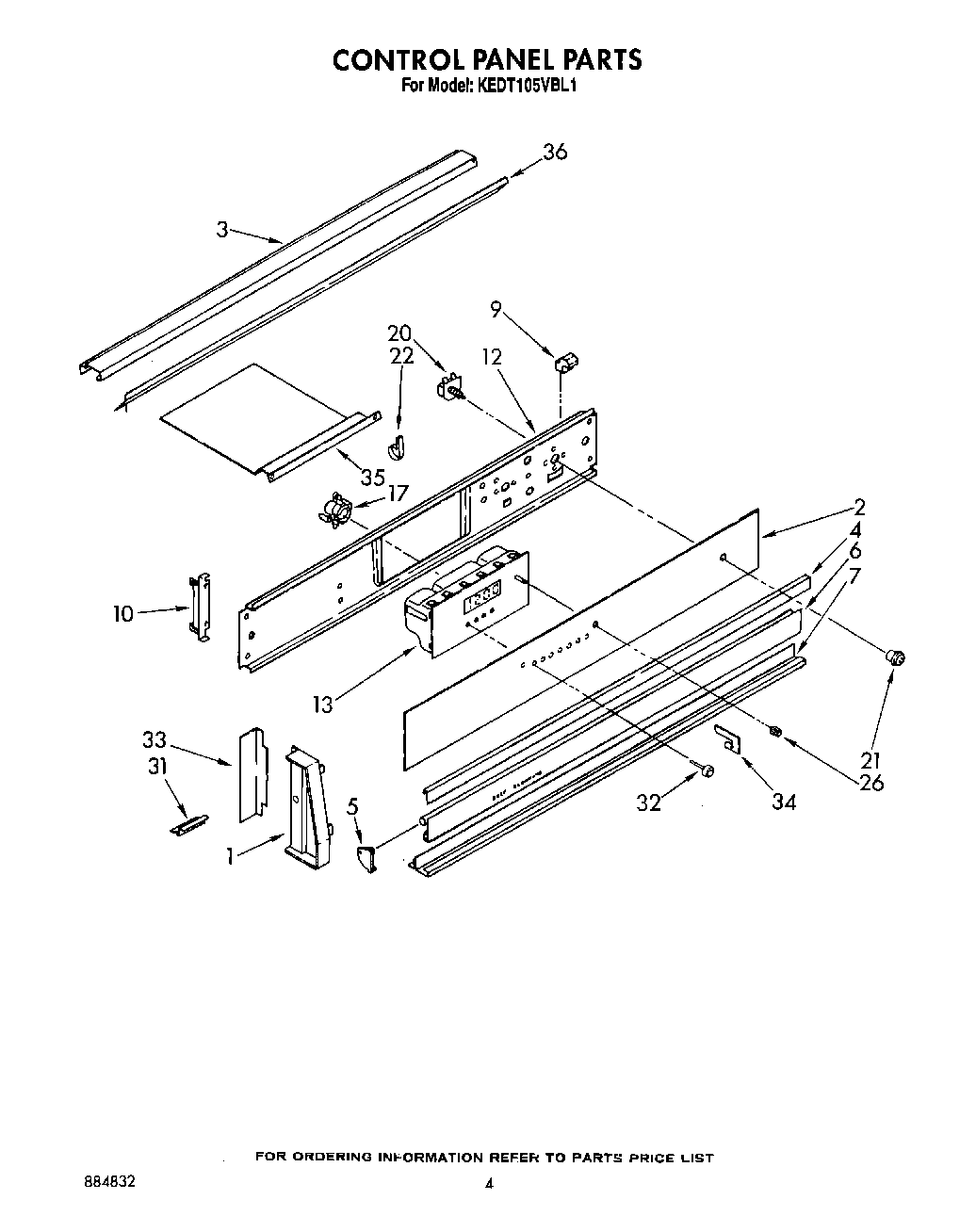

KEDT105VAL1 04 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Tech Sheet
	Guide, Use & Care
	Cookbook
	WPL LIT884832
	Instructions, Installation
1	End Cap (Washer)
1	End Cap. L.H. (Black)
1	End Cap, L.H. (Almond)
1	End Cap. L.H. (Black)
1	End Cap, L.H. (White)
1	End Cap. L.H. (White)
1	End Cap, L.H. (Almond)
2	Glass, Control Panel (Almond)
2	Glass, Control Panel (Black)
2	Glass, Control Panel (White)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
5	Trim, Vent Door (Brite Aluminum, L.H.)
6	Door, Vent (Semi-Bright Aluminum)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
12	Bracket, Control
13	Screw
13	Oven Control
17	Thermostat, Oven
17	WP313808 Whirlpool Screw
17	WP965173 Whirlpool Dishwasher Screw
20	Switch, Oven Light
20	White Model
20	Lockwasher
21	Bezel, Switch (White – Almond)
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
26	Kno
26	Knob, Bit Generator (Black)
26	Knob, Bit Generator (White)
31	Bracket, Control
32	WPL 3149780
32	WPL 3149781
32	WPL 3149782
33	Trim, End Cap (Almond)
33	Trim, End Cap (Black)
33	Trim, End Cap (White)
34	Shield, Air
35	WPL 309080
35	Screw (2)
35	Shield, Heat
36	Wire, 25“ Roll (White 14 GA.)
36	Touch-Up Oven (1 Oz.)
36	Wire (14 Ga. 150 c Brown)
36	Wire, 25` Roll (Black 14 Ga.)
36	Wire, 25` Roll (Red 14 Ga.)
36	Grease
36	1
36	Rail, Top (Seal, Backguard)
36	Wire (12 Ga. 150 c Black)
36	Rotisserie Kit
36	Wire (14 Ga. 150 c Yellow)
36	Wire (14 Ga. 150 c Orange)
36	Wire (14 Ga. 150 c Green)
36	18 Ga. 80~c Rating (Red)
36	Wire (14 Ga. 200 c Brown)
36	Wire (14 Ga. 150 c Blue)
36	242831 Whirlpool Oven Wire
36	console
