KEDT105VAL2 05 – OVEN, LIT/OPTIONAL

KEDT105VAL2 05 – OVEN, LIT/OPTIONAL

Written by

in

KEDT105VAL2 05 – OVEN, LIT/OPTIONAL

Products

Position	Product
	Cookbook
	Tech Sheet
	WPL LIT3147392
	WPL LIT4174111
	Guide, Use & Care

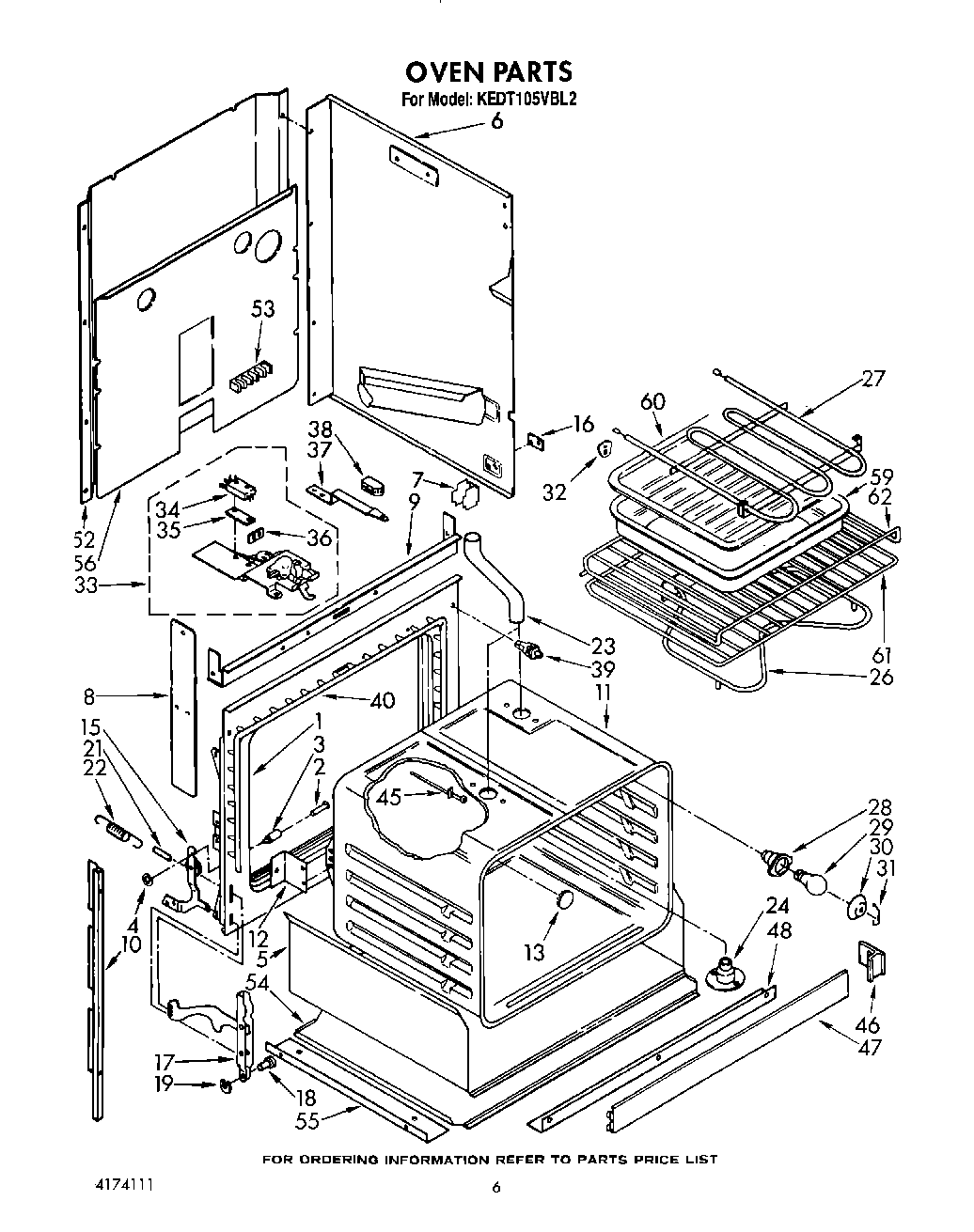

1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	Plug Button
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 311982
33	WP488729 Whirlpool Refrigerator Door Screw
33	Screw (3)
33	Latch Assembly
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
40	Seal, Door
45	Sensor, Heat
46	WPL 3149427
46	WPL 3149426
46	WPL 3149428
46	WPL 3149430
46	WPL 3149431
46	WPL 3149429
47	WPL 3149447
47	WPL 3149448
47	WPL 3149446
48	WPL 3149458
48	Back Splash (Screw (4) 10AB x 1/2“)
48	WP355515 Whirlpool Screw
52	Panel, Back (2)
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
62	WPL 310434
62	WPL 310433
62	WPL 3149328
