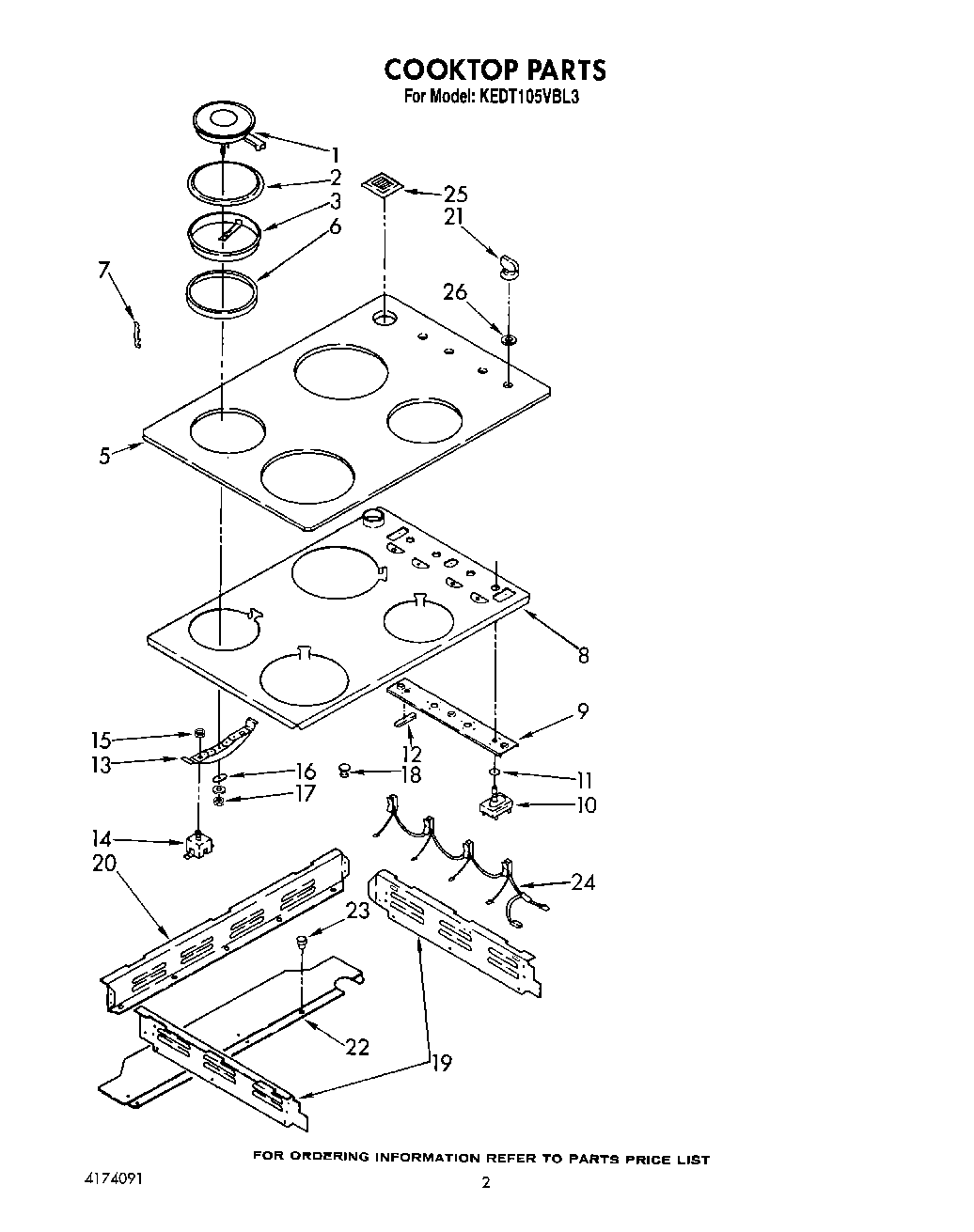

KEDT105VAL3 02 – COOKTOP

Products

Position	Product
1	WP3147132 Whirlpool Surface Element
1	WP3147131 Whirlpool Surface Element
2	Ring, Intermediate (2) (6“)
2	ring, intermediate (2) (8“)
2	Ring, Intermediate (Almond 6“)
2	Ring, Intermediate (White 6“)
2	Ring, Intermediate (White 8“)
2	Ring, Intermediate (Almond 8“)
3	gasket, ring (1.5 KW)
3	gasket, ring (2.0 KW)
5	Glass Top (Black)
5	Glass Top (White)
5	Glass Top (Almond)
6	6“ Seal (2)
6	8“ Seal (2)
7	Seal, Hook
8	Plate, Backup
9	Bracket, Switch
9	Screw,
10	WP486579 Whirlpool Air Conditioner Screw
10	Switch, Inifinite (Front Burner (Green Shaft))
10	Switch, Infinite (Use W/1400W Left Rear Burner)
11	Seal, Switch Shaft (2)
12	Tape, Foam
13	bracket, element (1.5 KW)
13	bracket, element (2.0 KW)
14	Thermostat (2)
15	Nut, Metric
16	Washer, Flat (4)
16	Spring, Leaf
17	hex nut (8)
18	Lens (4)
19	Rail, Support (L.H.)
19	Rail, Support (R.H.)
20	Rail, Back, Support (2)
21	Knob, Control (4) (Almond)
21	Knob, Control (4) (Black)
21	Knob, Control (4) (White)
22	Cover, Top Rear
22	WP488729 Whirlpool Refrigerator Door Screw
23	WPL 258109
24	Indicator, Light
25	Cover, Vent
26	Seal, Infinate Switch (4)
