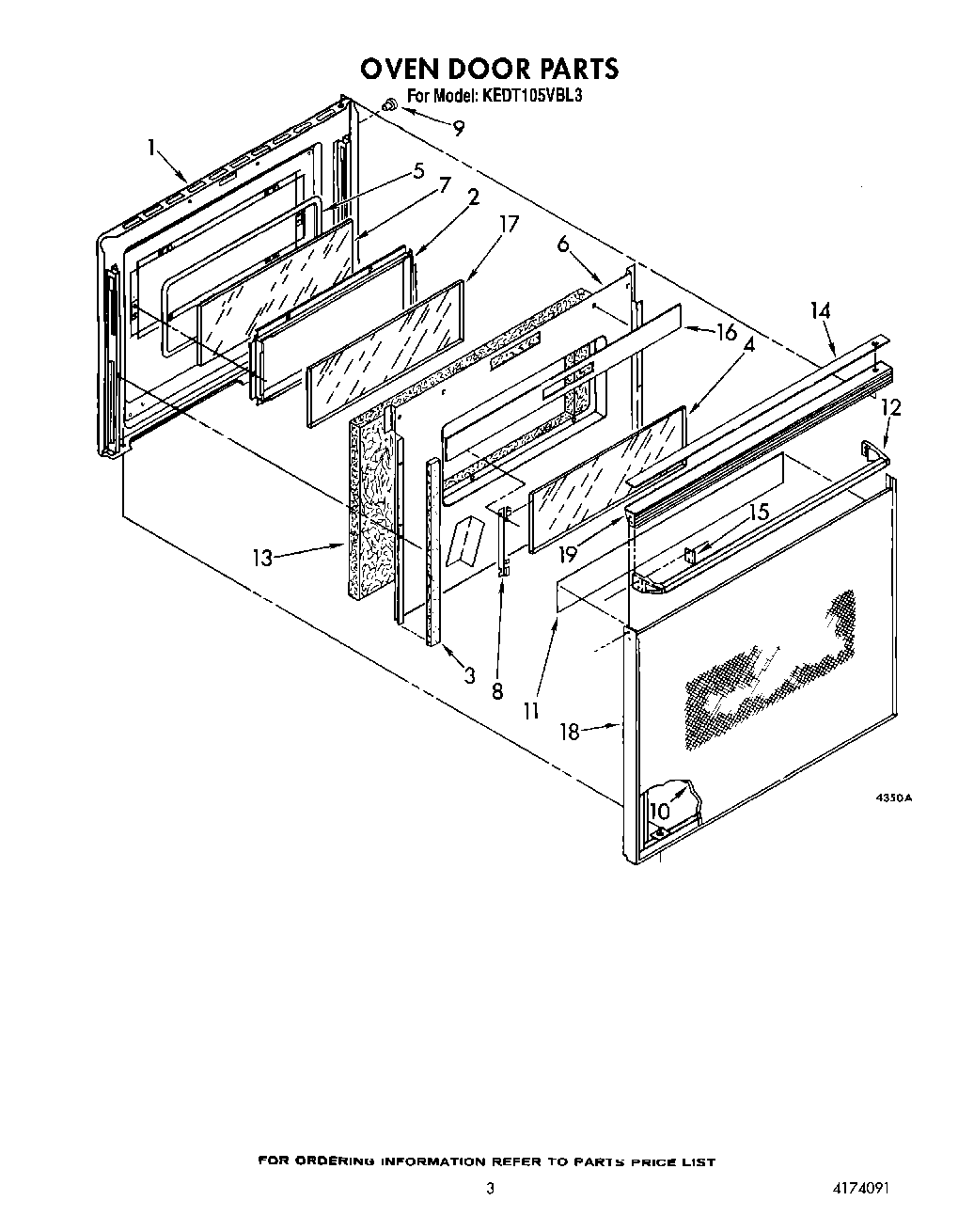

KEDT105VAL3 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
2Frame, Inner
3Screw
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (White)
10Glass, Panel (Black Model)
10Glass, Panel (White Model)
11Foil, Door
12Handle, Oven Door (White)
12Handle, Oven Door (Almond)
12Handle, Oven Door
13Insulation, Door
14Cap, Top
15Clip (2)
16Sheild, Door
18Frame, Door
18Frame (White)
18Frame (Almond)
19Top, Door Frame
19WP308685 Whirlpool Microwave Screw
19WP355515 Whirlpool Screw
19Door Top (Panoramic Grey)
