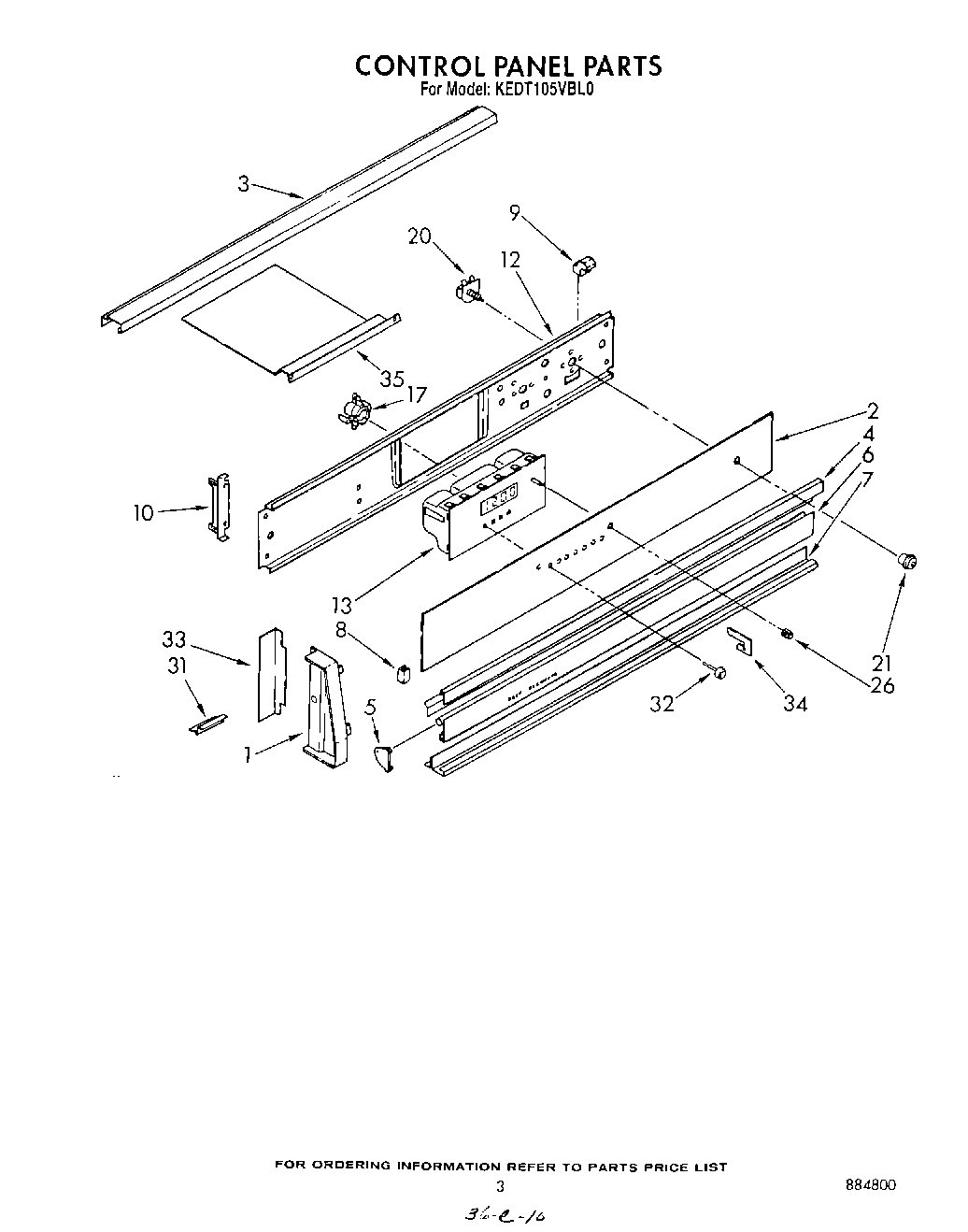

KEDT105VBL0 03 – CONTROL PANELadmin2025-04-26T09:37:56+00:00KEDT105VBL0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap (Washer) |
| 1 | End Cap. L.H. (Black) |
| 1 | End Cap, L.H. (White) |
| 1 | End Cap. L.H. (White) |
| 1 | End Cap, L.H. (Almond) |
| 1 | End Cap. L.H. (Black) |
| 1 | End Cap, L.H. (Almond) |
| 2 | Glass, Control Panel (Almond) |
| 2 | Glass, Control Panel (White) |
| 2 | Glass, Control Panel (Black) |
| 3 | Rail, Top (Black) |
| 4 | Trim, Center (Black) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent |
| 6 | Door, Vent (Semi-Bright Aluminum) |
| 7 | Trim, Bottom |
| 7 | Screw, 10-32 x 1/2 |
| 8 | Rubber Channel (2) (Black Model Only) |
| 9 | Retainer, Glass (4) |
| 10 | Bracket, Control Panel (2) |
| 10 | Screw (2) |
| 12 | Bracket, Control |
| 13 | Screw |
| 13 | Oven Control |
| 17 | WP313808 Whirlpool Screw |
| 17 | Thermostat, Oven |
| 20 | Switch, Oven Light |
| 20 | Lockwasher |
| 20 | White Model |
| 21 | WP965173 Whirlpool Dishwasher Screw |
| 21 | Bezel Switch (1) |
| 26 | Knob, Timer (1) |
| 31 | Bracket, Control |
| 32 | But |
| 33 | WPL 314246 |
| 33 | White |
| 33 | Almond |
| 34 | Shield, Air |
| 35 | Shield, Heat |
